Konami Concerto Crescent - P;N 331278 Assy, Deck, Main

SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-16
3-16
© 2018 Konami Gaming Inc. P/N 810352
CONCERTO CRESCENT
(Original Instructions)

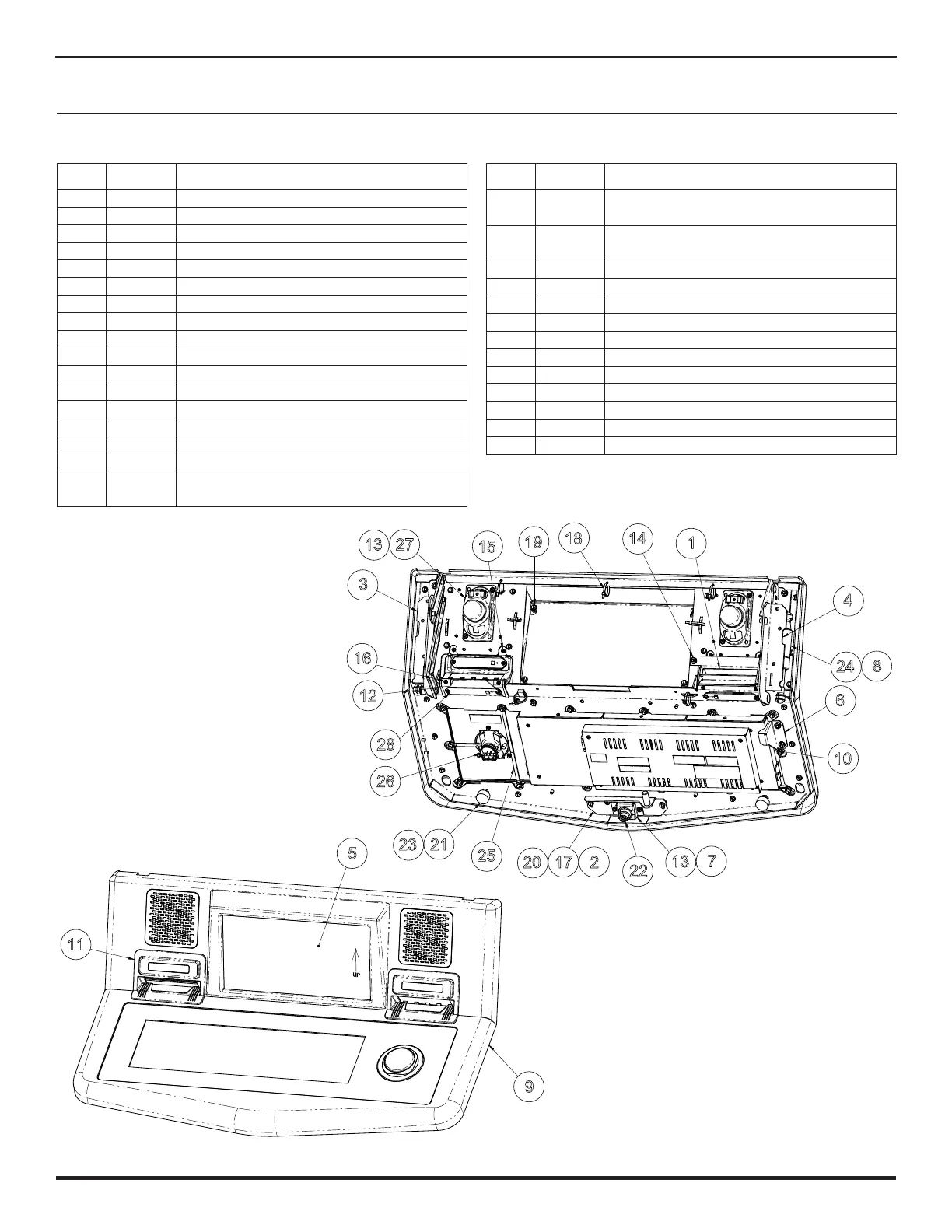

P/n 331278 assy, deck, Main
3
16
15
19
18
1
4
6
20
25
5
12
11
9
17
23
26
28
21
13
7
22
13
14
27
10
24
8
2
ITEM PART # DESCRIPTION
- 110891 HRNS, DECK, MAIN (NOT SHOWN)
- 110953 HRNS, PDM2, PLAY BUTTON 4 (NOT SHOWN)
1� 131091 ASSY, CHUTE, PRINTER
2� 131120 ASSY, WLDMNT, STRIKER
3� 131202 ASSY, HINGE, DECK, RIGHT
4� 131203 ASSY, HINGE, DECK, LEFT
5� 192811 PNL, PTM, BLANK, W/O COIN
6� 193080 ARM, SWITCH, DECK
7� 193401 BRKT, MTG, SPRING
8� 230118 BALL STUD, MODIFIED (4)
9� 310644 ASSY, DECK AND FRAME
10� 310959 ASSY, PNL, TOUCH DASH II
11� 331279 ASSY, BZL, BV/PTR (2)
12� 410774 GUIDE, BV CHUTE
13� 450014 NUT, HEX KEP, 4-40 (6)
14� 450016 NUT, HEX KEP, 8-32 (25)
15� 450107
SCREW, SEMS, PAN HEAD PHILLIPS, 4-40 X
1/4 (10)
ITEM PART # DESCRIPTION
16� 450108
SCREW, SEMS, PAN HEAD PHILLIPS, 4-40 X
3/8 (2)
17� 450117
SCREW, SEMS, PAN HEAD PHILLIPS, 8-32 X
3/8 (2)
18� 450410 CABLE TIE, 4” (7)
19� 450428 SCREW, TPG, HEX WSHR HD, 8-32 X �250 (4)
20� 450430 SCREW, TPG, HEX WSHR HD, 8-32 X �375 (2)
21� 450632 BUMPER, THREADED STUD, M6 (2)
22� 450633 SPRING, CONICAL
23� 450634 NUT, HEX JAM, M6 (2)
24� 450688 GAS SPRING, 27MM STROKE, 645N (2)
25� 490456 CLAMP, VINYL COATED, 3 1/2, BLACK (4)
26� 490917 BUTTON, ROUND
27� 530322 SPEAKER, RECT, 8 OHMS, 5 WATTS (2)
28� 530612 PCB, LIGHTING (2)
