OVERVIEW
This section includes consumable parts lists�
electrical coMPonents
The following table lists the required electrical components
for the Concerto Crescent�
ELECTRICAL COMPONENTS
PART # DESCRIPTION
490044 SWITCH, CHERRY, E79-30A
490046 SWITCH, OMRON, SBMIN, w/ROLLER ACTUATOR
490050 SWITCH, OMRON, SBMIN, w/LEVER ACTUATOR
490055 HOLDER, FUSE, 3453LF-1-010
490056 HOLDER, FUSE, KNOB, 3453LF1-020
490065 SENSOR, PHOTO, ALEPH
490465 SWITCH, ROCKER, MINI EURO STYLE, 240 VAC
490078 CORD, AC, 7�5’
490079 OUTLET, CONVENIENCE, 120 V
490289 SSR, I/O, POWER SUPPLY
490290 FILTER, NOISE, SNR
490459 OUTLET, CONVENIENCE, IEC
490460 HOLDER, FUSE, WITH KNOB, 3455HS2
490805 BTN, SM SQR, HALO
490806 BTN, RECT, HALO
490830 BUTTON, ROUND, HALO
490837 SUPPLY POWER, 12 VDC, 150W, 100-240 VAC
490838 SUPPLY POWER, 24 VDC, 300W, 100-240 VAC
Fuses
The following table lists the required fuses for the Concerto
Crescent�
FUSES
PART # DESCRIPTION
490033 FUSE, 2 A, S/B (3)
490034 FUSE, 5 A, S/B
490036 FUSE, 10 A, CERAMIC
490462 FUSE, 5 A, 5x20MM, IEC
490463 FUSE, 2�5 A, 5x20MM, IEC
490464 FUSE, 1 A, 5x20MM, IEC
Pcbs
The following table lists the PCBs for the Concerto Crescent�
PCBs
PART # DESCRIPTION
530364 PCB, K3-K3-SL, METER
530581 PCB, PODIUM2, KP3-IFB2
530582 PCB, PODIUM2, LED, PDM2-TOP1
530583 PCB, PODIUM2, LED, PDM2-TOP2
530584 PCB, PODIUM2, LED, PDM2-DISP1
530585 PCB, PODIUM2, LED, PDM2-DISP2
530588 PCB, PODIUM2, LED, PDM2-ELBOW
530589 PCB, PODIUM2, LED, PDM2-TOPPER
530590 PCB, PODIUM2, LED, PDM2-ICON
530591 PCB, PODIUM2, LED, PDM2-BELLY
530592 PCB, PODIUM2, LED, PDM2-DECK
530612 PCB, LIGHTING
board coMPonents

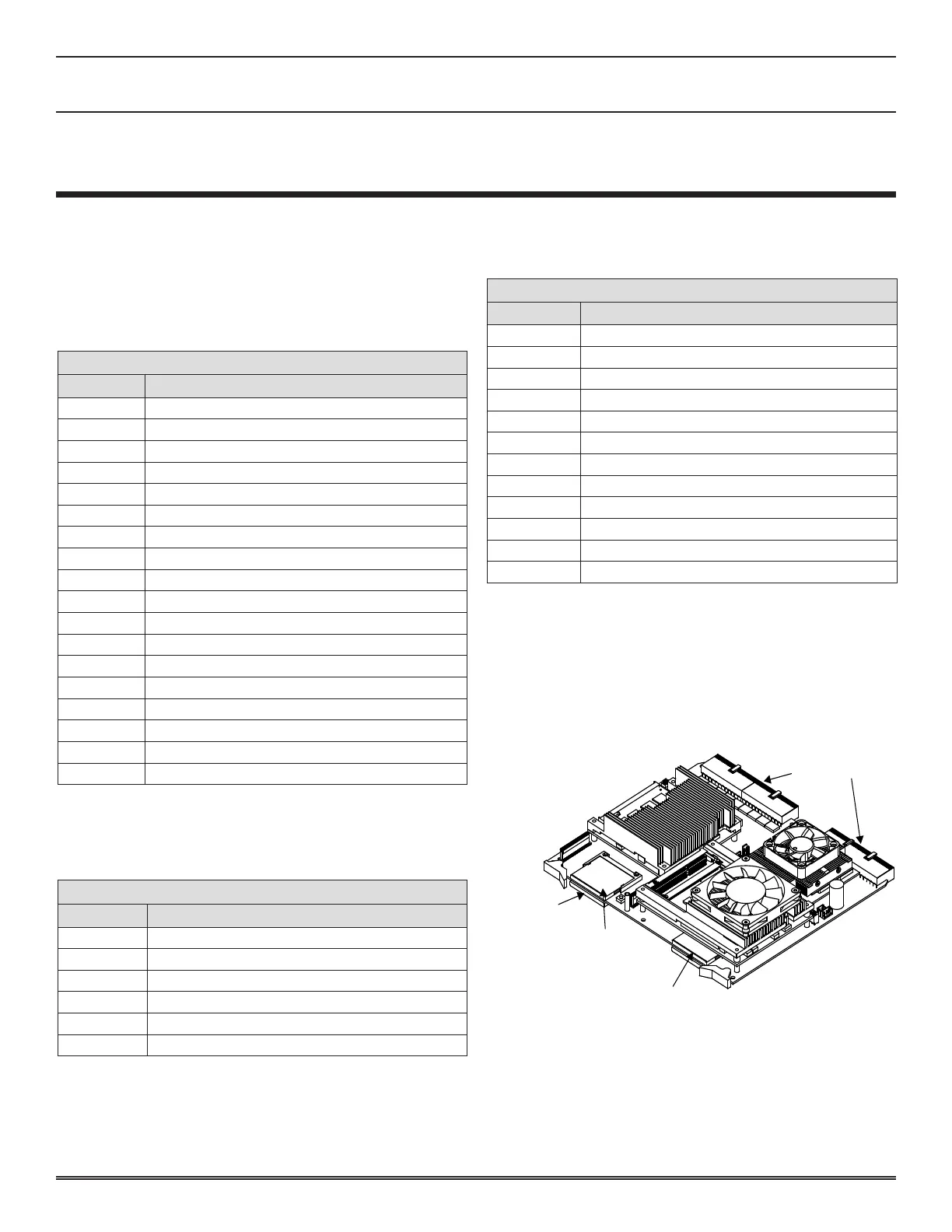

The following illustrations depict the main components on the
main PCBs used in the Concerto Crescent�
Pcb, kP3.5, MPu
System Compact
Flash Card
(Upper Side)
RAM Clear
Compact Flash
Card (Under Side)
Game Compact
Flash Card
(Upper Side)
Backplane Connectors
To Next Page
