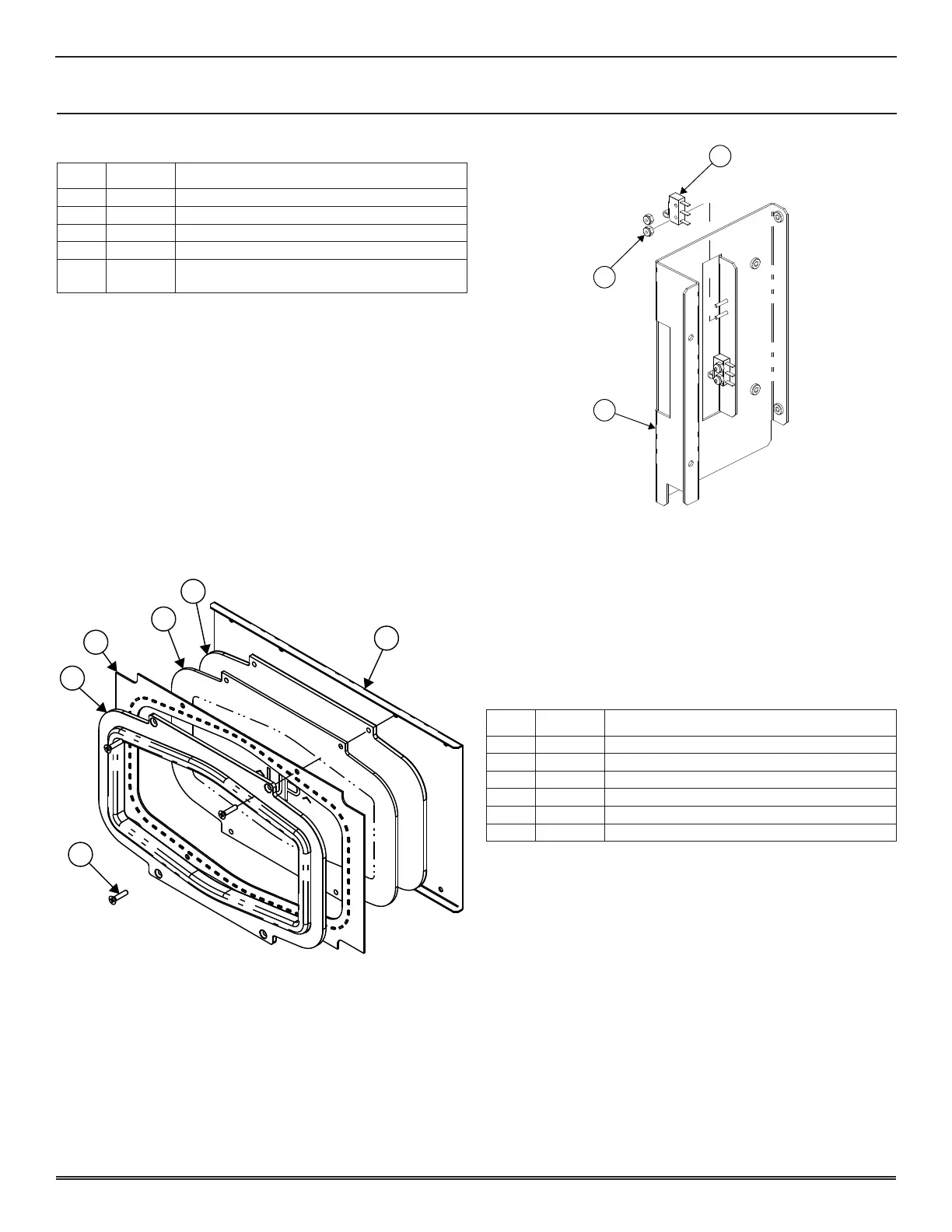

P/n 331328 assy, sW, JcM casHbox

ITEM PART # DESCRIPTION

- 110055 HRNS, BILL VALIDATOR SW 1, JCM

- 110056 HRNS, BILL VALIDATOR SW 2, JCM

1� 192921 BRKT, SW, CASH BOX

2� 450144 NUT, NYLOK, 2-56 (4)

3� 490046

SWITCH, OMRON, SBMIN, W/ROLLER

ACTUATOR (2)

P/n 310653 assy, logo, sub dr

ITEM PART # DESCRIPTION

1� 192726 PNL, MTG, LOGO, MAIN DR

2� 310615 ASSY, DIFF, LOGO, MAIN DR

3� 310616 ASSY, ELP, LOGO, MAIN DR

4� 410614 PLEX, GRAPHIC, MAIN DR LOGO

5� 450056 SCREW, FLAT HEAD, 8-32 X 3/4 (4)
