Konami Concerto Crescent - P;N 330920 Assy, Meter; P;N 331279 Assy, Bzl, Bv;Ptr

SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-23
3-23
© 2018 Konami Gaming Inc. P/N 810352
CONCERTO CRESCENT
(Original Instructions)

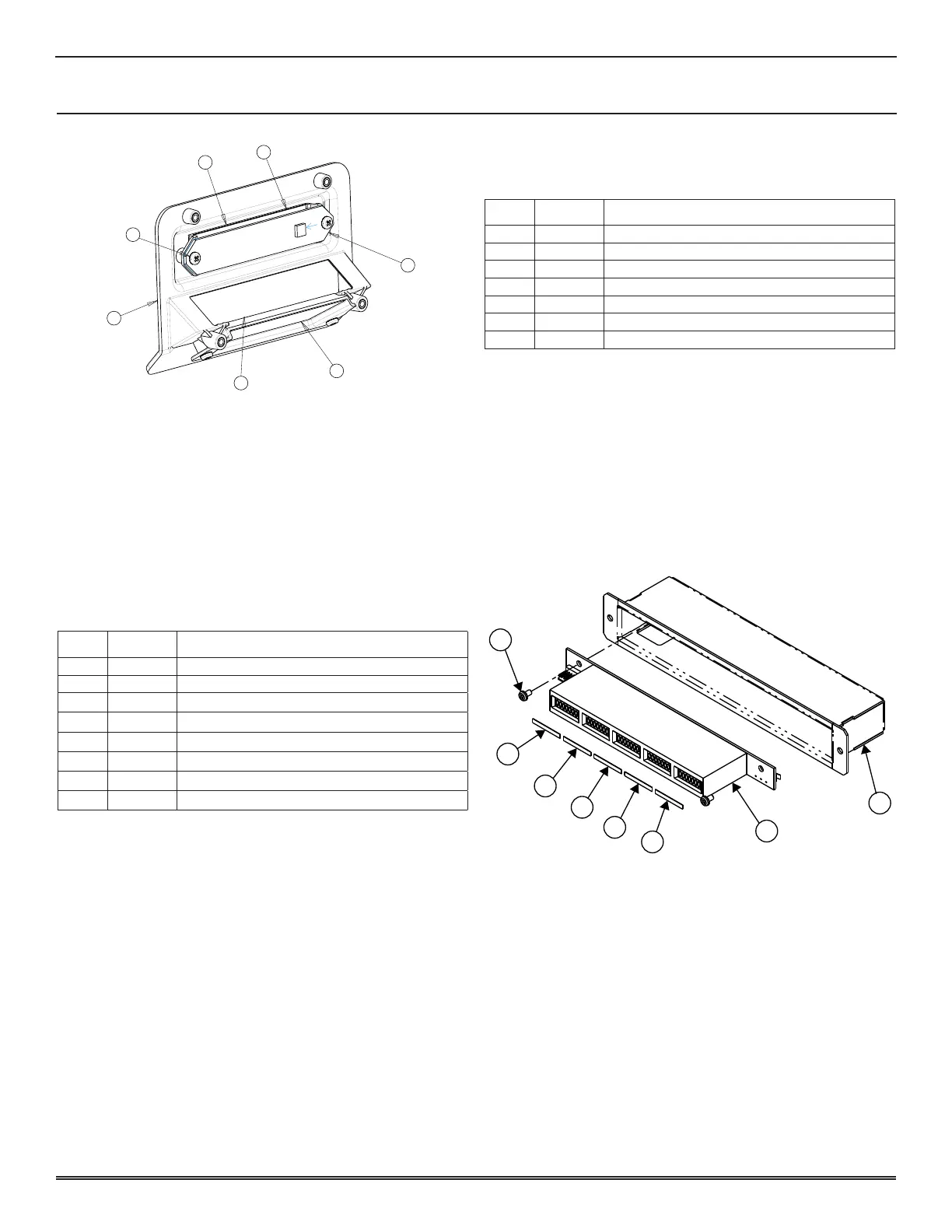

P/n 330920 assy, Meter
1
2
8
7
6
5
4
3
ITEM PART # DESCRIPTION
1� 191874 HSG, METER
2� 450110 SCREW, SEMS, PH PHIL, 6-32 X 1/4 (2)
3� 530364 PCB, K3-SL, METER
4� 830062 DECAL, METERS, TOTAL IN
5� 830063 DECAL, METERS, TOTAL OUT
6� 830064 DECAL, METERS, COIN TO CASHBOX
7� 830065 DECAL, METERS, JACKPOT BALANCE
8� 830066 DECAL, METERS, TOTAL BILL
P/n 331279 assy, bZl, bv/Ptr
4
2
6
1
3
5
7
ITEM PART # DESCRIPTION
1� 410615 BZL, BV/PTR
2� 410616 WINDOW, UPR
3� 410617 WINDOW, LWR
4� 410643 DECAL, UPR, BZL, BV/PTR
5� 410644 DECAL, LWR, BZL, BV/PTR
6� 450107 SCREW, SEMS, PH PHIL, 4-40 X 1/4 (4)
7� 530612 PCB, LIGHTING
