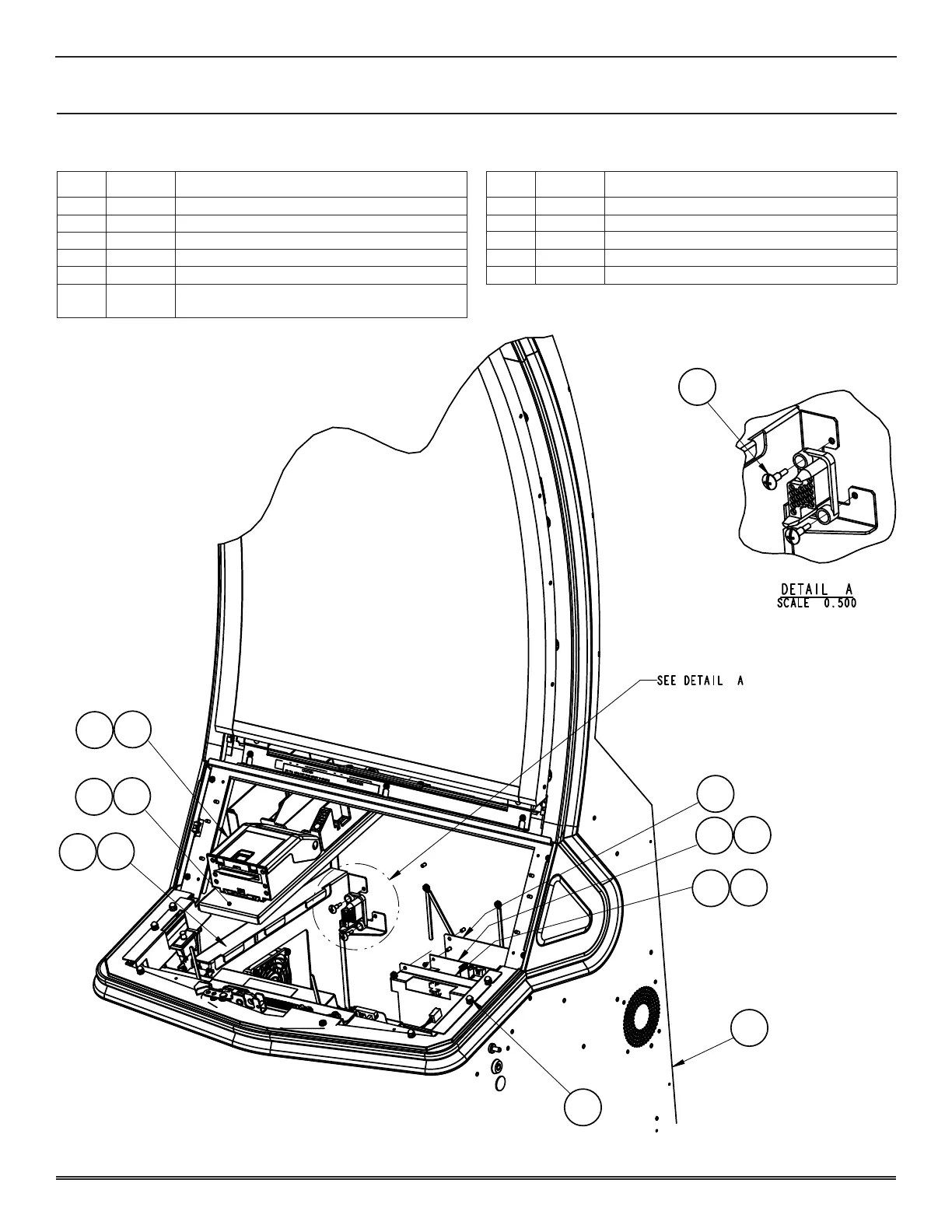

Konami Concerto Crescent - P;N 331405 ASSY, CAB, MAIN (Fig� 1 of 6)

SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-10
3-10
© 2018 Konami Gaming Inc. P/N 810352
CONCERTO CRESCENT
(Original Instructions)
2
76
77
11
67
68
103
10
7
67
8
67
32
75
ITEM PART # DESCRIPTION
2� 131054 ASSY, WLDMNT, MAIN CAB
7� 192697 BRKT, MTG, PS HSG
8� 192698 BRKT, MTG, PTR
10� 192736 PNL, MTG, ICON PCB
11� 192737 CVR, ICON PCB
32� 310290
PRINTER, FUTURE LOGIC, GEN 2 UNI-
VERSAL
P/n 331405 assy, cab, Main (Fig. 1 oF 6)
ITEM PART # DESCRIPTION
67� 450016 NUT, HEX KEP, 8-32 (120)
68� 450107 SCREW, SEMS, PH PHIL, 4-40 X 1/4 (4)
75� 450127 SCREW, SEMS, PH PHIL, M4 X 6 (4)
76� 450155 NUT, HEX ACORN, 8-32 (6)
77� 450161 SCREW, CONNECTOR MOUNTING (2)
