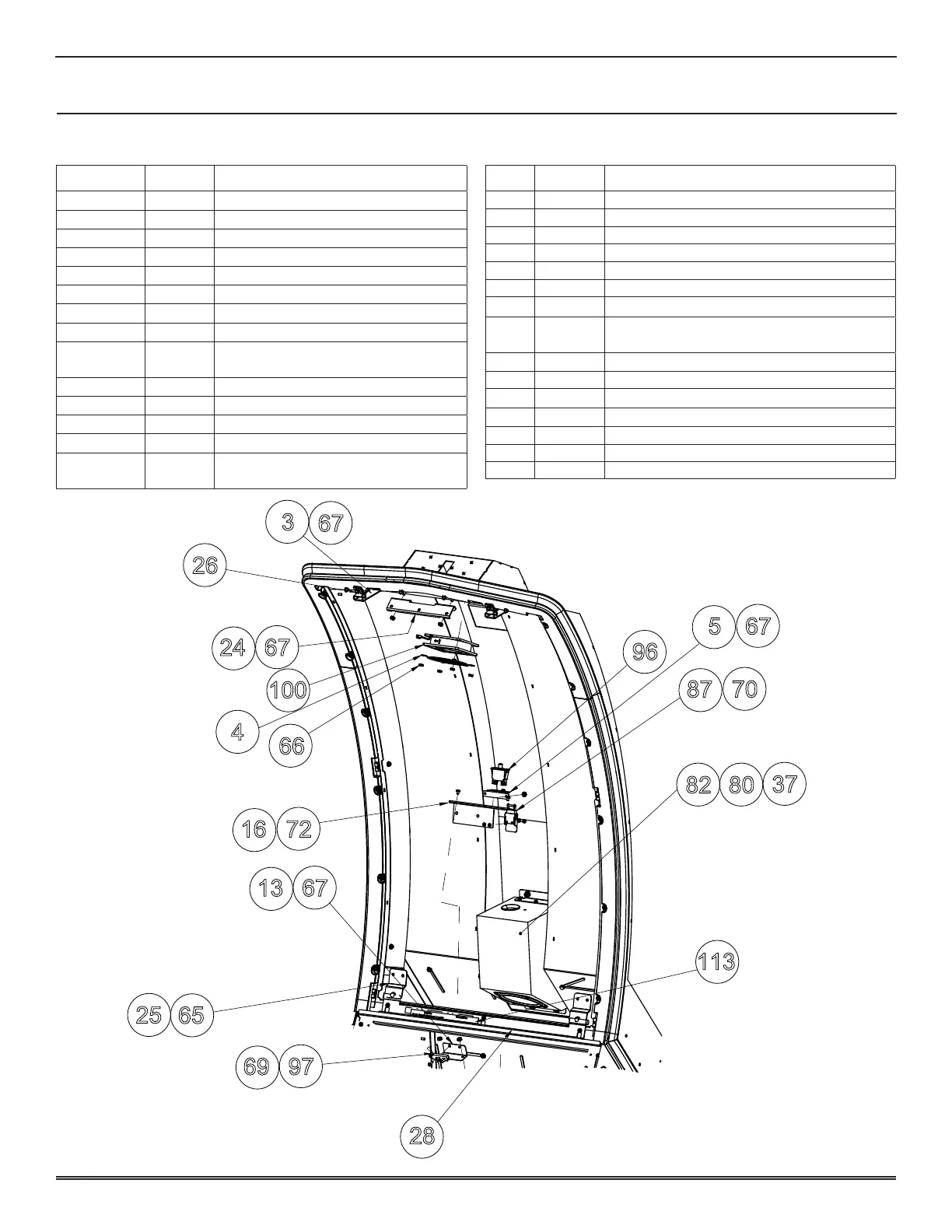

Konami Concerto Crescent - P;N 331405 ASSY, CAB, MAIN (Fig� 6 of 6)

SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-15
3-15
© 2018 Konami Gaming Inc. P/N 810352
CONCERTO CRESCENT
(Original Instructions)
26
28
5
96
67
87
70
80
37
82
13
67
69
97
24
100
113
67
67
16
72
4
66
65
25
3
ITEM PART # DESCRIPTION
- 110465 HRNS, K3-URV, LED, LINK
- 110864 HRNS, PDM2, LED, B2B (3)
- 110866 HRNS, PDM2, BV
- 110867 HRNS, PDM2, PRINTER
- 110890 HRNS, PDM2, BASE
- 110895 HRNS, PDM2, LED, DECK2ELBOW
- 110896 HRNS, PDM2, DOOR SW
- 111008 HRNS, PDM2, UPPER-CRESCENT
3� 131067
ASSY, WLDMNT, BRKT, PIVOT, UP-
PER, CURVED LCD (2)
4� 190070 FAN,GUARD,3�25” MOUNTING (2)
5� 191602 BKT, MTG, SWITCH
13� 192745 BRKT, MTG, OPTIC SENSOR
16� 192799 BRKT, MTG, LATCH/SWITCH
24� 193213
BRKT, LATCH, UPPER, CURVED
LCD, DSPL DR
P/n 331405 assy, cab, Main (Fig. 6 oF 6)
ITEM PART # DESCRIPTION
25� 193216 BRKT, MTG, LOWER, CURVED LCD (2)
26� 193340 BRKT, RETAINING, LCD (2)
28� 193441 BRKT, RETAINING, LCD
37� 310619 ASSY, ENCL, 4” WOOFER
65� 450013 NUT, HEX KEP, 10-32 (4)
66� 450015 NUT, HEX KEP, 6-32 (11)
67� 450016 NUT, HEX KEP, 8-32 (120)
70� 450110
SCREW, SEMS, PAN HEAD PHILLIPS, 6-32
X 1/4 (2)
72� 450115 SCREW, SEMS, PH PHIL, 8-32 X 1/4 (4)
80� 450176 WASHER, FLAT, #8 (4)
82� 450282 NUT, HEX, NYLOCK, 8-32 (8)
87� 450581 LATCH, DRAW, SPRING TENSION
96� 490044 SWITCH, CHERRY, E79-30A (3)
100� 530054 FAN, LOGIC BOX, 600mm HARNESS (2)
113� 831498 DECAL, CAUTION, OPENING
