Konami Concerto Crescent - P;N 310613 Assy, Pwr Cont Pnl, Intl

SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-20
3-20
© 2018 Konami Gaming Inc. P/N 810352
CONCERTO CRESCENT
(Original Instructions)

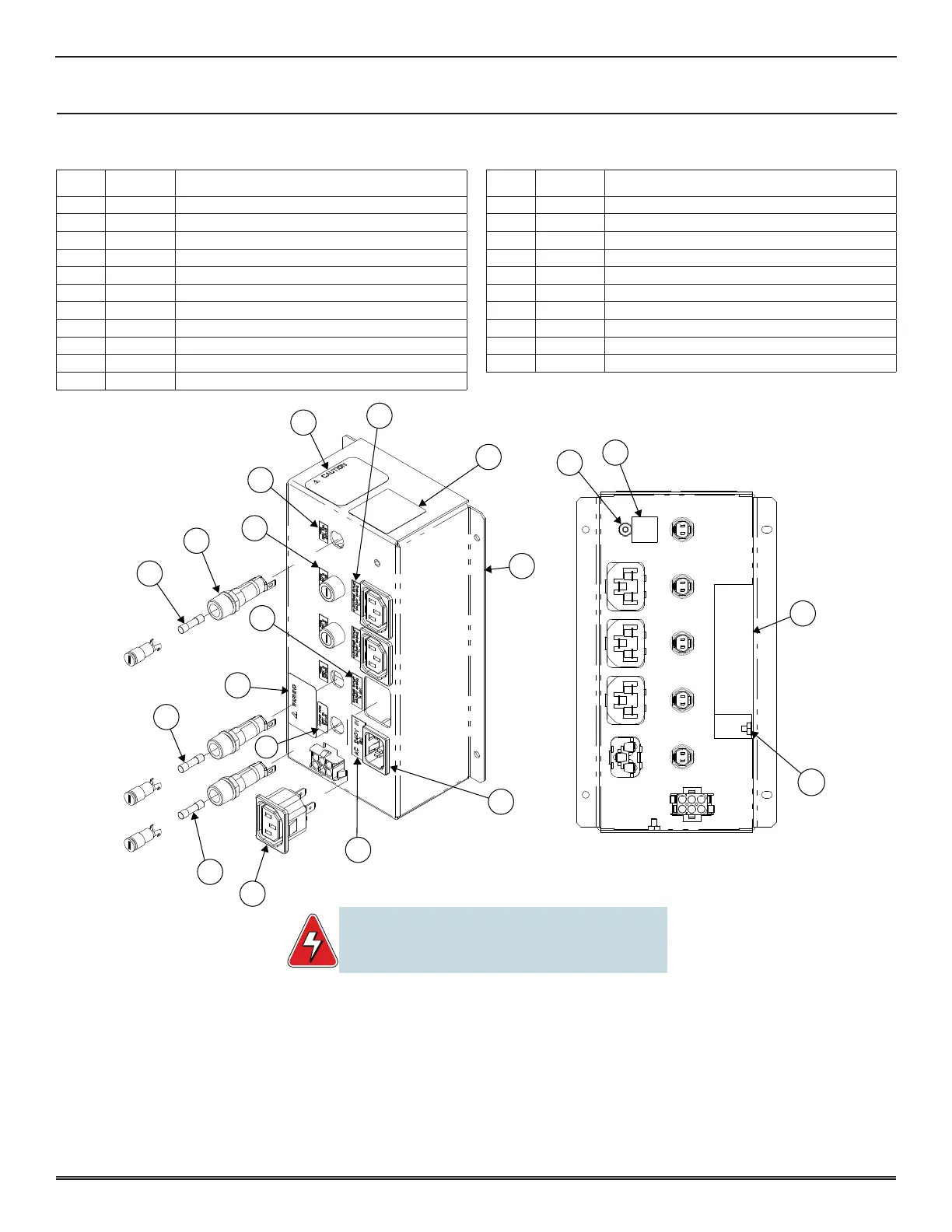

P/n 310613 assy, PWr cont Pnl, intl
7
5
15
14
10
19
11
1
18
12
8
2
9
17
16
4
6
3
2
13
ITEM PART # DESCRIPTION
- 110231 HRNS, AC INLET, NSR
- 110428 HRNS, AC MAIN, 240 VAC
1� 192720 HSG, PWR CONT PNL, INTL
2� 450015 NUT, HEX KEP, 6-32 (4)
3� 490290 FILTER, NOISE, NSR
4� 490459 OUTLET, CONVENIENCE, IEC (3)
5� 490460 HOLDER, FUSE, WITH KNOB, 3455HS2 (5)
6� 490462 FUSE, 5A, 5 X 20MM, IEC
7� 490463 FUSE, 2�5A, 5 X 20MM, IEC
8� 490464 FUSE, 1A, 5 X 20MM, IEC (3)
9� 530032 CONNECTOR, AC
ITEM PART # DESCRIPTION
10� 830056 DECAL, REPLACE SAME FUSE
11� 830057 DECAL, TURN OFF PWR, ELECTRIC SHOCK
12� 830058 DECAL, CHECKING OR REPLACING FUSE
13� 830061 DECAL, EARTH GROUND (2)
14� 830538 DECAL, FUSE, 250V, 2�5A, 240VAC
15� 830539 DECAL, FUSE, 250V, 1A, 240VAC (3)
16� 830541 DECAL, MASTERFUSE, 250V, 5A, 240VAC
17� 830543 DECAL, AC 240V IN 5A
18� 830673 DECAL, SWITCH OUTLET, 100-240V, 1A MAX
19� 830675 DECAL, UN-SW OUT, 100-240V, 1A MAX (2)
WARNING: Incorrect fuse replacement can result
in damage, injury or serious bodily harm. Replace
fuses with ones of the same type and electrical rating.
