SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-21
3-21
© 2018 Konami Gaming Inc. P/N 810352
CONCERTO CRESCENT
(Original Instructions)

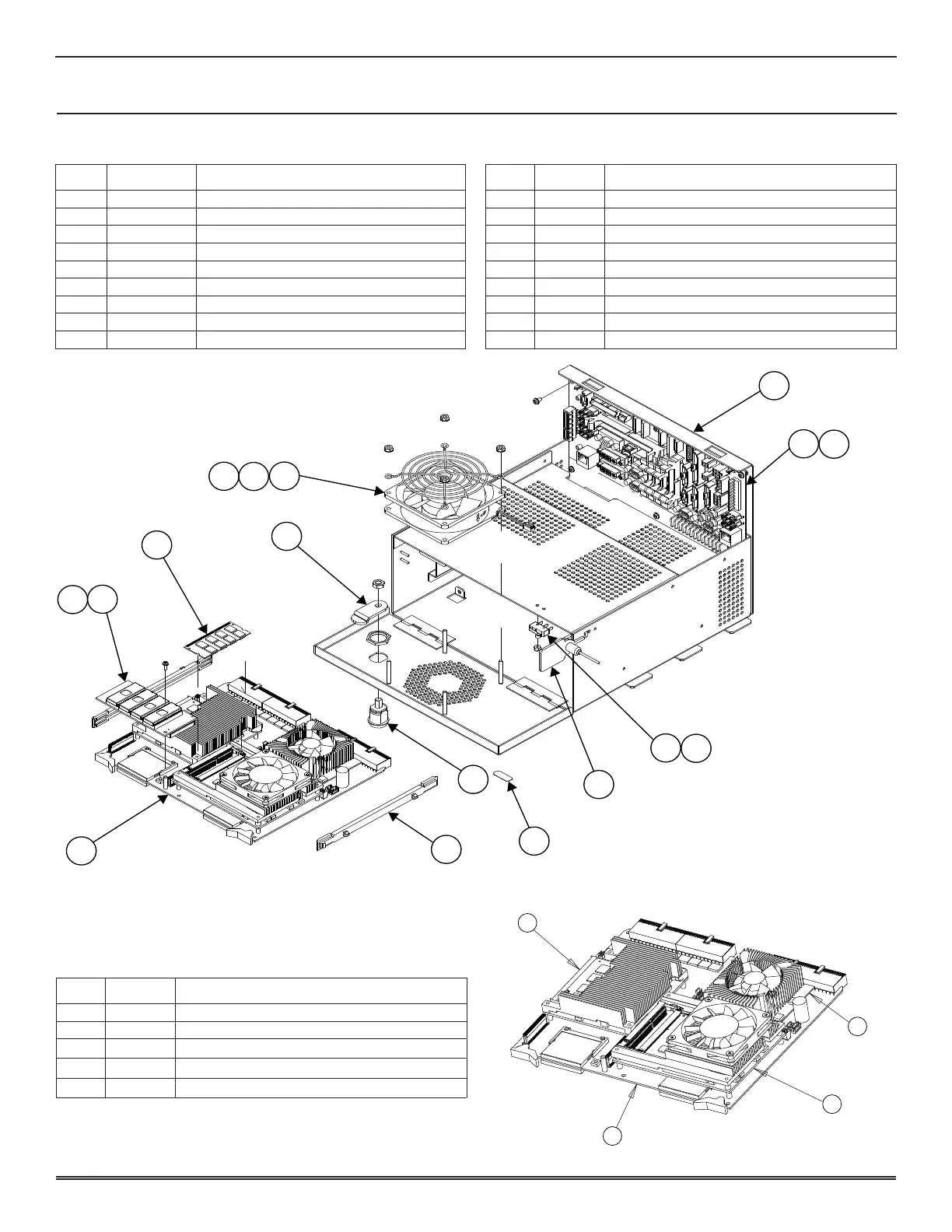

P/n 331270 assy, Hsg, cPu
5
13
7
14
8
11
6
15
2
16
4
9
12
17
10
1
3
P/n 310859 assy, kP 3.5 Main board
1
4
3
2
ITEM PART # DESCRIPTION
1� 310668 ASSY, CPU, HM920
2� 310669 ASSY, KP3�5, GAME CPU, MXM-II, E8860
3� 310670 SYSTEM CONTROL MODULE
- 490568 BATTERY, CR-2032, 3 VOLT (2)
4� 530351 CARRIER BOARD
ITEM PART # DESCRIPTION
- 110308 HRNS, KS, LOGIC DOOR SWITCH (N/S)
1� 130965 ASSY, WLDMNT, CPU HSG
2� 190020 CAM, LOCK, CPU DOOR
3� 190070 FAN, GUARD, 3�25” MOUNTING
4� 310859 ASSY, KP 3�5 MAIN BOARD
5� 450015 NUT, HEX KEP, 6-32 (4)
6� 450110 SCREW, SEMS, PH PHIL, 6-32 X 1/4 (9)
7� 450123 SCREW, SEMS, PH PHIL, M3 X 8
8� 450144 NUT, NYLOK, 2-56 (2)
ITEM PART # DESCRIPTION
9� 450146 GUIDE, PCB, 6IN, HSG, CPU (2)
10� 450490 TAG, SECURITY, RED
11� 490046 SWITCH, OMRON, SBMIN, W/RLR ACTUATOR
12� 490876 LICENSE, WINDOWS EMBEDDED, 7STD, K3�5
13� 530054 FAN, LOGIC BOX, 600mm HARNESS
14� 530352 MEMORY MODULE
15� 530581 PCB, PODIUM2, KP3-IFB2
16� 710000 LOCK, BARREL, �625 LONG
17� 530670 PCB, RAM, 8GB, DDR3L-1600, S0-DIMM (OPT)
