SECTION 2 - SET-UP
1-2-1
2-1
© 2018 Konami Gaming Inc. P/N 810352
CONCERTO CRESCENT
(Original Instructions)
SECTION 2
Set-Up
OVERVIEW
Section 2, Set-Up, describes the installation and set-up of the
machine� This section covers the following topics:
• Physical Specications
• Environmental Specications
• Unpacking and Inspecting
• Candle (Signal Tower) Installation
• Drop Box Door Switch
• Slot Accounting System
• Opening and Closing Doors
• Lock Installation
• Bill Validator Options
• Startup

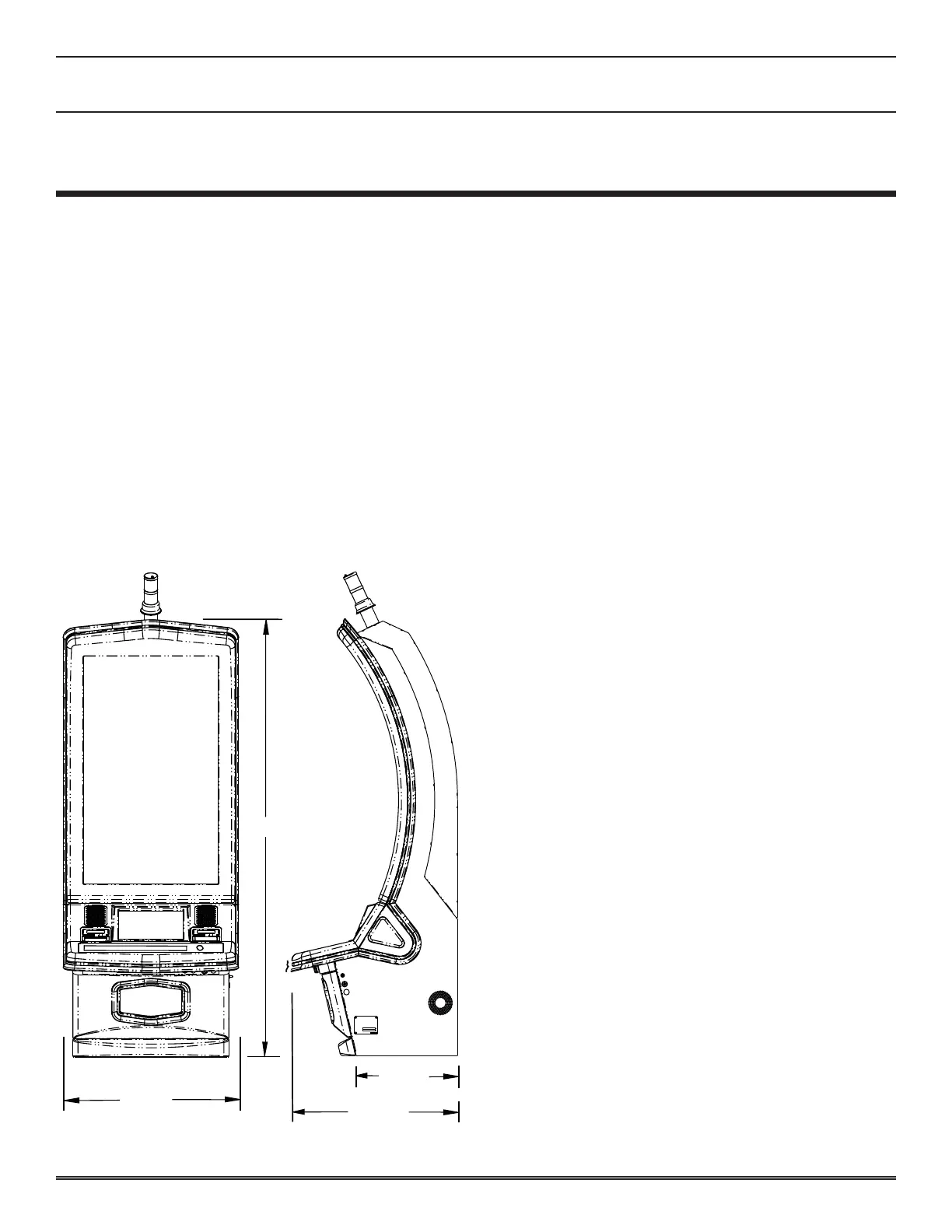

Width
Height
(Cabinet)
Depth
(at Door)
Depth
PHYSICAL SPECIFICATIONS
cabinet sPeciFications
• Height (±0�15") 67�35" 171�0cm
• Depth (at Door) (±0�15") 25�85" 65�7cm
• Depth (Cabinet) (±0�15") 15�60" 39�6cm
• Width (Cabinet) (±0�15") 27�00" 68�6cm
• Weight (±5 lb) 284�0 lbs 128�8kg
ENVIRONMENTAL SPECIFICATIONS
Line Voltage Input: 100–240 VAC, 50 or 60 Hz�
The following calculations are based on an input voltage of
120 VAC:
• Power supply input voltage 110 VAC: 108–120 VAC
(nominal 120 VAC) at 50/60 Hz�
• Power supply output voltage: +12 VDC, +24 VDC�
• Current draw at rest: 1�83 A (220 W)�
• Current draw during game play: 1�9 A (228 W)�
• Maximum operating ambient temperature: 104°F (40°C)�
• Minimum operating ambient temperature: 32°F (0°C)�
• Maximum surface ambient temperature: 105°F (41�5°C)�
• Minimum surface ambient temperature: 32°F (0°C)�
• Maximum relative humidity: 95% (non-condensing)�
UNPACK AND INSPECT
Unpack and inspect the machine before power is turned on�
If the machine has been damaged during shipping, contact
your Konami Distributor, or Konami Customer Service
Representative, depending on warranty and sales contract
terms�
For Return Merchandise Authorization (RMA) information,
see Section 1 of this manual�
Carefully unpack and remove all loose parts and shipping
materials� Inspect components for damage� Verify the power
cord is properly routed out of the cabinet� Verify all wire
connectors are rmly seated. Check all display areas for signs
of broken glass or bulbs�
