SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-4
3-4 © 2018 Konami Gaming Inc. P/N 810440
KX43
(Original Instructions)

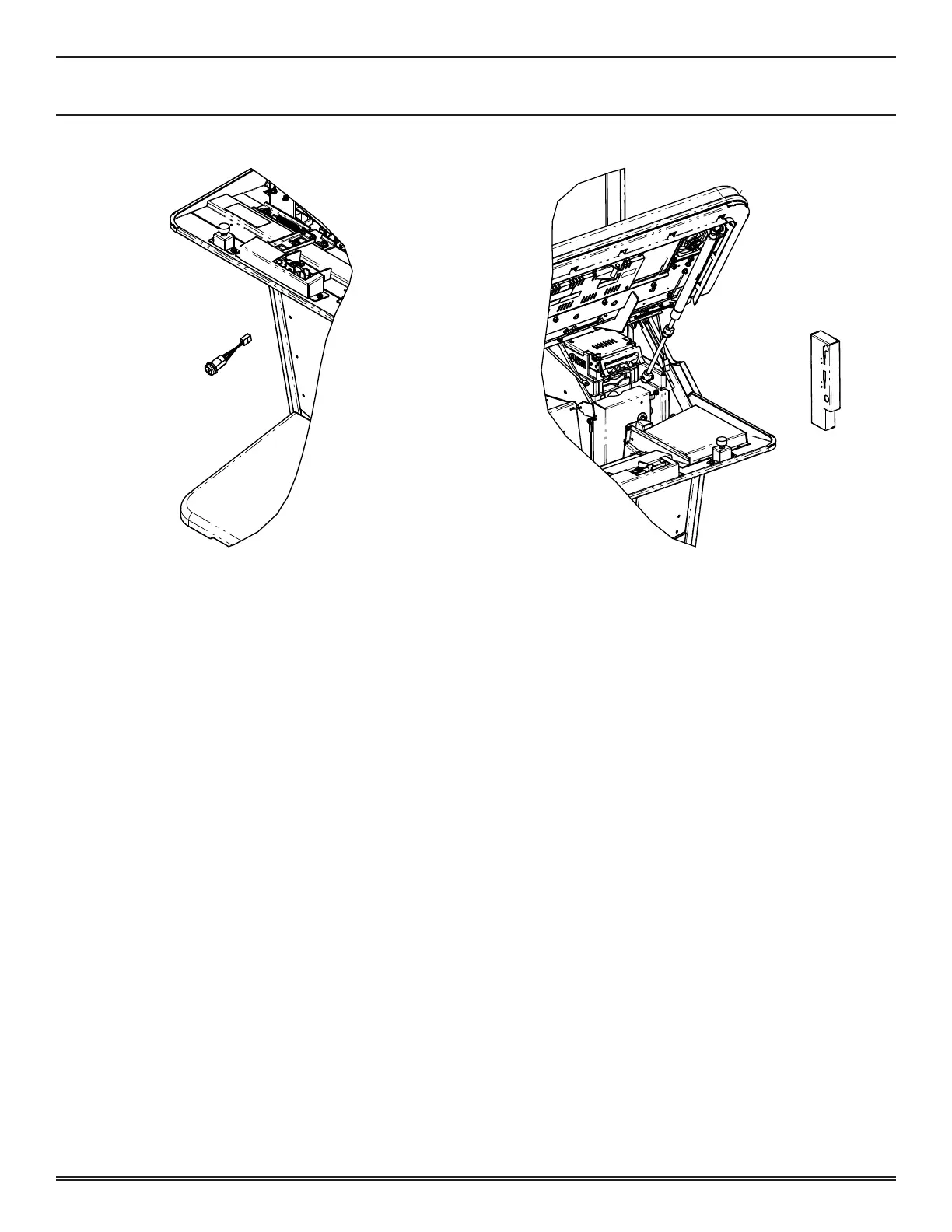

BILL VALIDATOR SWITCH ASSEMBLY
reMoval
1� Unlock and open the Cash Box Door and the Main Deck
Door�
2� Turn off machine power�
3� Open the BV Door and remove the Stacker�
4� Remove the Bill Validator�
5� Remove two #8-32 nuts and the Bill Validator Door Switch
assembly�
6� Disconnect harnesses from the Bill Validator Door Switch
assembly�
inStallation
1� Connect harnesses to the Bill Validator Door Switch
assembly�
2� Install the Bill Validator Door Switch assembly and secure
with two #8-32 nuts�
3� Install the Bill Validator�
4� Turn on main power�
5� Close and lock the Cash Box Door and the Main Deck
Door�
KEY SWITCH
reMoval
1� Unlock and open the Main Deck Door and turn off
machine power�
2� Disconnect wires from the Switch�
3� Remove 3/4” nut and remove the Switch from the
machine�
inStallation
1� Insert the Switch into machine and install 3/4” nut�
2� Connect wires to terminals�
3� Turn on main power�
4� Close and lock the Main Deck Door�
