Konami KX43 - P;N 331375 Assy, Sw, Bv Dr; P;N 331374 Assy, Hsg, Bv

SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-19
3-19 © 2018 Konami Gaming Inc. P/N 810440
KX43
(Original Instructions)

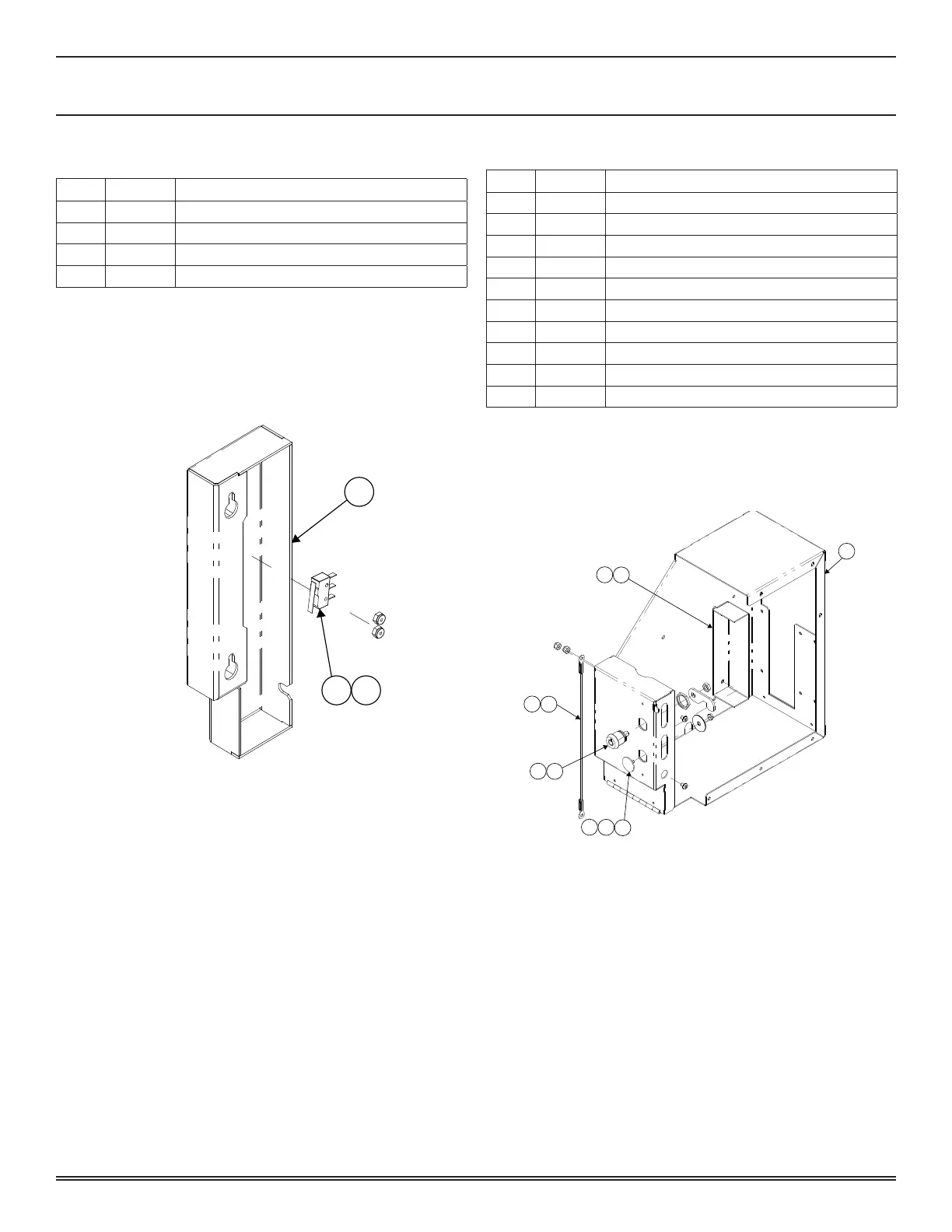

P/N 331375 ASSY, SW, BV DR
1
23
ITEM PART # DESCRIPTION
- 110054 HRNS,BILL DOOR SWITCH (NOT SHOWN)
1� 193070 BRKT, SW, BV DR
2� 450144 NUT, NYLOK, 2-56 (2)
3� 490050 SWITCH, OMRON, SBMIN, W/LVR ACTUATOR
P/N 331374 ASSY, HSG, BV
9
5
3
10
8
7
6
4
2
1
ITEM PART # DESCRIPTION
1� 130057 PLUG,RESET KEY
2� 131039 ASSY, WLDMNT, BV HSG
3� 192688 CAM, DR, BV
4� 193071 CVR, LOCK, BV
5� 450015 NUT, HEX KEP, 6-32
6� 450115 SCREW, SEMS, PH PHIL, 8-32 X 1/4 (2)
7� 450185 DOOR STAY, 10�5”
8� 450282 NUT, HEX, NYLOCK, 8-32 (2)
9� 450285 WASHER, FENDER, #10 OD 1”X7/32 ID X 3/64
10� 710000 LOCK, BARREL, �625 LONG
