Konami KX43 - P;N 310610 Assy, Ps

SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-18
3-18 © 2018 Konami Gaming Inc. P/N 810440
KX43
(Original Instructions)

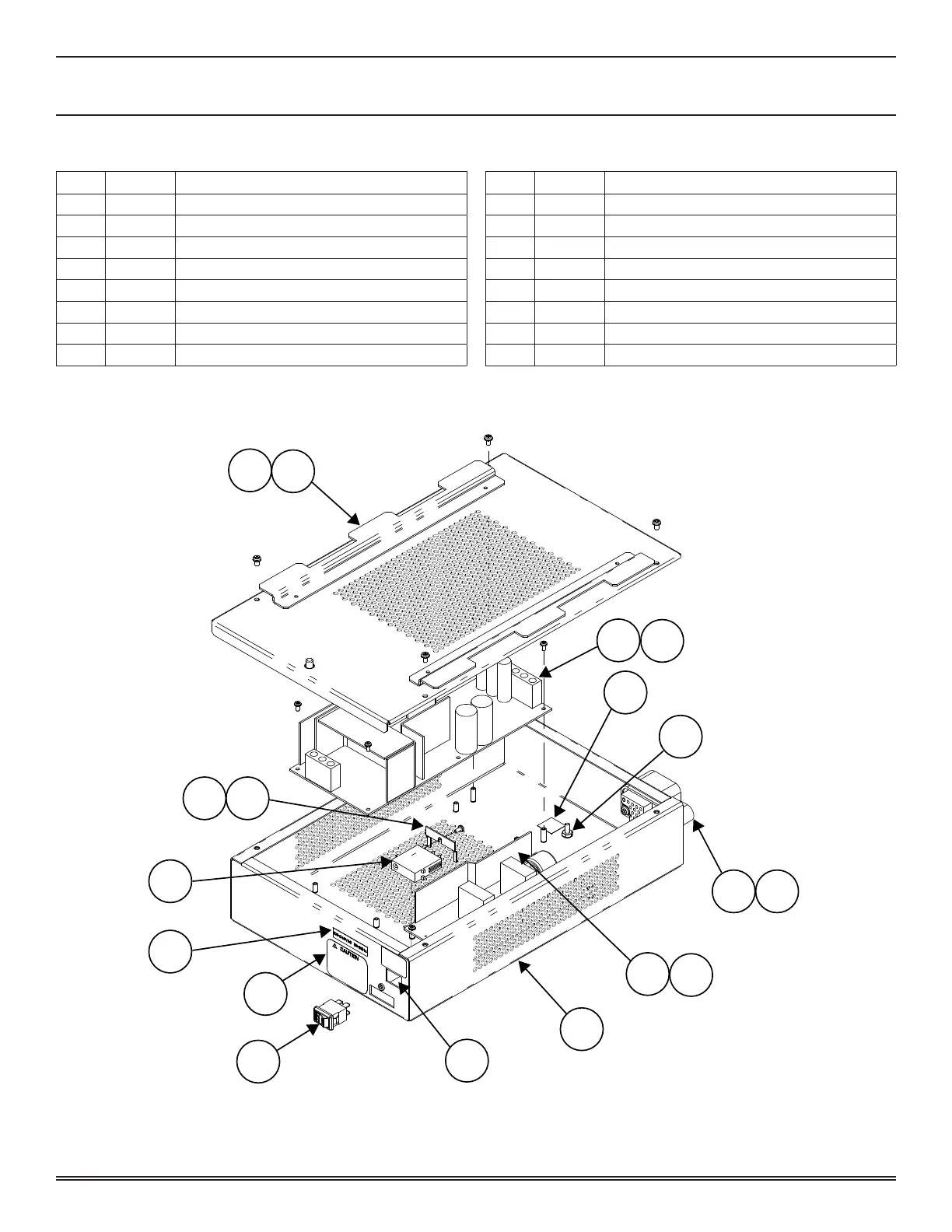

P/N 310610 ASSY, PS
27
6
12
14
5
81
6
11
4
15
10
13
16
36
9
ITEM PART # DESCRIPTION
1� 110885 HRNS, PODIUM II, POWER SUPPLY
2� 130966 ASSY, WLDMNT, PS CVR
3� 190592 BRKT, RETAINING, SSR
4� 192690 HSG, PS
5� 450015 NUT, HEX KEP, 6-32 (2)
6� 450107 SCREW, SEMS, PH PHIL, 4-40 X 1/4 (9)
7� 450110 SCREW, SEMS, PH PHIL, 6-32 X 1/4 (4)
8� 450114 SCREW, SEMS, PH PHIL, 8-32 X 1/2 (2)
ITEM PART # DESCRIPTION
9� 490289 SSR, I/O, POWER SUPPLY
10� 490465 SWITCH, ROCKER, MINI EURO, 240VAC
11� 490837 SUPPLY, POWER, 12VDC, 150W, 100-240VAC
12� 490838 SUPPLY, POWER 24VDC, 300W, 100-240VAC
13� 830056 DECAL, REPLACE SAME FUSE
14� 830061 DECAL, EARTH GROUND (2)
15� 830076 DECAL, MAIN POWER, ON/OFF
16� 830978 DECAL, 100-240VAC 50/60Hz
