Konami KX43 User Manual

SECTION 2 - SET-UP
-2-9
2-9 © 2018 Konami Gaming Inc P/N 810440
KX43
(Original Instructions)
ColleCting billS
When the Bill Stacker is full, the BILL STACKER FULL
message appears� This suspends the game until the bills
are collected� Please note that bills should be collected
periodically before the Bill Stacker becomes full�
1� Open the Cash Box Door�
2� Open the Bill Stacker Door�
3� Pull out the Bill Stacker�
4� Unlock the locks in two places on the back of the Bill
Stacker at the same time and remove the bills�
5� Install the Bill Stacker in the Bill Validator unit�
6� Close the Bill Stacker Door and Cash Box Door�
7� Turn the Reset Key Switch to recover from the error�
CaShbox door loCk
1� Open the Cashbox Door�
2� Replace the Lock�
3� Turn the key 90° counter-clockwise to open the Cashbox
Door then return it to the original position�
4� Open and close the Cashbox Door to ensure the lock is
properly installed�
If any of the following problems arise before turning the power
on, check that the key works properly for the installed lock�
• You cannot easily release or engage the door�
• You cannot easily open or close the door�
• You cannot remove or turn the key�
If the CASH BOX OPEN message appears after turning the
power on, make sure that the above procedure was performed
properly�
The probable causes of the error are:
• The lock is not installed properly�
• The door switch is not depressed completely�
If the SUB DOOR ACCESSED message appears after turning
the power on, turn the Reset Key Switch�
For more information on checking the status of the Sub Door
Switch and Sensor, refer to the DOOR section in the KP3�5
Setup Manual, part number 810239�

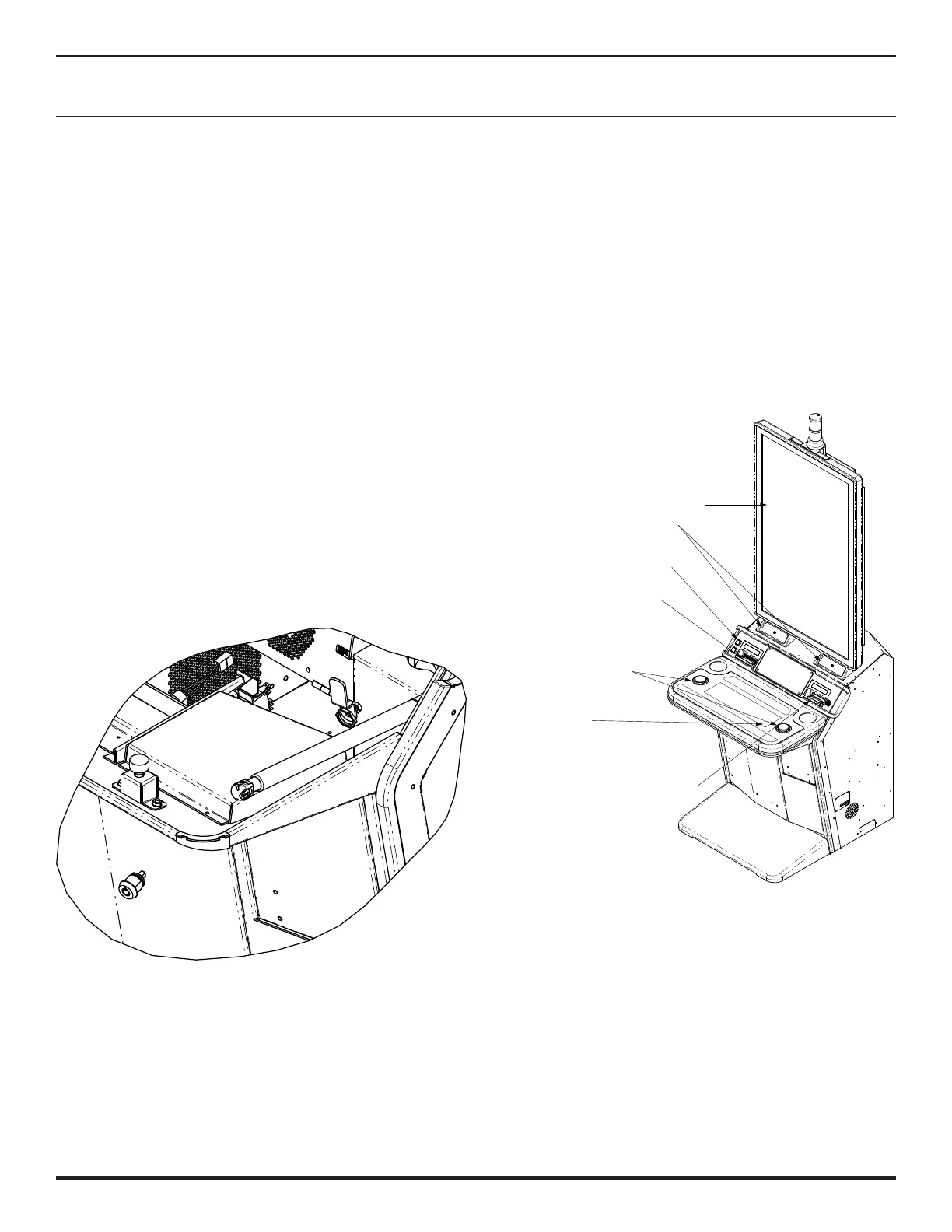

PLAYER/OPERATOR INTERFACE
The following illustration identifies the Player/Operator
interface items used to play the game�
SPEAKERS
LCD BUTTON PANEL
(TOUCHDASH PANEL)
43” LCD SCREEN
PRINTER
BILL ENTRY
SERVICE & CASHOUT
BUTTON
SPIN BUTTONS
SPIN buttonS
Each SPIN button can act as a REPEAT BET button� After
the player selects the number of lines, the credits wagered
per line activates the game� Pressing either SPIN button then
activates the next game�
bill entry
Accepts paper currency and converts it into credits according
to the denomination of the machine� If a player inserts a $20
bill, and the denomination of the machine is 5 cents, the
machine displays 400 credits on the credit meter�
