SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-3
3-3 © 2018 Konami Gaming Inc. P/N 810440
KX43
(Original Instructions)

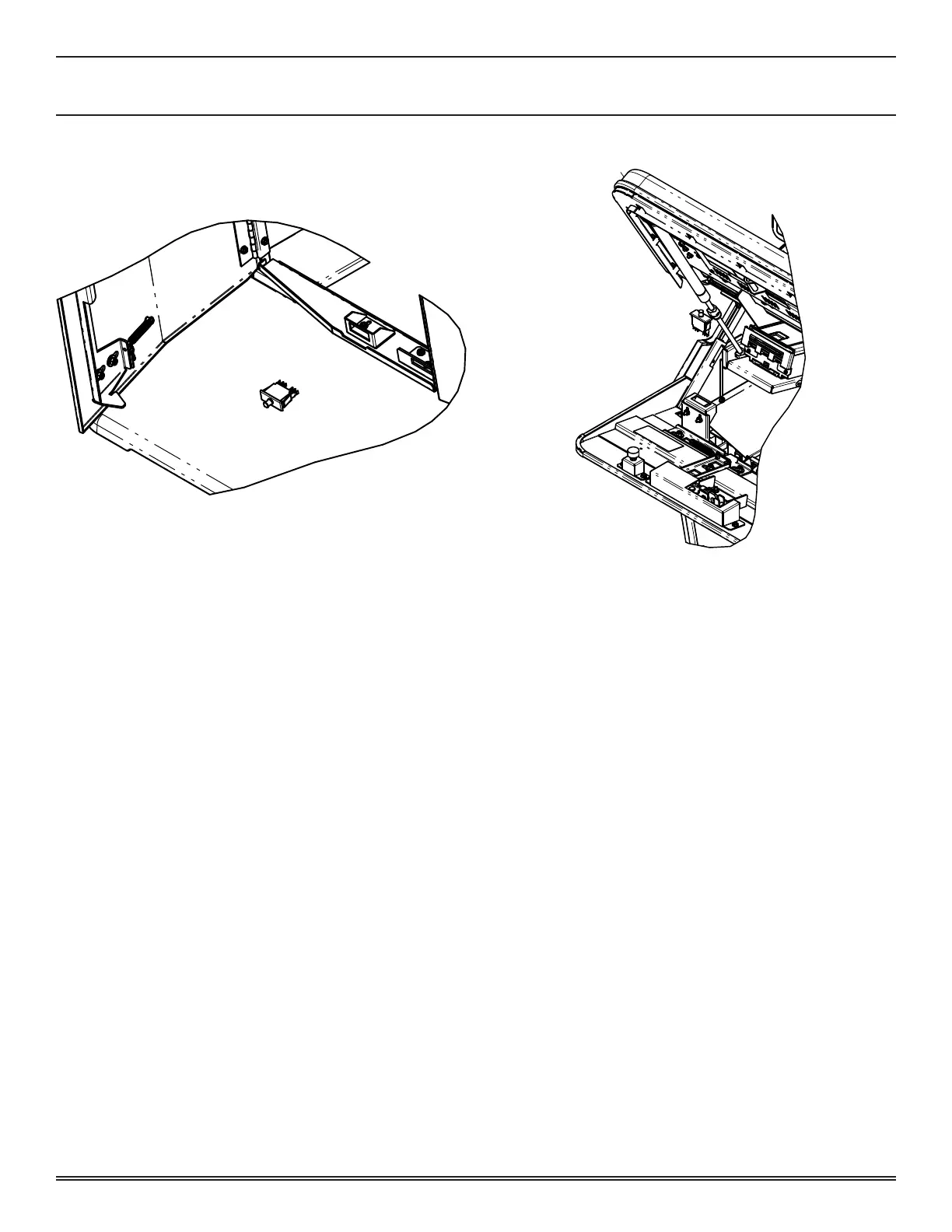

MAIN DECK DOOR SWITCH
reMoval
1� Unlock and open the Main Deck Door and turn off
machine power�
2� Note wire locations for installation and remove all wires
from the Switch�
3� Gently grasp the Switch behind the bracket, press in on
the side tabs, and then push the Switch forward�
inStallation
1� Push the new Switch into Mounting Bracket until two tabs
on the Switch seat in place�
2� Connect wires to terminals�
3� Close and lock the Main Deck Door�
SUB DOOR SWITCH
opening
1� Unlock and open the Main Deck Door and turn off
machine power�
2� Unlock and open the Sub Door�
3� Note wire locations for installation and remove all wires
from the Switch�
4� Gently grasp the Switch behind the bracket, press in on
the side tabs, and then push the Switch forward�
inStallation
1� Insert the Switch from the front of the machine�
2� Gently push the Switch into the bracket until it seats�
3� Connect wires to the terminals� Turn on main power�
4� Close and lock the Sub Doors�
