SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-9
3-9 © 2018 Konami Gaming Inc. P/N 810440
KX43
(Original Instructions)

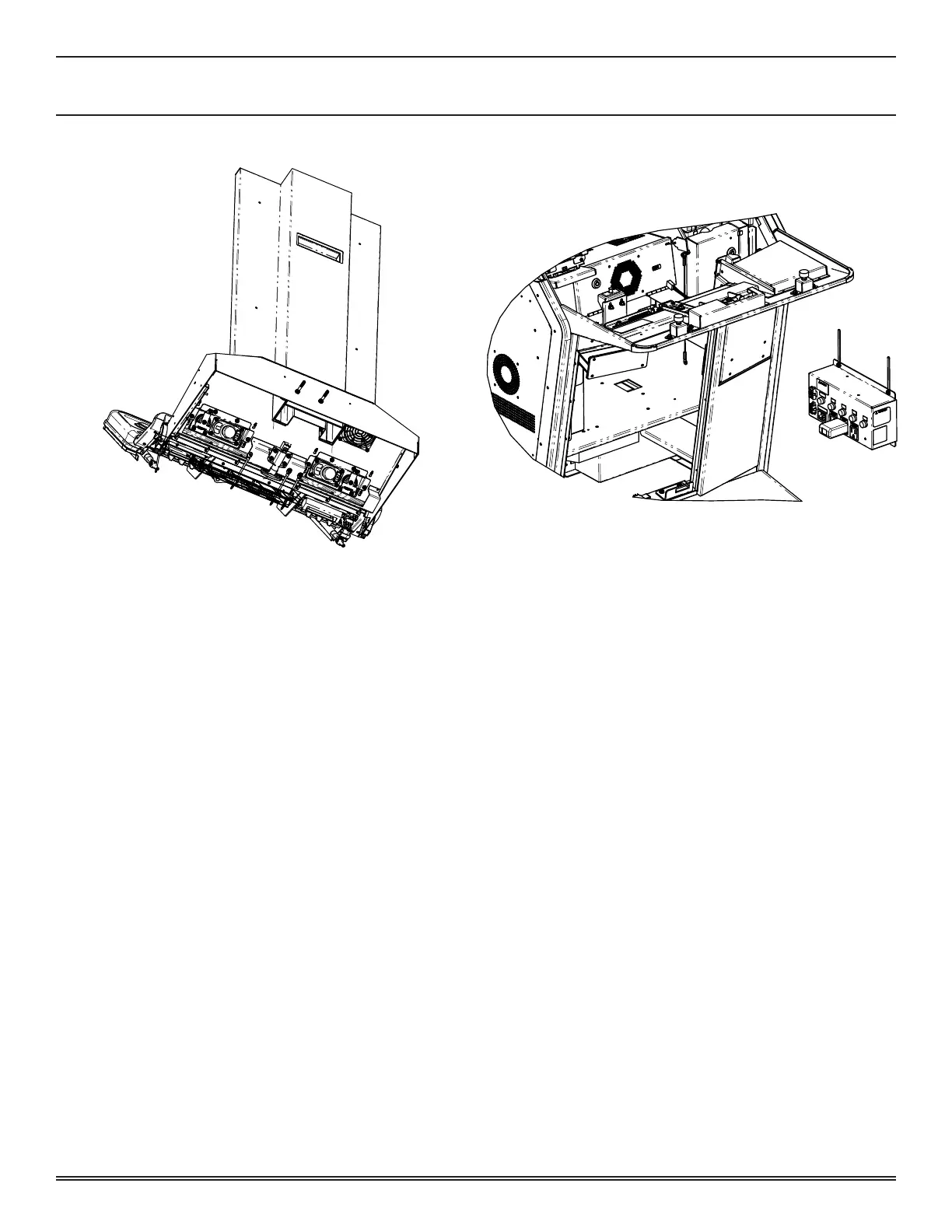

SPEAKERS
reMoval
1� Open the Main Deck Door and remove the nuts securing
the Speakers to the Cabinet�
2� Remove Mounting Connectors and Speakers�
inStallation
1� Install connectors on Speakers�
2� Place Speaker onto Mounting Bracket�
3� Secure with screws�
POWER DISTRIBUTION ASSEMBLY
reMoval
1� Unlock and open Main Deck Door and Sub Panel�
2� Turn off machine power�
3� Disconnect harnesses from Power Distribution Assembly�
4� Remove the four 8-32 nuts securing the Power Distribution
Assembly�
5� Remove Power Distribution Assembly�
inStallation
1� Install Power Distribution Assembly to mounting studs
and secure with the four 8-32 nuts�
2� Connect harnesses to Power Distribution Assembly�
3� Power on the machine�
4� Close and lock Main Deck Door and Sub Door�
