Konami KX43 - P;N 331533 Assy, Cab, Main (Fig. 3 of 3)

SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-14
3-14 © 2018 Konami Gaming Inc. P/N 810440
KX43
(Original Instructions)

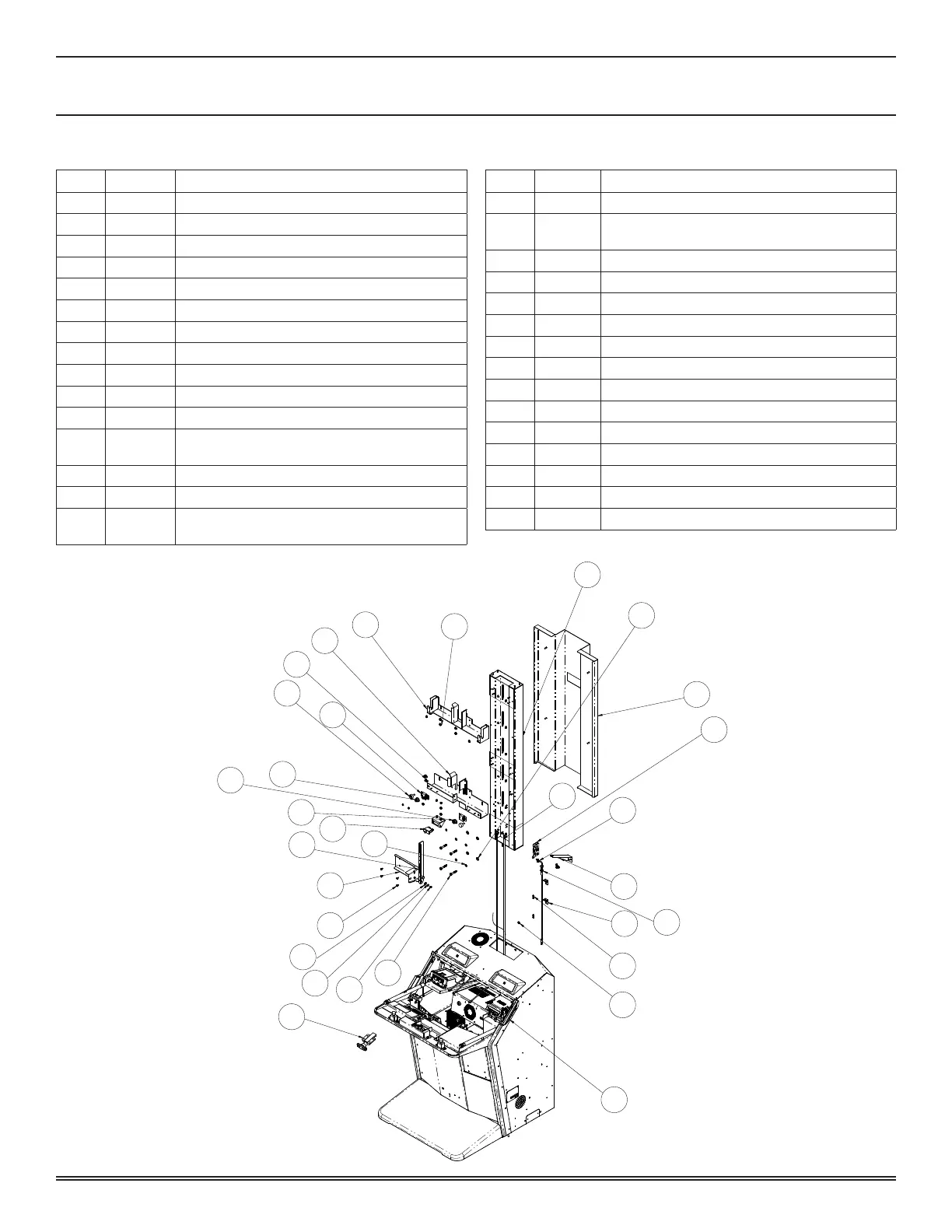

P/N 331533 ASSY, CAB, MAIN (FIG. 3 OF 3)
ITEM PART # DESCRIPTION
7� 131279 ASSY, WLDMNT, LCD POST
8� 131280 ASSY, WLDMNT, TOP, MTG� LCD
9� 131281 ASSY, WLDMNT, BTTM, MTG, LCD
22� 193401 BRKT, MTG, SPRING (2)
42� 193858 BRKT, SPPRT, LCD CABLES
43� 193860 BRKT, MTG, LCD RELEASE
44� 193864 CVR, BCK, POST
45� 193866 BAR, RETAIN, LCD
48� 193985 BRKT, SWITCH, CHERRY, DECK (2)
73� 450014 NUT, HEX KEP, 4-40 (8)
75� 450016 NUT, HEX KEP, 8-32 (146)
78� 450115
SCREW, SENS, PAN HEAD PHILLIPS, 8·32 X
1/4 (4)
85� 450176 WASHER, #8 FLAT (10)
86� 450178 WASHER, 1/4" FLAT (4)
91� 450467
SCREW, SEMS, PAN HD, PHILLIPS, 1/4-20 X
1/2 (4)
ITEM PART # DESCRIPTION
93� 450534 WASHER, LOCK, SPLIT, STL, 1/4 (4)
94� 450590
SCREW, TRUSS HD PHIL, 8·32 X �375, BLK
OXIDE (4)
96� 450632 BUMPER, THREADED STUD, M6 (4)
97� 450633 SPRING, CONICAL (2)
98� 450634 NUT� HEX JAM, M6 (4)
100� 450778 SCREW, HX HD, 1/4-20 X 0� 75LG (4)
101� 450779 WASHER, FLAT, 1/4, 0�625 OD X 0�281 ID
102� 450786 LATCH, ROTARY, I STAGE, LEFT HAND
103� 450787 T-HANDLE, CABLE
104� 450788 CLIP, RETAINER, CABLE
105� 450789 BRKT, MTG, CABLE (2)
106� 450790 ASSY, CABLE, AC, 500MM
107� 470095 TAPE, FOAM, DECK, CORNERS (2)
108� 490044 SWITCH, CHERRY, E79-30A (4)
111� 490456 CLAMP, VINYL COATED, 3 1/2, BLACK (18)
