Konami KX43 - P;N 331534 Assy, Deck

SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-17
3-17 © 2018 Konami Gaming Inc. P/N 810440
KX43
(Original Instructions)
14
18
15
16
22
12
20
23
29
25
17
26
28
27
11
30
32
19
13
24
21
7
9
2
8
1
4
6
5
3
31
10

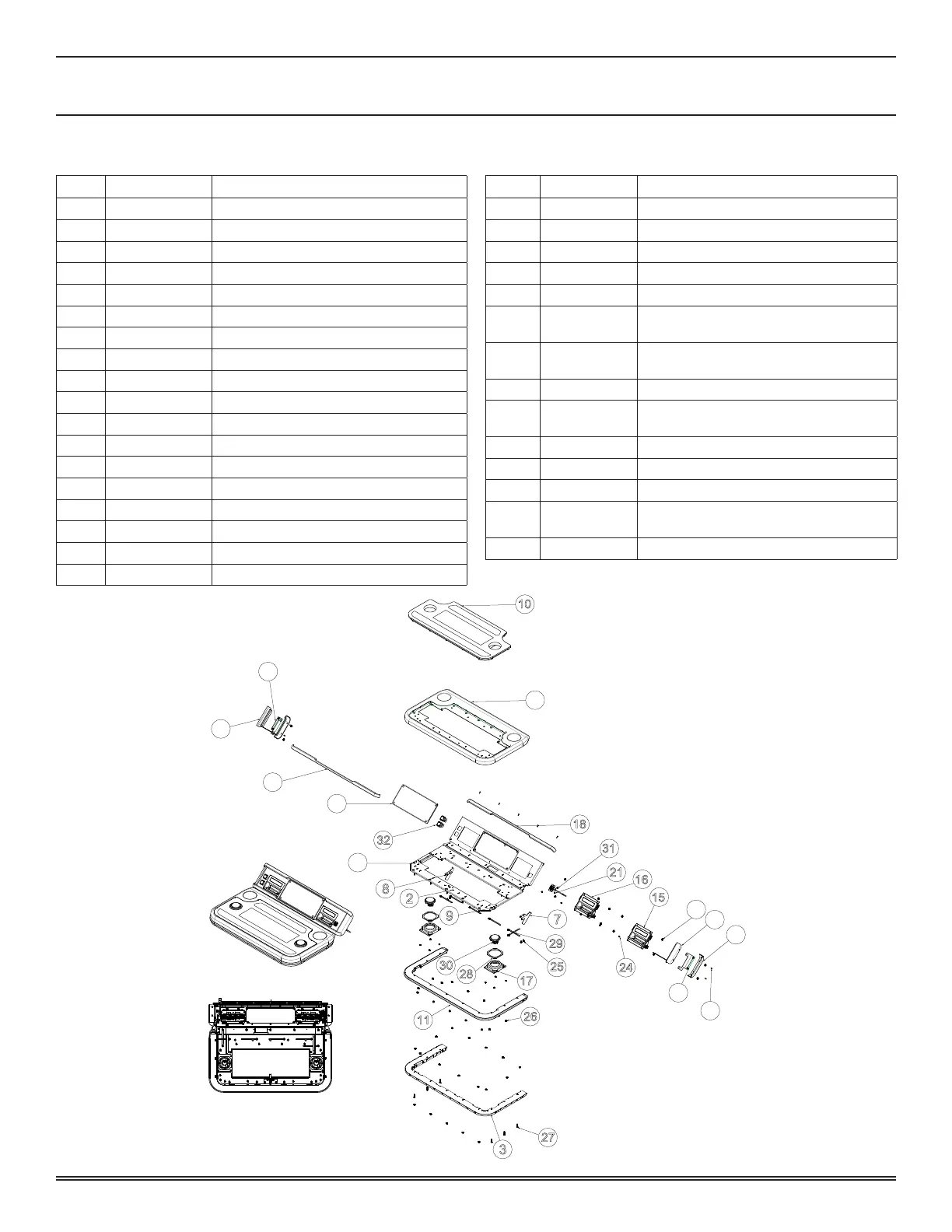

P/N 331534 ASSY, DECK
ITEM PART # DESCRIPTION
1� 131276 ASSY, WLDMNT, FRAME DECK
2� 131277 ASSY, WLDMNT, STRIKER
3� 131300 ASSY, WLDMNT, DECK, BTTM, CVR
4� 193913 PNL, PTM, BLANK
5� 193970 BRKT, MTG, RS, DIFF, CRNR
6� 193971 BRKT, MTG, LS, DIFF, CRNR
7� 193982 PLT, GUARD, CRNR, RS
8� 193983 PLT, GUARD, CRNR, LS
9� 230118 BALL STUD, MODIFIED (2)
10� 310992 TOUCH DASH PANEL
11� 311011 ASSY, DIFF, DECK
12� 311013 ASSY, DIFF, DECK SIDE, RS
13� 311014 ASSY, DIFF, DECK SIDE, LS
14� 311015 BOLSTER, URETHANE, DECK
15� 331517 ASSY, BZL, BV
16� 331554 ASSY, BEZEL, PRINTER
17� 410860 INSERT, SPIN BUTTON (2)
18� 410983 TRIM, TOP, DECK
ITEM PART # DESCRIPTION
19� 410984 TRIM, BOTTOM, DECK
20� 410985 TRIM, DECK SIDE (2)
21� 450014 NUT, HEX KEP, 4-40 (10)
22� 450016 NUT, HEX KEP, 8-32 (55)
23� 450046 SCREW, FLAT HEAD, 4-40X3/8 (9)
24� 450107
SCREW, SEMS, PAN HEAD PHILLIPS, 4-40
X 1/4 (5)
25� 450115
SCREW, SEMS, PAN HEAD PHILLIPS, 8-32
X 1/4 (4)
26� 450282 NUT, HEX, NYLOCK, 8-32 (15)
27� 450777
SCREW, PAN HD, PHIL, W/KEP LOCK, #8-
32 X 0�75"LG
28� 470089 GASKET, BUTTON, INSERT (2)
29� 490456 CLAMP, VINYL COATED, 3 1/2, BLACK (6)
30� 490917 BUTTON, ROUND (2)
31� 491050
CABLE, USB, CHARGER, SQ, BLUE
LIGHT, 3M
32� 491095 BUTTON, SQ, GPB1105 (2)
