Konami KX43 - SECTION 6 Electrical Components and PCBs; Electrical Components List; PCBs Identification; Fuse Specifications

1-6-5
6-5 © 2018 Konami Gaming Inc.P/N 810440
KX43
(Original Instructions)
SECTION 6 - WIRING DIAGRAMS &
ELECTRICAL COMPONENTS
ELECTRICAL COMPONENTS
The following table lists the required electrical components
for the KX43 cabinet�
ELECTRICAL COMPONENTS
PART # DESCRIPTION
490044 SWITCH, CHERRY, E79-30A
490046 SWITCH, OMRON, SBMIN, w/ROLLER ACTUATOR
490050 SWITCH, OMRON, SBMIN, w/LEVER ACTUATOR
490055 HOLDER, FUSE, 3453LF-1-010
490056 HOLDER, FUSE, KNOB, 3453LF1-020
490065 SENSOR, PHOTO, ALEPH
490078 CORD, AC, 7�5’
490079 OUTLET, CONVENIENCE, 120 V
490289 SSR, I/O, POWER SUPPLY
490290 FILTER, NOISE, SNR
490358 COMPACT FLASH CARD, 128 MB, KS
490449 POWER SUPPLY, 12 VDC, 150 W, 100-240 VAC
490450 POWER SUPPLY, 24 VDC, 240 W, 100-240 VAC
490465 SWITCH, ROCKER, MINI EURO STYLE, 240 VAC
490917 BUTTON ROUND
FuSeS
The following table lists the required fuses for the KX43
cabinet�
FUSES
PART # DESCRIPTION
490033 FUSE, 2 A, S/B (3)
490034 FUSE, 5 A, S/B
490036 FUSE, 10 A, CERAMIC
490081 FUSE, 3A DIA, 6�4 X 31�8
490462 FUSE, 5A, 5 X 20mm IEC
490463 FUSE, 2�5A, 5 X 20mm IEC
490464 FUSE, 1A, 5 X 20mm IEC (3)
pCbS
The following table lists the PCBs for the KX43 cabinet�
PCBs
PART # DESCRIPTION
530364 PCB, K3-SLMETER
530689 PCB, K3-IFB, BACKPLANE 4K
530690 CARRIER BOARD
530721 PCB, PDM2-BILB-G
530735 PCB, PDM2, ICON-G

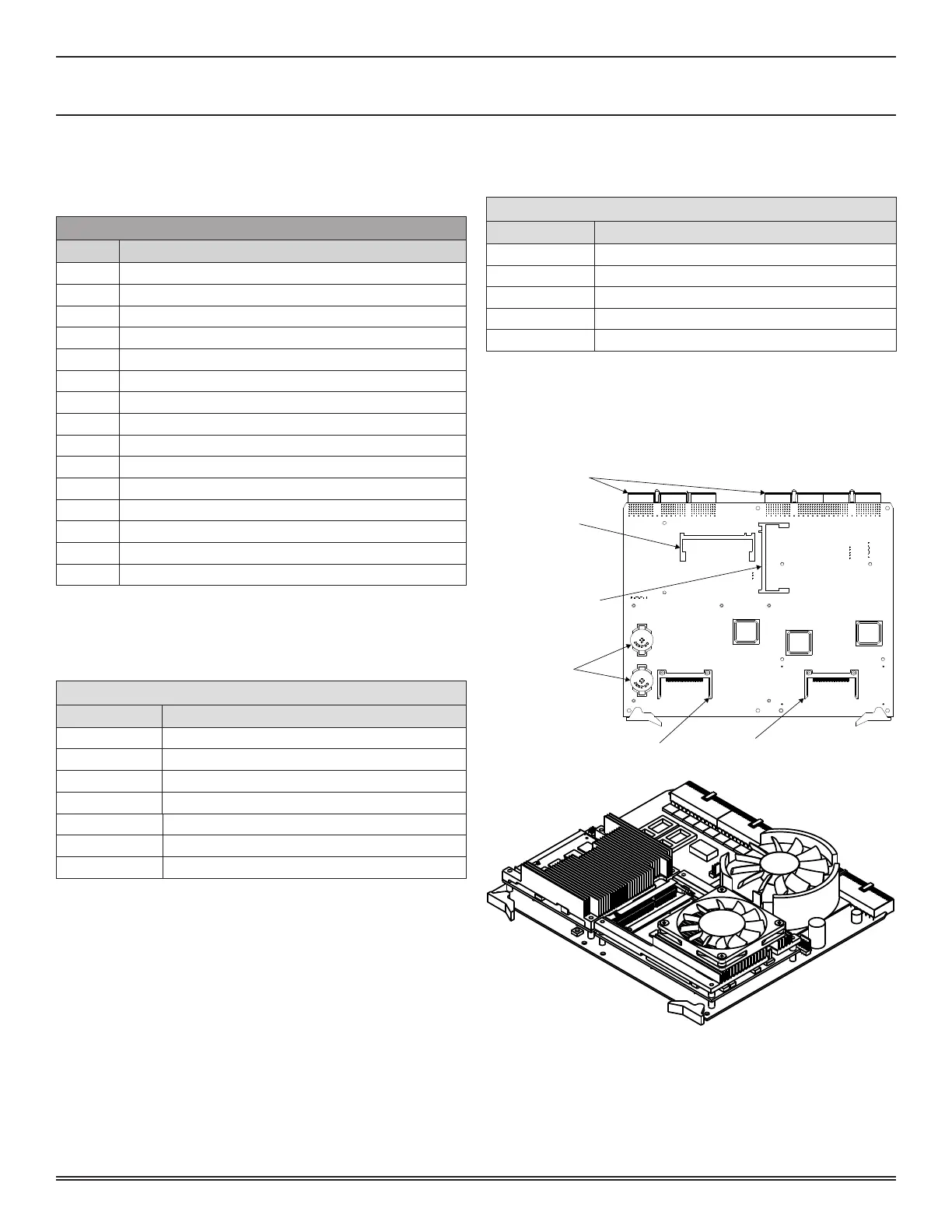

board CoMponentS
The following illustrations depict the main components on the
main PCBs used in the KX43 cabinet�
PCB, K3, MPU
BACKPLANE CONNECTORS
SLOT FOR LAN MODULE
(GAME SIDE)
SLOT FOR LAN MODULE
(SYSTEM SIDE)
BATTERIES
CF 4
CF 3
