METER ASSEMBLY
reMoval
1� Unlock and open the Main Deck Door and the Sub Door�
2� Turn off machine power�
3� Remove the four 8-32 nuts securing the Meter Assembly
and Cover�
4� Remove Meter Assembly and disconnect harness�
inStallation
1� Connect harness to Meter Assembly�
2� Install Meter Assembly and Cover to mounting studs and
secure with the four 8-32 nuts�
3� Power on the machine�
4� Close the Sub Door and lock the Main Deck Door�

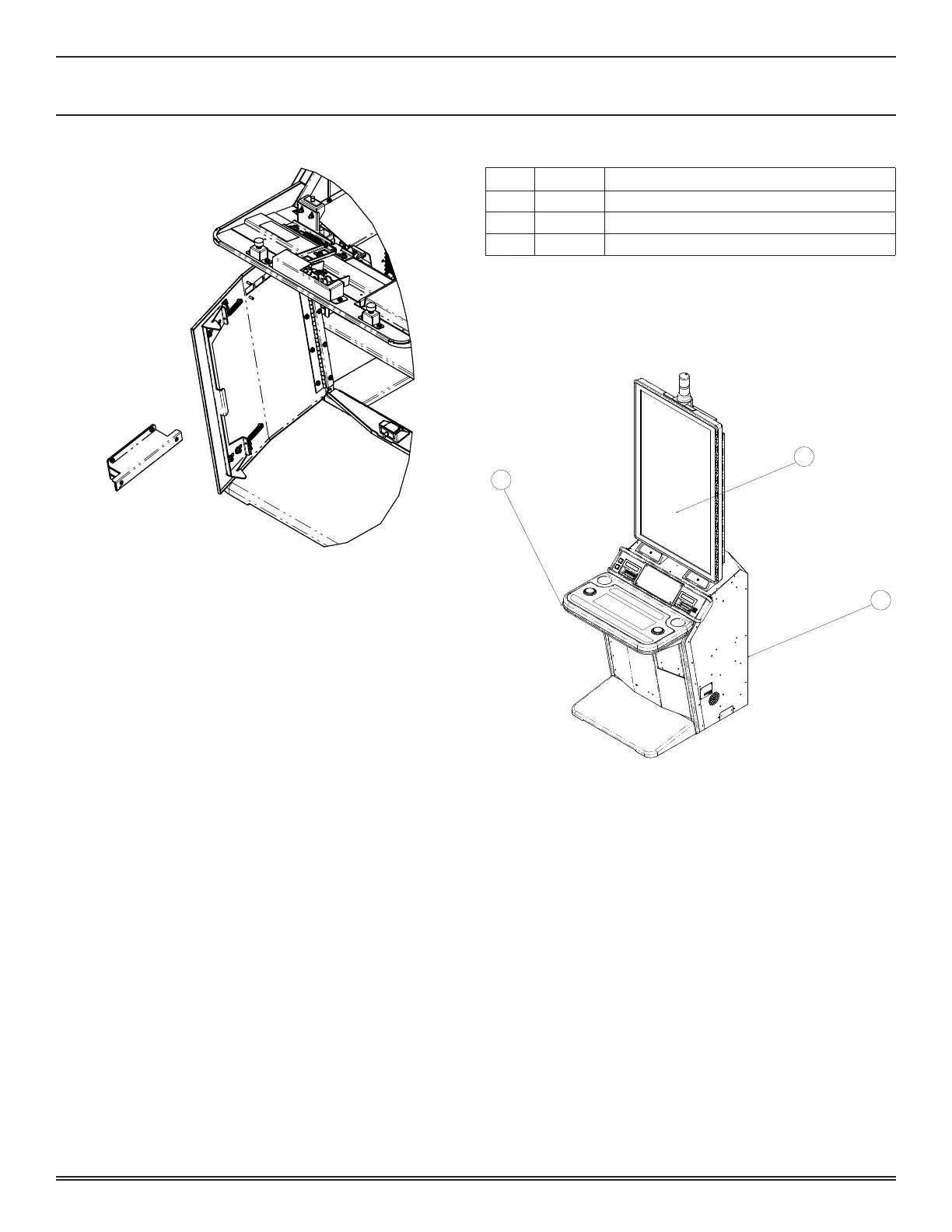

P/N 331532 ASSY, MAIN MACHINE
ITEM PART # DESCRIPTION
1� 331533 ASSY, CABINET
2� 331534 ASSY, DECK
3� 331539 ASSY, LCD
3
2
1
