ConneCtionS
Under typical conditions, CNB35/COM 1 on the backplane
is for interconnection to the SAS Unit, used for the ber
optic interface� CNB36 and CNB37 are used for serial
communications with conventional wiring�
CNB22
USB (SYS)
CNB07
PLAY BUTTON
CNB18 TOUCH SCREEN2
CNB10 TOUCH SCREEN1
CNEX01
EXT BOARD
CNB55 VIDEO3
CNB17 VIDEO2
CNB17 VIDEO1
CNCP01
DC FAN
CNB22
CNB20
JXU (NSW)
VIDEO5
CNB72
VIDEO (SYS)
TEST (SYS)
CNB21
ATU (VIC, QLD)
CNB35
COM1
CNB36
COM2
CNB37
COM3
CNB26
EBUS
10B
CNCP02
10B
CNCP05
10B
CNCP03
CNCP04
10B
CNB23
CNB22
LOGIC SW
DC FAN
10B
CNB05 METER
DOOR SENSOR
DC FAN
CNB06
CNB64
CNB28
CNB13
BILL
CNB29
CNB27 CNB15
CNB08
CNB01
CNB63
CNB02
CNB78
CNB24
CNB53
CNB54TEST
+24V
+12V
+5V
CNB83
USB
CNB22
24V OUT
VIC COMM POW
LINE OUT2LINE OUT1
LED2LED3LED1
LINE IN/ OUT3
DROP
SW
DC FAN
CNB16 REEL
CNB04 ICON
CNB11 COIN
CNB82
CNB14
CNB12 PRINTER
CNB61
CNB62
LAN
CNB03
MAIN
POWER OUT
POWER IN
EXTEND MONITOR
CNB65
EXT UART1 EXT UART2
EXT I / 01 EXT I / 02
VSW
CNB58
CNB85
CNB57
LAN (SYS)
DOOR
CNB35
(COM1)
CNB36
(COM2)
CNB37
(COM3)

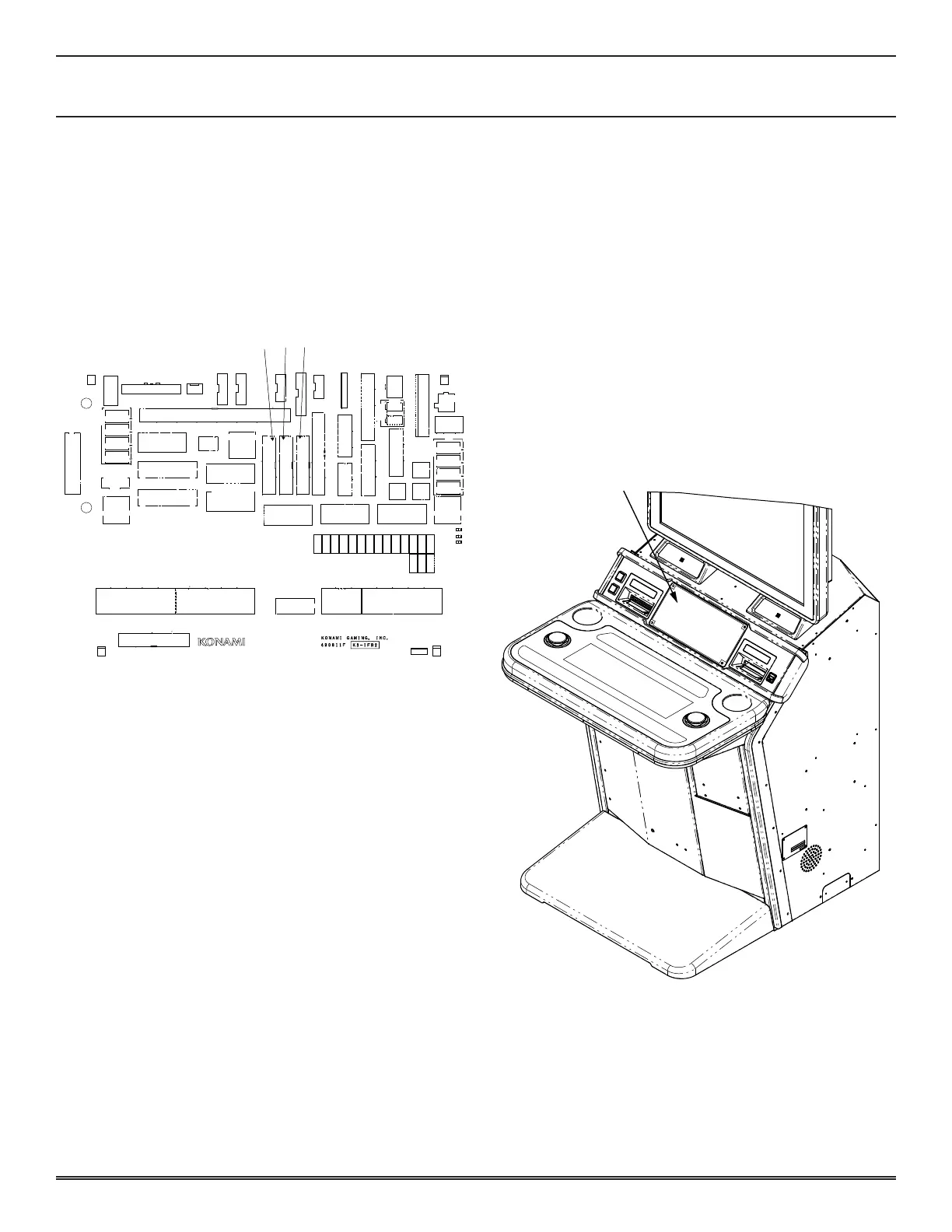

player traCking panel
The SAS components are mounted on a removable bracket
installed on top of the box� Use the following illustration to
remove and install the bracket�
Removal
1� Open the Main Deck Door and turn power off�
2� Remove four 8-32 nuts holding the Player Tracking Panel�
3� Remove Player Tracking Panel from Main Deck�
Installation
1� Install Player Tracking Panel onto Main Deck�
2� Secure with four 8-32 nuts screws�
3� Power on the unit and close Main Deck Door�
