Konami KX43 - P;N 331533 Assy, Cab, Main (Fig� 1

SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-11
3-11 © 2018 Konami Gaming Inc. P/N 810440
KX43
(Original Instructions)

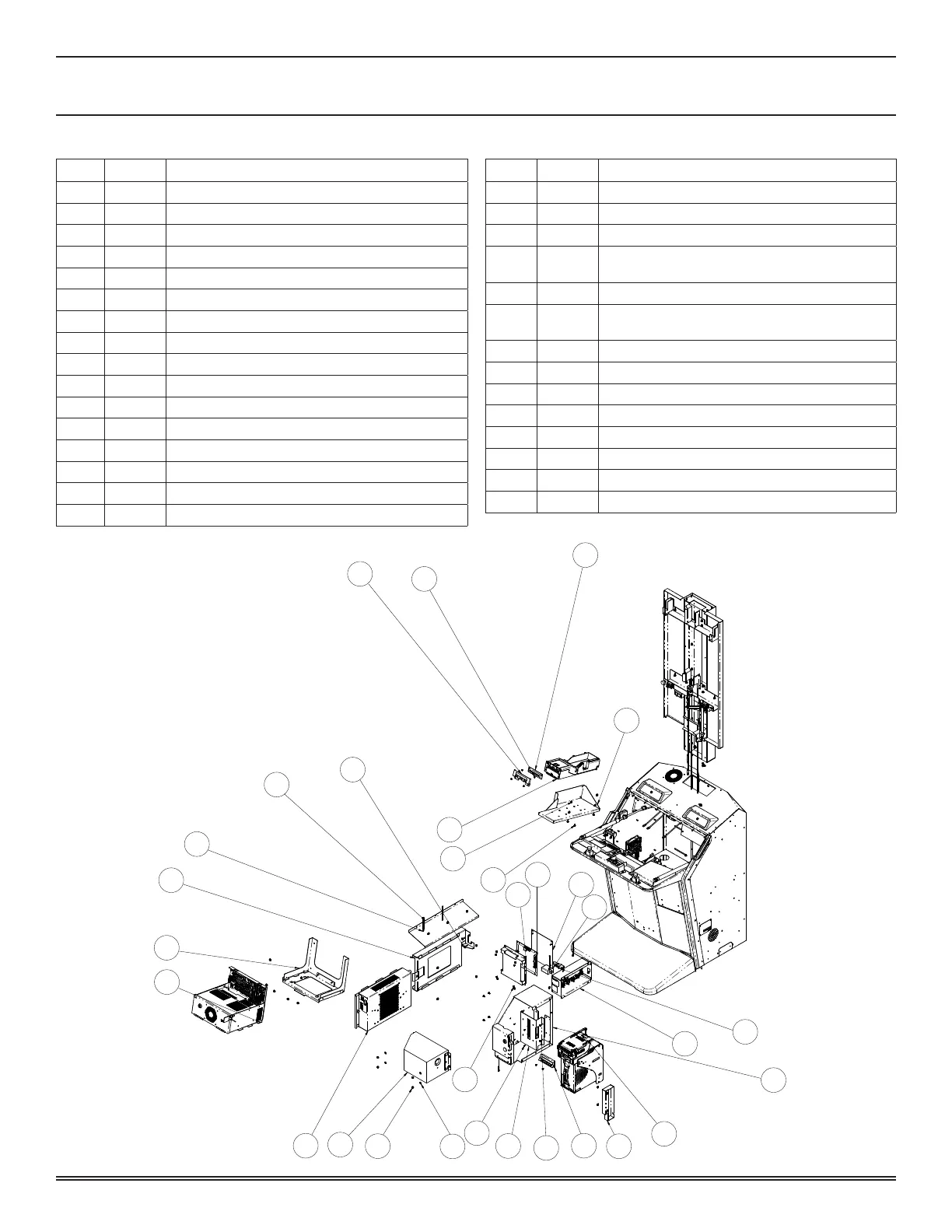

P/N 331533 ASSY, CAB, MAIN (FIG. 1 OF 3)
ITEM PART # DESCRIPTION
15� 192696 BRKT, MTG, CPU HSG
16� 192697 BRKT, MTG, PS HSG
17� 192698 BRKT, MTG, PTR
18� 192736 PNL, MTG, ICON PCB
19� 191737 CVR, ICON PCB
21� 193079 SHIELD, DRIP
24� 193594 PLATE, CVR, TP
25� 192698 BRKT, MTG, PTR
55� 310375 ASSY, BV, JCM IVISION, 1000 NOTE, 72MM
56� 310610 ASSY, PS
57� 310612 ASSY, PNL, PWR CONT
58� 310619 ASSY, ENCL, 4" WOOFER
63� 331328 ASSY, 51, JCM CASHBOX
64� 331374 ASSY, HSG, BV
65� 331375 ASSY, SW, BV DR
66� 331522 ASSY, HSG, CPU
83
24
80
68
82
75
59
19
18
17
21
66
15
16
85
88
76
87
63
82
69
65
55
64
57
58
56
110
111
115
112
ITEM PART # DESCRIPTION
68� 410867 BEZEL, TP
69� 410868 CHUTE, BV, JCM
75� 450016 NUT, HEX KEP, 8-32 (146)
76� 450107
SCREW, SEMS, PAN HEAD PHILLIPS, 4-40 X 1/4
(12)
80� 450122 SCREW, SEMS, PAN HEAD PHILLIPS, M3 X 6 (6)
82� 450128
SCREW, SENS, PAN HEAD PHILLIPS, M4 X 8
(10)
83� 450161 SCREW, CONNECTOR MOUNTING (2)
85� 450176 WASHER, #8 FLAT (10)
87� 450222 SCREW, FLAT HEAD, M3X8 (4)
88� 450282 NUT, HEX, NYLOCK, 8-32 (13)
110� 490078 CORD, AC
111� 490456 CLAMP, VINYL COATED, 3 1/2, BLACK (18)
112� 491013 CHARGER, USB
115� 530735 PCB, PDM2, PDM2-ICON-G
