Konami KX43 - P;N 331522 Assy, Hsg, Cpu; P;N 311017 Assy, Kp 3.5 Main Board (4 K)

SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-22
3-22 © 2018 Konami Gaming Inc. P/N 810440
KX43
(Original Instructions)

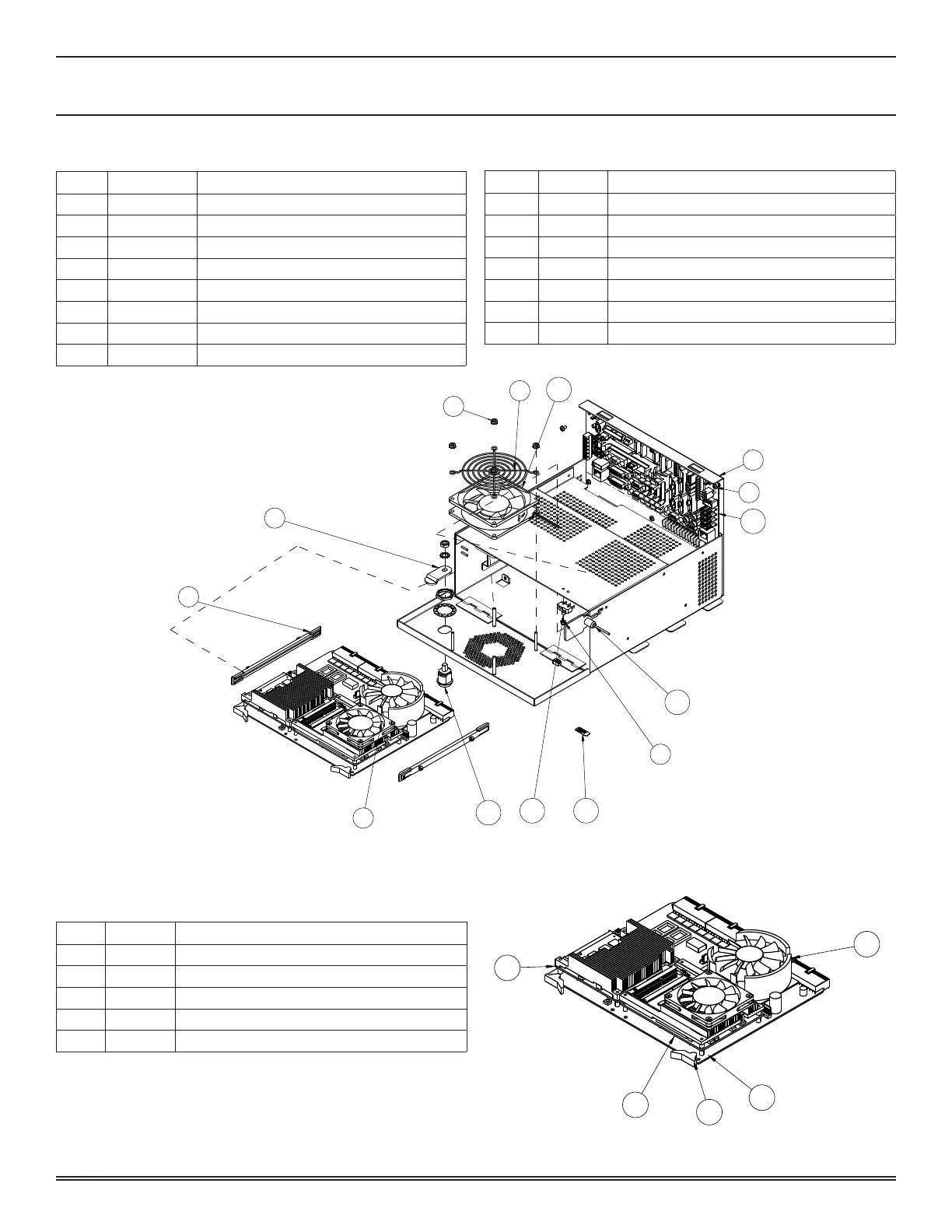

P/N 331522 ASSY, HSG, CPU
1
2
3
4
5
6
7
8
9
10
11
12
13
14
ITEM PART # DESCRIPTION
- 110308 HRNS, KS, LOGIC DOOR SWITCH (N/S)
1� 130965 ASSY, WLDMNT, CPU HSG
2� 190020 CAM, LOCK, CPU DOOR (2)
3� 190070 FAN, GUARD, 3�25” MOUNTING (2)
4� 311017 ASSY, KP3�5, MAIN 4K
5� 450015 NUT, HEX KEP, 6-32 (8)
6� 450110 SCREW, SEMS, PH PHIL, 6-32 X 1/4 (9)
7� 450144 NUT, NYLOK, 2-56 (2)
ITEM PART # DESCRIPTION
8� 450146 GUIDE, PCB, 6IN, HSG, CPU (2)
9� 450490 TAG, SECURITY, RED
10� 490046 SWITCH, OMRON, SBMIN, W/RLR ACTUATOR
11� 490876 LICENSE, WINDOWS EMBEDDED, 7STD, K3�5
12� 530054 FAN, LOGIC BOX, 600mm HARNESS (2)
13� 530689 PCB, PDM2, K3-IFB2, 4K
14� 710000 LOCK, BARREL, �625 LONG (2)
P/N 311017 ASSY, KP 3.5 MAIN BOARD (4K)
2
3
5
4
1
ITEM PART # DESCRIPTION
1� 310963 ASSY, KP3�5, GAME GPU, MXM-II, E9260
2� 311018 SYSTEM CONTROL MODULE
3� 311054 ASSY, CPU, HM920
4� 490568 BATTERY, CR-2032, 3 VOLT (2)
5� 530690 CARRIER BOARD
