Konami KX43 User Manual

SECTION 3 - PARTS, ASSEMBLIES & HARDWARE
1-3-24
3-24 © 2018 Konami Gaming Inc. P/N 810440
KX43
(Original Instructions)

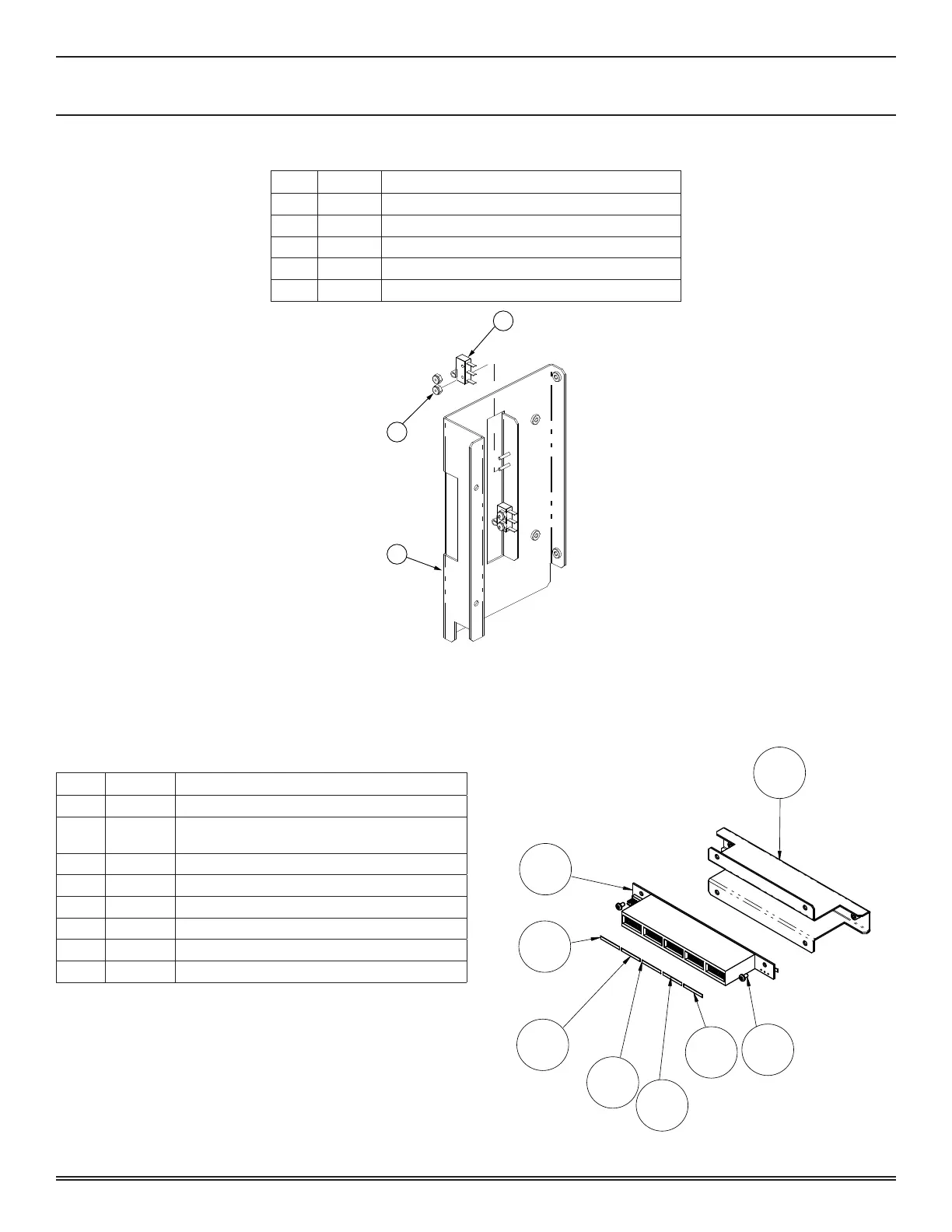

P/N 331328 ASSY, SW, JCM CASHBOX
2
3
1
ITEM PART # DESCRIPTION
- 110055 HRNS, BILL VALIDATOR SW 1, JCM
- 110056 HRNS, BILL VALIDATOR SW 2, JCM
1� 192921 BRKT, SW, CASH BOX
2� 450144 NUT, NYLOK, 2-56 (4)
3� 490046 SW, OMRON, SBMIN, W/ROLLER ACTUATOR (2)
P/N 331536 ASSY, METER
1
3
8
7
6
5
4
2
ITEM PART # DESCRIPTION
1� 193852 BRKT, MTG, BTTM, METER
2� 450110
SCREW, SEMS, PAN HEAD PHILLIPS, 6-32 X
1/4 (2)
3� 530364 PCB, K3-SL, METER
4� 830062 DECAL,METERS,TOTAL IN
5� 830063 DECAL, METERS, TOTAL OUT
6� 830064 DECAL, METERS, COIN TO CASHBOX
7� 830065 DECAL, METERS, JACKPOT BALANCE
8� 830066 DECAL, METERS, TOTAL BILL
