SECTION 2 - SET-UP
-2-1
2-1 © 2018 Konami Gaming Inc P/N 810440
KX43
(Original Instructions)
SECTION 2
Set-Up
OVERVIEW
This section describes the installation and set-up of the
machine� This section covers the following topics:
Physical Specications
Environmental Specications
Unpacking and Inspecting
Candle (Signal Tower) Installation
Drop Box Door Switch Connection
Slot Accounting System Connections
Cabinet Installation
Opening and Closing Doors
Changing Locks
Bill Validator Option
Player/Operator Interface
Startup

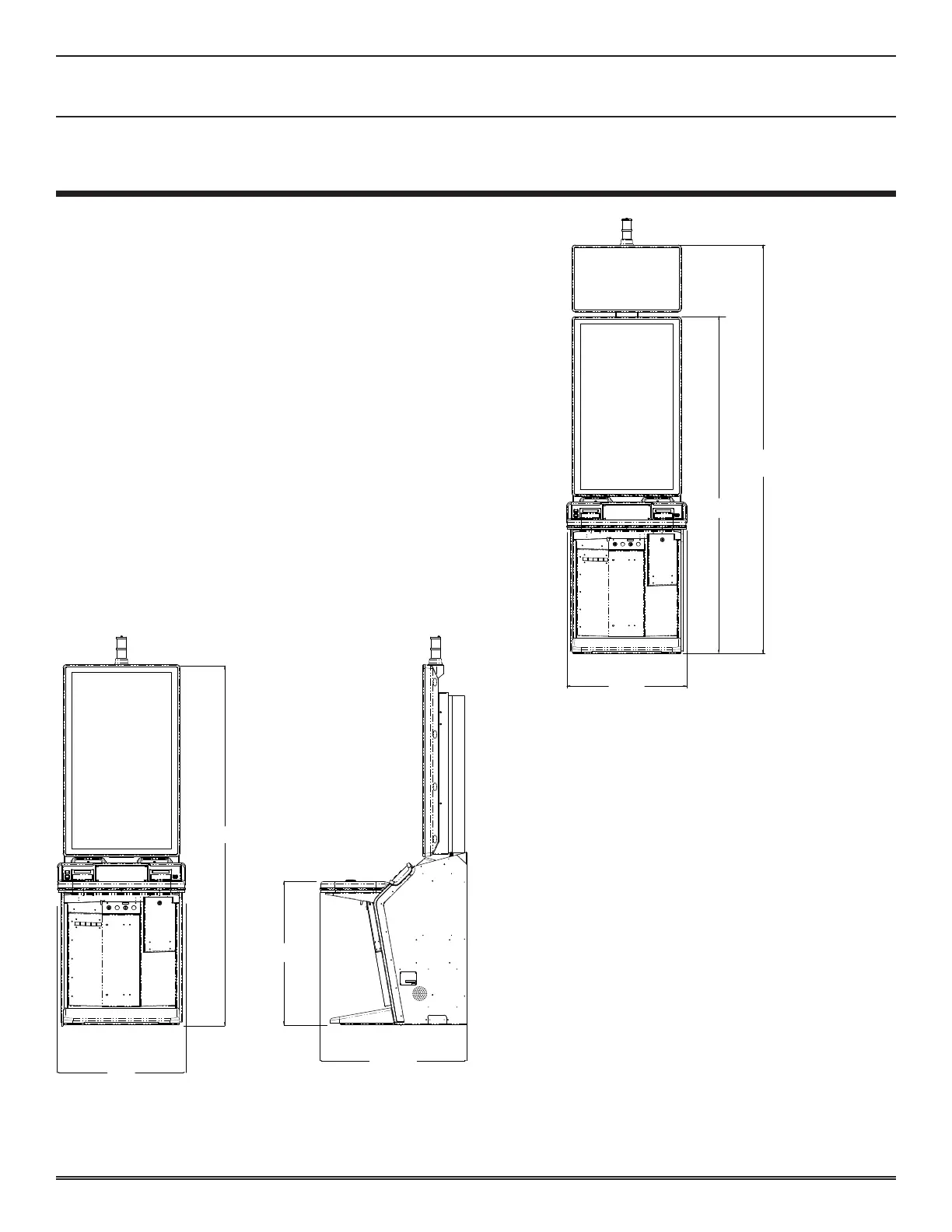

HEIGHT
WIDTH
HEIGHT AT DECK
DEPTH
AT DECK
HEIGHT
WITH TOPPER
WIDTH
HEIGHT
PHYSICAL SPECIFICATIONS
Cabinet SpeCiFiCationS
Height (±0�15") 75�84" 192�6 cm
Height with optional Topper
(±0�15")
91�98 233�6 cm
Height at Deck (±0�15") 30�10" 76�5 cm
Depth at Deck (±0�15") 30�93" 78�6 cm
Width (±0�15") 27�00" 68�6 cm
Weight (±5 lb) 340 lb 154�2 kg
Weight with optional Topper
(±5 lb)
370 lb 167�8 kg
ENVIRONMENTAL SPECIFICATIONS
Line Voltage Input: 100–240 VAC, 50 or 60 Hz�
The following calculations are based on an input voltage of
120 VAC:
Power supply input voltage: 110 VAC: 108–120 VAC
(nominal 120 VAC) at 50/60 Hz�
