bizhub 501/421/361
3. PERIODIC CHECK
71
Field Service Ver.2.0 Mar. 2009
3.13 Maintenance procedure of the registration section
3.13.1 Cleaning the paper dust removing brush
A. Periodic cleaning cycle
• Paper dust removing brush : Every 250,000 prints *1
: Every 225,000 prints *2
*1 501/421
*2 361
B. Procedure
1.
Open ADU.
(See P.138)
2.
Open the conveyance unit.
(See P.29)
3.
Remove the developing unit from the main body.
(See P.37)
4.
Remove the drum unit from the main body.
(See P.29)
5.
Remove the suction cover /2 assy.
(See P.42)
6.

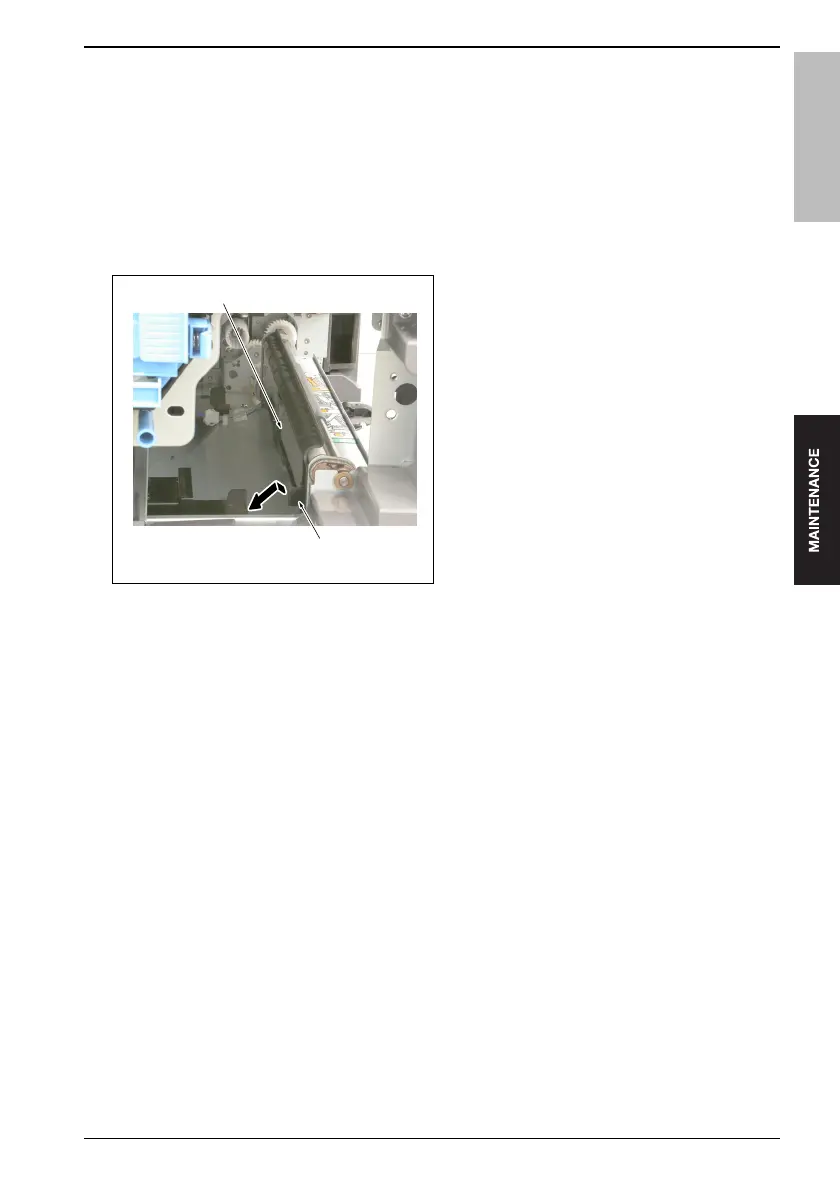

With the lever [1] pulled, remove the paper dust
removing brush [2] and clean the paper dust
removing brush with a blower brush.
7.
Reinstall the above parts following the removal
steps in reverse.
50gaf2c174na
[1]
[2]
To Next Page
