6. OTHERS
136
Field Service Ver.2.0 Mar. 2009
bizhub 501/421/361
5.

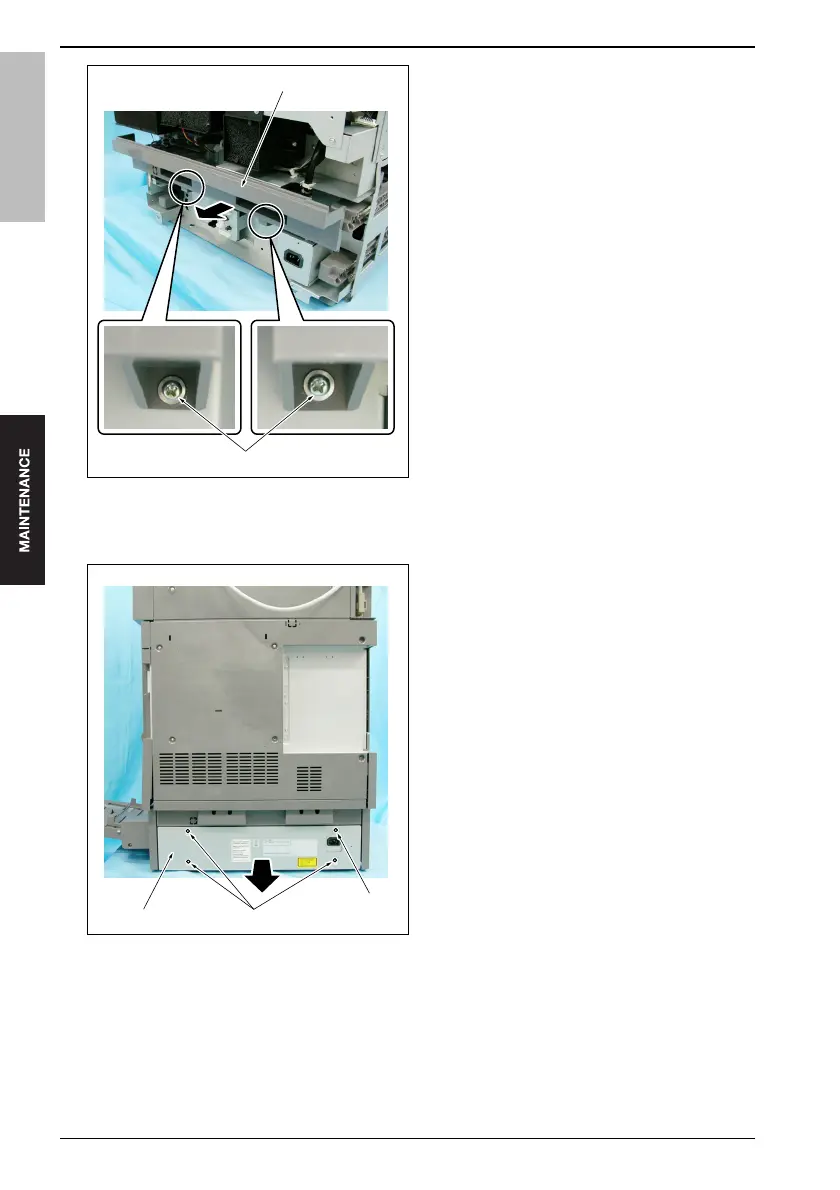

Remove the 2 screws [1] and then remove the
rear cover /2 [2].
6.
Reinstall the above parts following the removal
steps in reverse.
6.3.3 Removing/reinstalling the rear cover /3
A. Procedure
1.
Remove the screw [1].
Note
• The screw [1] is attached with the washer [2].
Be careful that it does not get lost.
2.
Remove the 3 screws [3] and then remove the
rear cover /3 [4].
3.
Reinstall the above parts following the removal
steps in reverse.
50gaf2c051na
[1]
[2]
50gaf2c052na
[3][4]
[1][2]
