bizhub 501/421/361
6. OTHERS
133
Field Service Ver.2.0 Mar. 2009
6.1.5 Registration section
(1) Parts not allowed to be removed
• 2 screws of registration unit fixing plate.
(2) Reason for prohibition
The registration unit fixing plate is arranged to fix the registration unit firmly and to adjust the appropriate dis-
tance between the registration clutch gear and the destination gear. The distortion of the registration unit may
result in the irregularity of pitches. They are adjusted to an appropriate value in advance. Therefore, do not
remove these fixing screws.

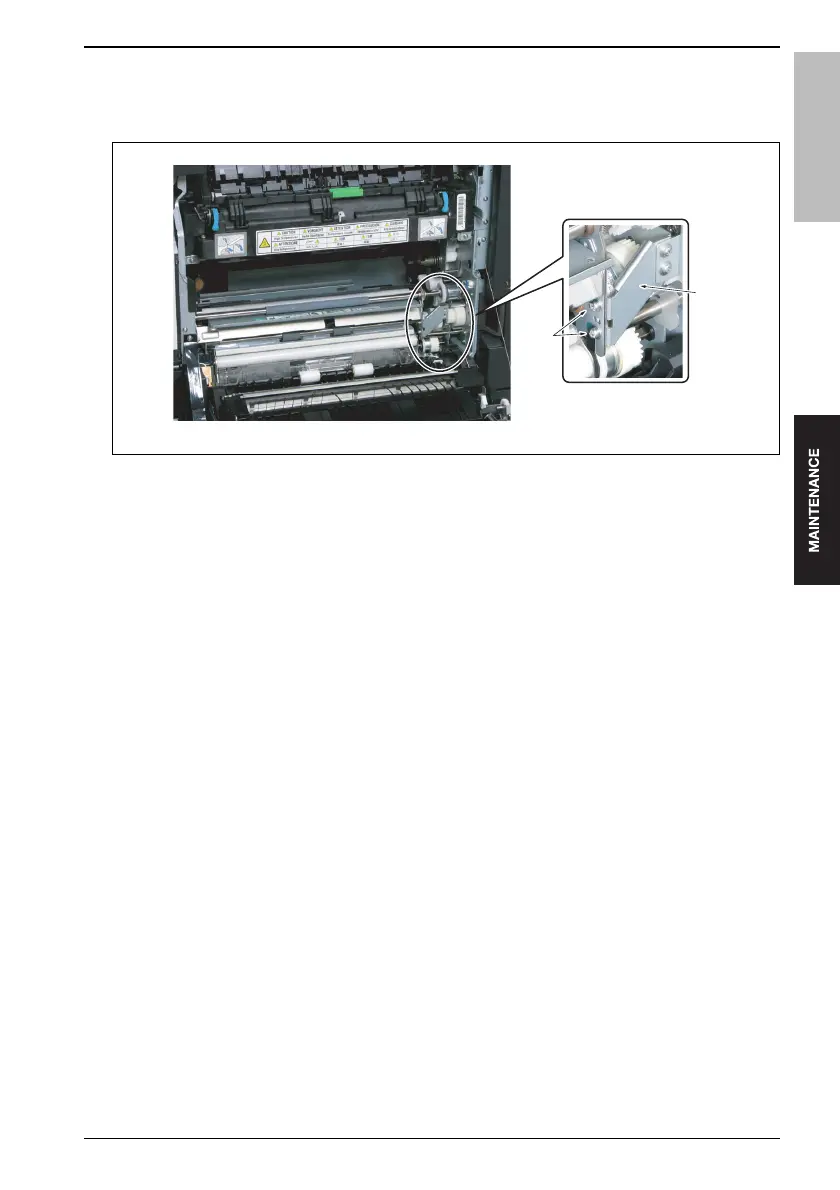

[1] Screws not allowed to be removed [2] Registration unit fixing plate
[2]
[1]
a0r5f2c003ca
