Field Service Ver.1.0 May. 2008 3. OTHER
5
SD-507
3.2 Disassembling and assembling list
3.3 Disassembling and assembling procedure

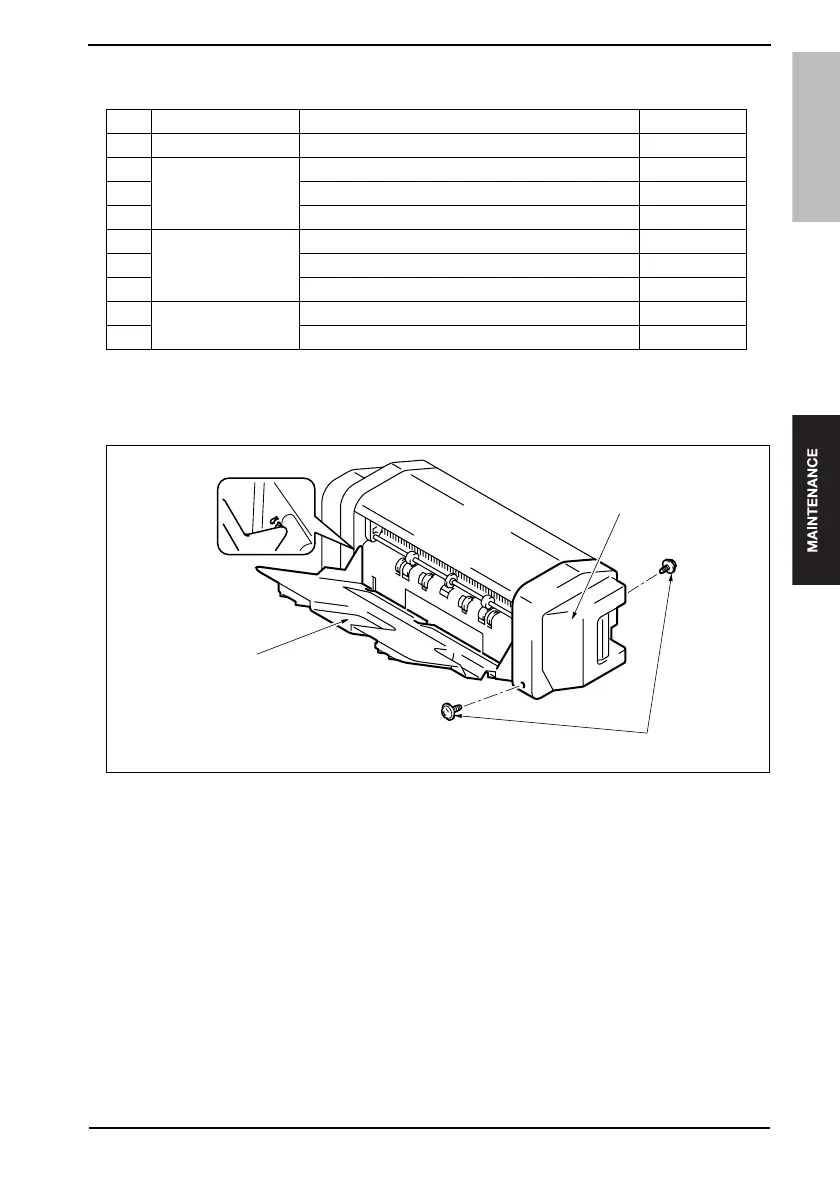

3.3.1 Paper Output Tray/Front Cover
1. Align the cutout and remove the Paper Output Tray [1].
2. Remove two screws [2], and remove the Front Cover [3].
3. Reinstall the above parts following the removal steps in reverse.
No. Section Part name Ref.Page
1 Paper Output Tray Paper Output Tray P. 5
2
Cover
Front Cover P. 5
3 Upper Cover P. 6
4 Rear Cover P. 6
5
Unit
Saddle Unit P. 7
6 Folding Unit P. 8
7 Stapler Unit P. 9
8
Others
Paper Guide Motor (M13) P. 1 4
9 Folding Roller P. 1 8
[1]
[3]
[2]
4511f2c004na
To Next Page
