Konica Minolta bizhub 361 Service Manual

4. SERVICE TOOLS
98
Field Service Ver.2.0 Mar. 2009
bizhub 501/421/361

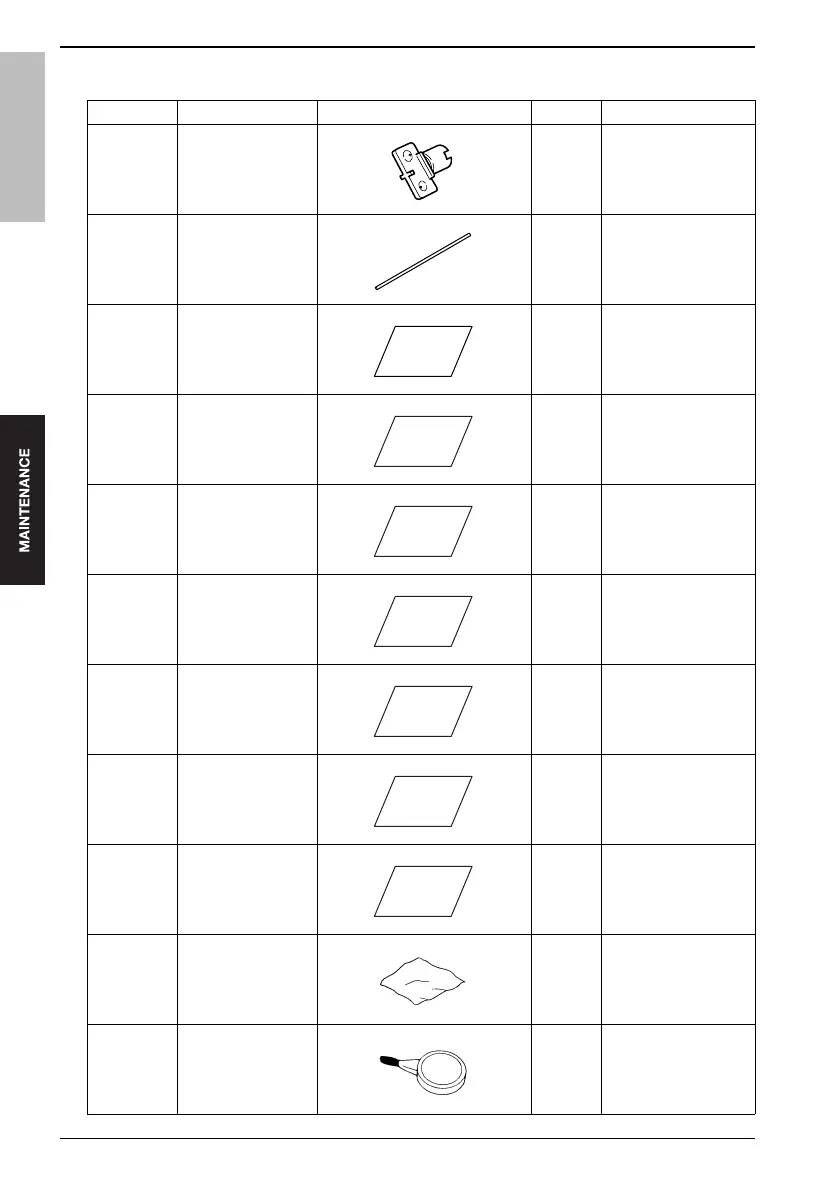

4.2 Jig list
Parts No. Name Shape Quantity Remark
26NA2134 Drum rotation mem-
ber
1 Mounted to the drum
unit
26NAJG01 Optic unit positioning
jig
2
4040PJP1 Test chart
(A3 size)
1 With a KONICA
MINOLTA logo
4040PJP3 Test chart
(A3 size)
1 Without a KONICA
MINOLTA logo
4040PJP2 Test chart
(11 x 17 size)
1
120A9711 Adjustment chart
(A3 size)
1For DF adjustment
120AJG02 Adjustment chart
(11 x 17 size)
1For DF adjustment
120A9712 White chart
(A4 size)
1For DF adjustment
120AJG03 White chart
(8
1
/2 x 11 size)
1For DF adjustment
00VC-2-0 Drum cover 1
00VD-100 Blower brush 1
