3. OTHER Field Service Ver.1.0 May. 2008
8
SD-507

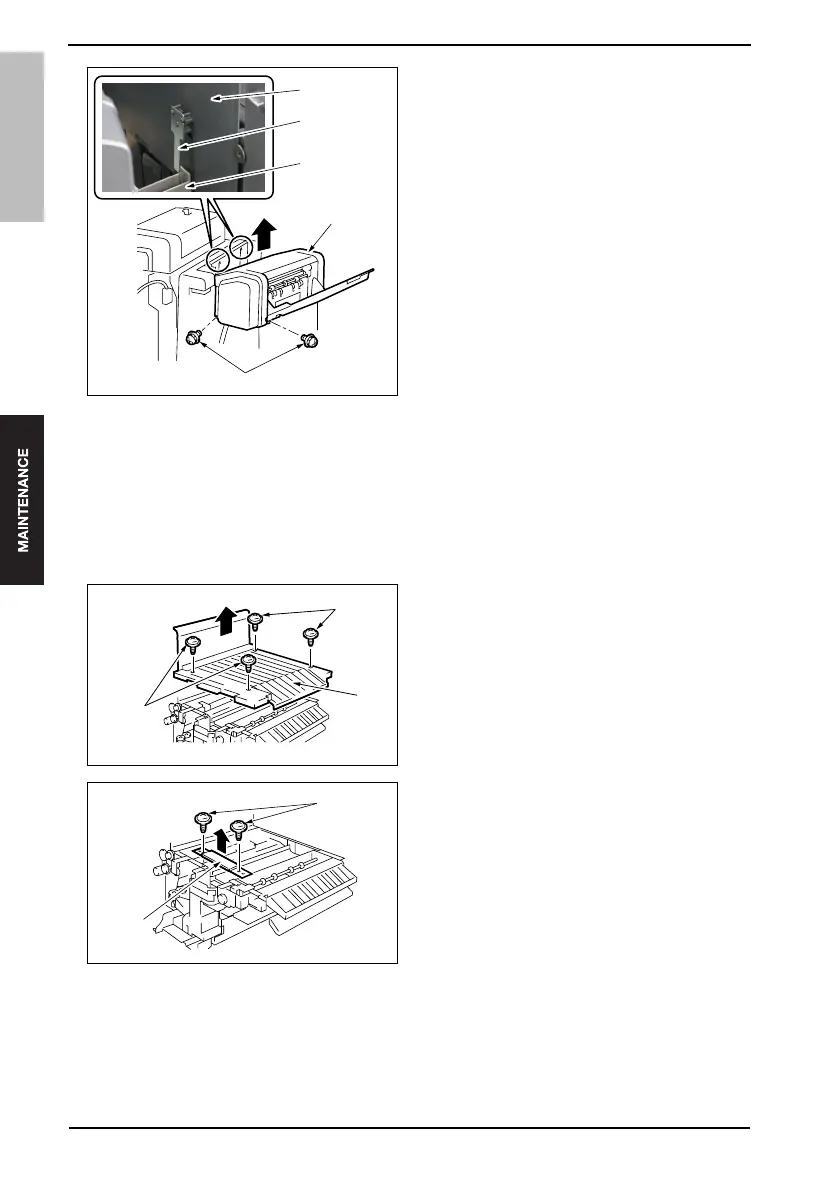

7. Remove two screws [10].
8. Pull up the Shutter [11], remove the two
Claws [12] from the hole [13] and
remove the Saddle Unit [14].
9. Reinstall the above parts following the
removal steps in reverse.
3.3.5 Folding Unit
1. Remove the Saddle Unit.
(See P.7)
2. Remove the Lift Tray.
(See P.13 in "Field Service FS-522/PU-501/OT-602")
3. Remove the Horizontal Conveyance Unit.
(See P.13 in "Field Service FS-522/PU-501/OT-602")
4. Remove four screws [1], and remove the
Horizontal Conveyance Upper Cover [2].
5. Remove two screws [3], and remove the
Reinforcement Plate [4].
4511f2c011nb
[10]
[14]
[11]
[13]
[12]
[1]
[1]
[2]
4511f2c012na
[3]
[4]
4511f2c013na
To Next Page
