DF-613
3.2 Disassembling and assembling list
3.3 Disassembling and assembling procedure

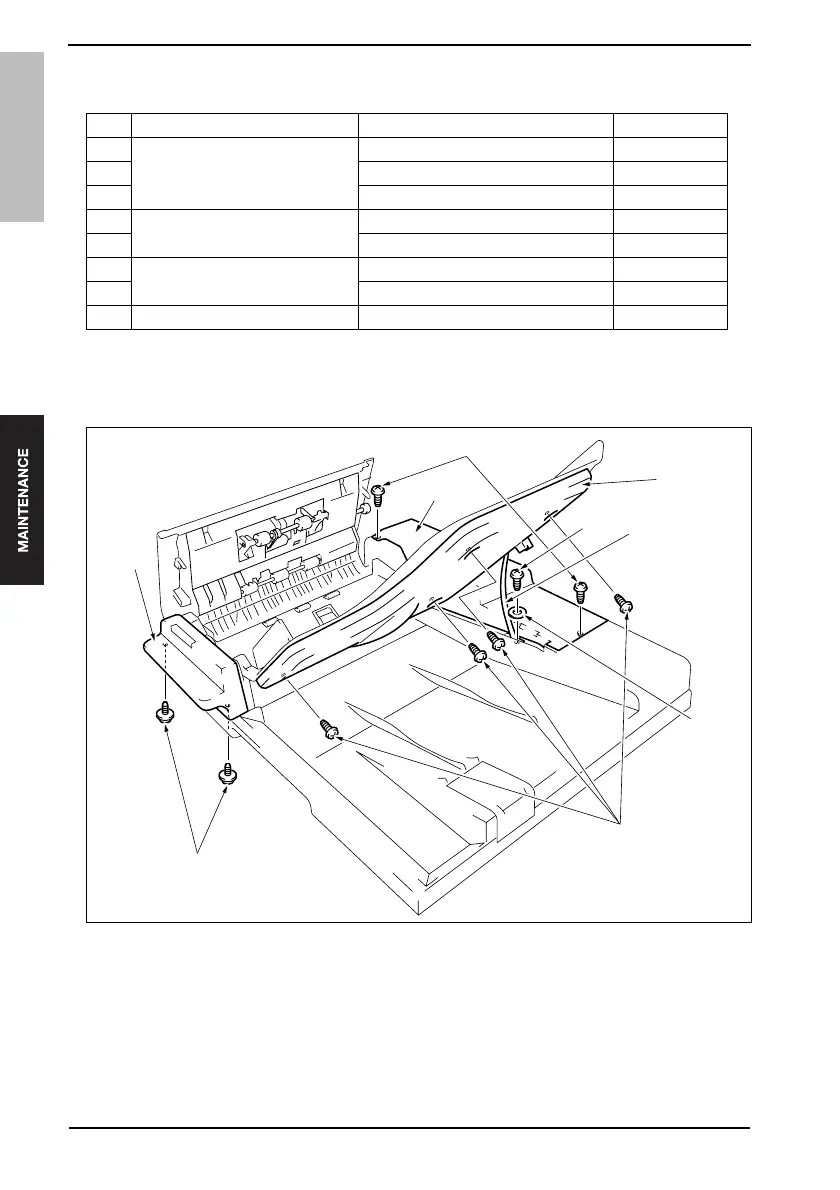

3.3.1 Cover /Fr, Cover /Rr and Original Feed Tray Cover /Lw
1. Remove two screws [1], and remove the Cover /Fr [2].
2. Remove the 2 Screws [3] and raise the Original Feed Tray. Open DF to release the Lock
Claws (at 2 places) and then remove the Cover /Rr [4].
3. Remove the screw [5] and the washer [6], and remove the stopper [7].
4. Lift up the Original Feed Tray.
5. Remove four screws [8], and remove the Original Feed Tray Cover /Lw [9].
6. Reinstall the above parts following the removal steps in reverse.
No. Section Part name Ref.Page
1
Cover
Cover /Fr P. 1 4
2Cover /RrP. 1 4
3 Original Feed Tray Cover /Lw P. 1 4
4
Board and etc.
DF Control Board (DFCB) P. 1 5
5 Original Size VR (VR1) P. 1 5
6
Others
Complete Stamp Unit 2 P. 1 7
7 Replace Stamp 2 P. 1 8
8 DF DF main body P. 1 9
[8]
[9]
[1]
[3]
[4]
[5]
[6]
[7]
[2]
