7.1 Screen display
7.1.1 Measuring value display

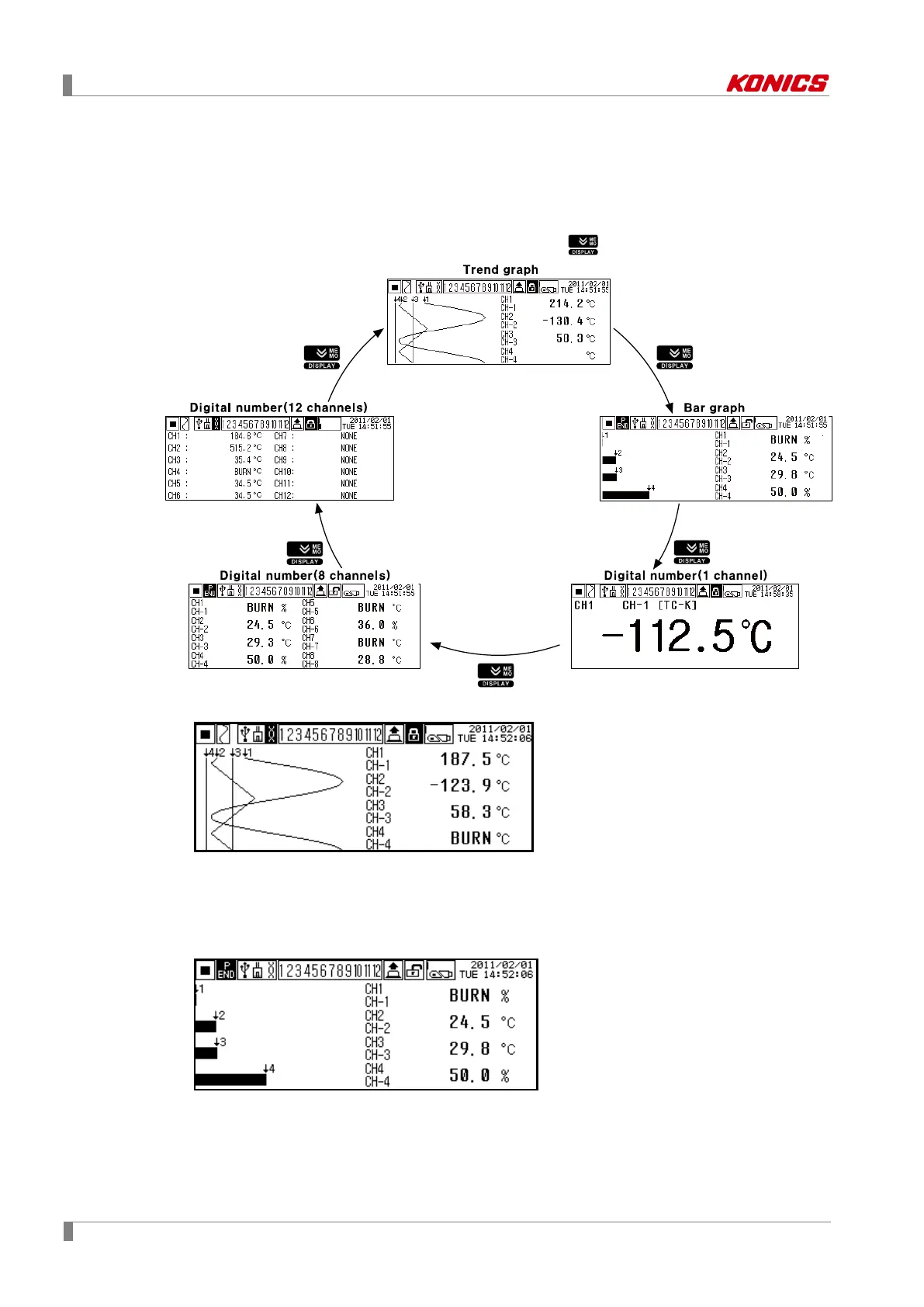

KRN100 displays measuring value as trend graph, bar graph, and digital number display(1
channel, 8 channels, 12 channels). You can select one by k ey.
(1) Trend graph
Displays input measuring value of each channel as trend graph (left) and digital number
(right).
4 channels are displayed per one screen. To switch channel, please refer to “7.1.2 Channel
switch".
(2) Bar graph
Displays input measuring value of each channel as bar graph (left) and digital number (right).
You can easily check present measuring value within the set display range as level (%).
4 channels are displayed per one screen. To switch channel, please refer to “7.1.2 Channel
switch".
