(2) Record Mode(Record mode) is Digital
It records alarm ON channel, data information, alarm abbreviation, time with the set record
color of corresponding channel.

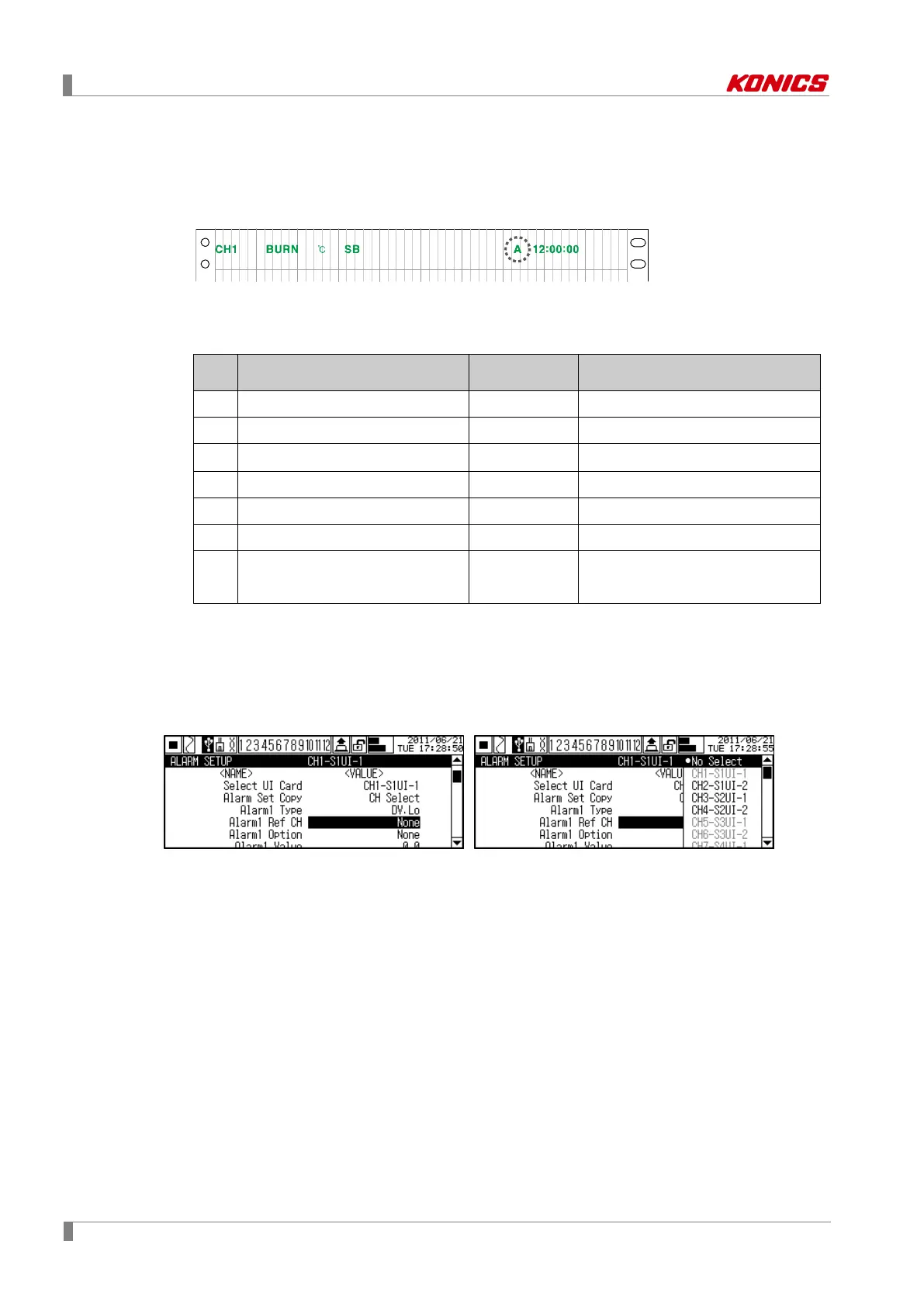

In front of ON time, as below, ‘A’ is marked to mean the data by alarm.
After alarm recording, if it maintains same alarm or alarm is cleared, it does not record the
relevant data.
In case of record by digital memo, it prints alarm abbreviation of occurring alarm as below.
No. Name
Alarm
abbreviation
Note
1 Absolute value upper limit alarm PH -
2 Absolute value lower limit alarm PL -
3 Deviation upper limit alarm DH -
4 Deviation lower limit alarm DL -
5 Input break alarm SB -
6 No recording paper PE -
7 Several alarm ON AL
It is used when printing 2
channels in one line.
 Set range: OFF ↔ PV.Hi ↔ PV.Lo ↔ DV.Hi ↔ DV.Lo ↔ SBA ↔ P. E n d
 Factory default
Alarm1 Type: PV.Hi, Alarm2 Type to Alarm4 Type: None
8.2.4 Alarm□ Ref Channel(Alarm□ reference channel)
Designate reference channel which is standard of deviation upper limit alarm(DV.Hi) or deviation
lower limit alarm(DV.Lo).
If display value of relevant channel is lower than the display value of set reference channel,
deviation upper limit alarm or deviation lower limit alarm turns ON.
This parameter is activated when Alarm□ Type(Alarm operation mode) is set as deviation upper
limit alarm(DV.Hi) or deviation lower limit alarm(DV.Lo).
 Set range: None / CH□-S□UI-□
 Factory default: -
