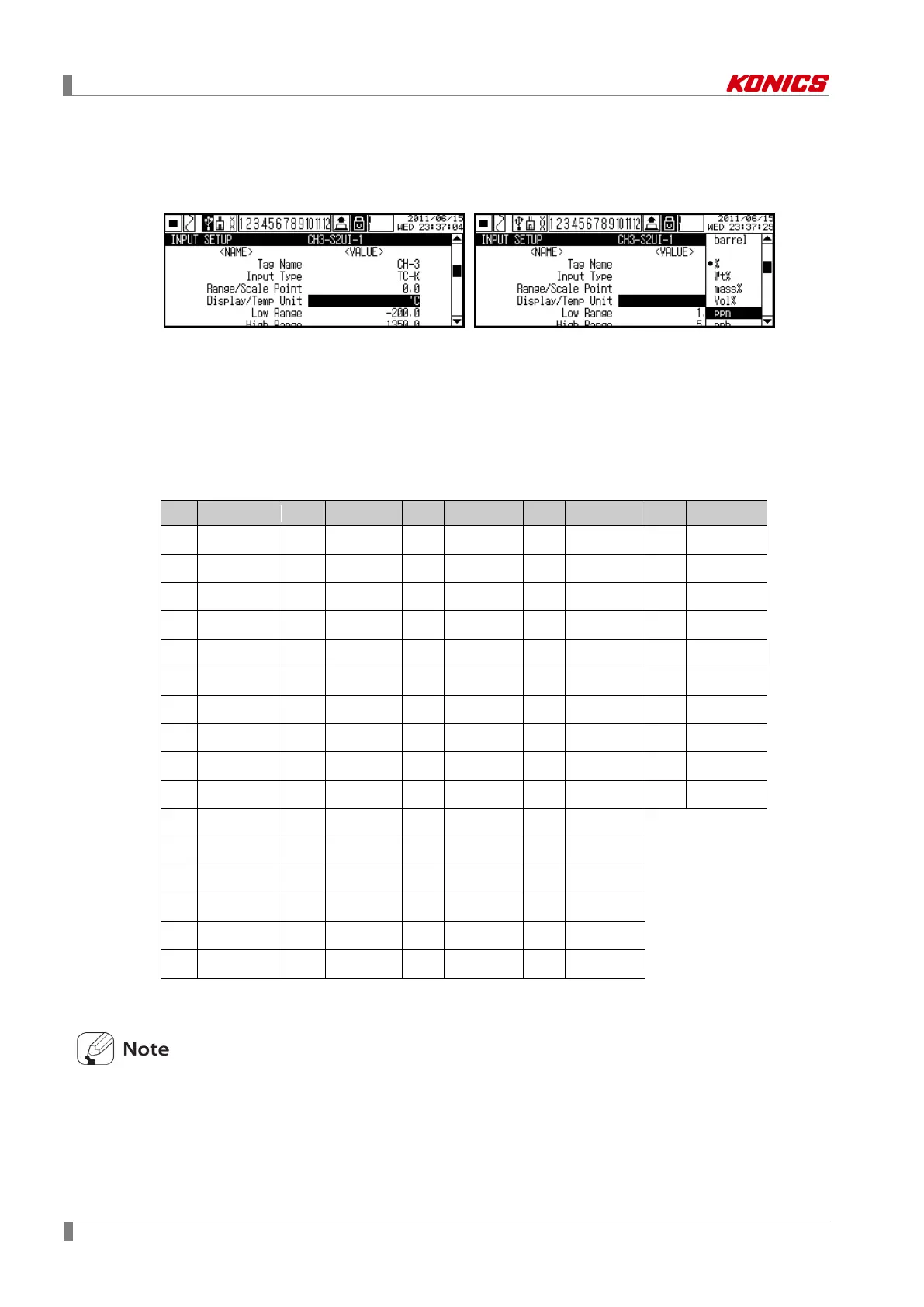

8.1.9 Display/Temp Unit (Display unit/Temperature unit)
In case Input Type(Input specification) is temperature sensor(thermocouple, RTD), temperature
unit is activated. In case analog(current, voltage), display unit is actiaved.
 Set range
In case Input Type(Input specification) is
temperature sensor(thermocouple, RTD): ℃ ↔ ℉ ↔ ˚K
In case analog : Refer to below table.
 Factory default: ℃
Set range in case analog (current, voltage)
No Unit No Unit No Unit No Unit No Unit
1 °C 17 % 32 V 48 mA
64 User0
2 °F 18 Wt% 33 mV 49 A
65 User1
3 °K 19 mass% 34 µV 50 kg/cm
2
66 User2
4 Kcal/m
3
20 Vol% 35 kV 51 Pa
67 User3
5 Kcal 21 ppm 36 □ 52 kPa
68 User4
6 cal 22 ppb 37 m□ 53 MPa
69 User5
7 j 23 mol 38 µ□ 54 N/m
2
70 User6
8 Btu 24 Blank 39 s 55 N/mm
2
71 User7
9 l 25 lx 40 µs 56 inH
2
O
72 User8
10 ml 26 cd 41 VA 57 mmH
2
O
73 User9
11 t 27 lm 42 W 58 bar
12 gal 28 cd/m
2
43 kW 59 Torr
13 lb 29 rpm 44 MW 60 mmHg
14 oz 30 Hz 45 Var 61 mmAq
15 barrel 31 m
2
/s 46 kVar 62 psi
16 - 32 cp 47 MVar 63 Blank
You can use user-defined unit image by selecting user-defined (User0 to User9) unit. Please
refer to ‘9.3.2 User unit setting’.
The unit with multiplier such as kg/cm
2
or complicated unit may be printed in low quality due to
low print resolution.
