8 Parameter detail setup

8.2.9 Alarm□ Alarm No(Alarm□ output alarm number)

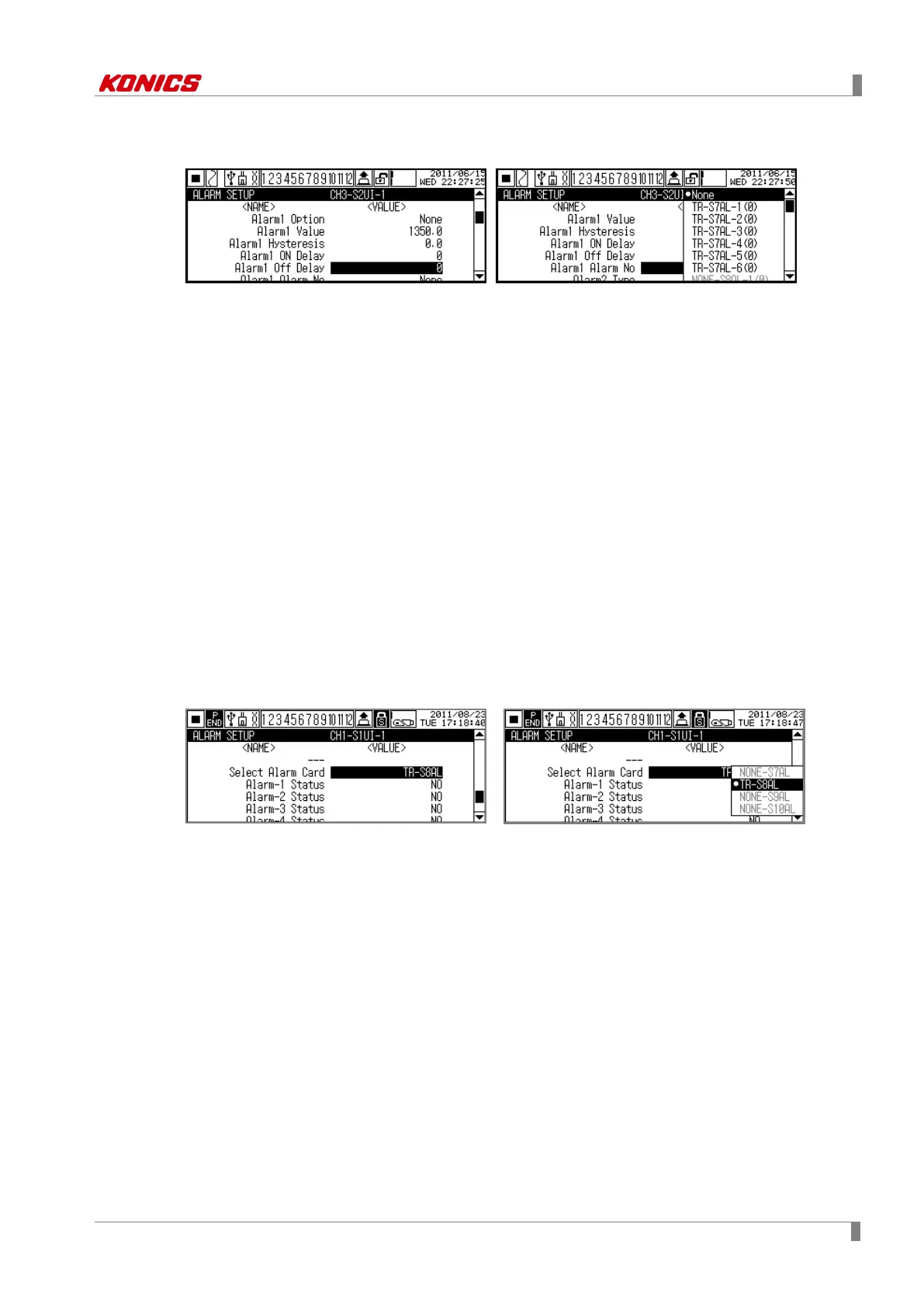

Select alarm output number to output alarm in alarm ON.

If the setting as ‘None’ and when alarm operation occurs, it displays alarm on the screen and

records alarm operation mode, and alarm occurrence time on recording paper, but it does not

output alarm.

There are two alarm output types; TR and RELAY output. KRN recognizes automatically the

connected type and displays it.

In this parameter, TR output type is displayed as TR-S□AL-□(□), and RELAY output type is

displayed as RELAY-S□AL-□(□).

These parameter’s meaning is as below.

S□: The number of module connected SLOT,

AL-□: Alarm output channel number,

Number in parenthesis ‘(□)’: the number of designated alarm as output in the specified channel

 Set range: None / □-S□AO-□(□)

 Factory default: None

8.2.10 Select Alarm Card(Select alarm output card)

Select alarm output card(KRN-AR4, KRN-AT6) to set output type (Normally Open, Normally

Closed) of alarm output. In front of output card name, RELAY or TR abbreviation is displayed for

easy to know connected module type when selecting output card.
