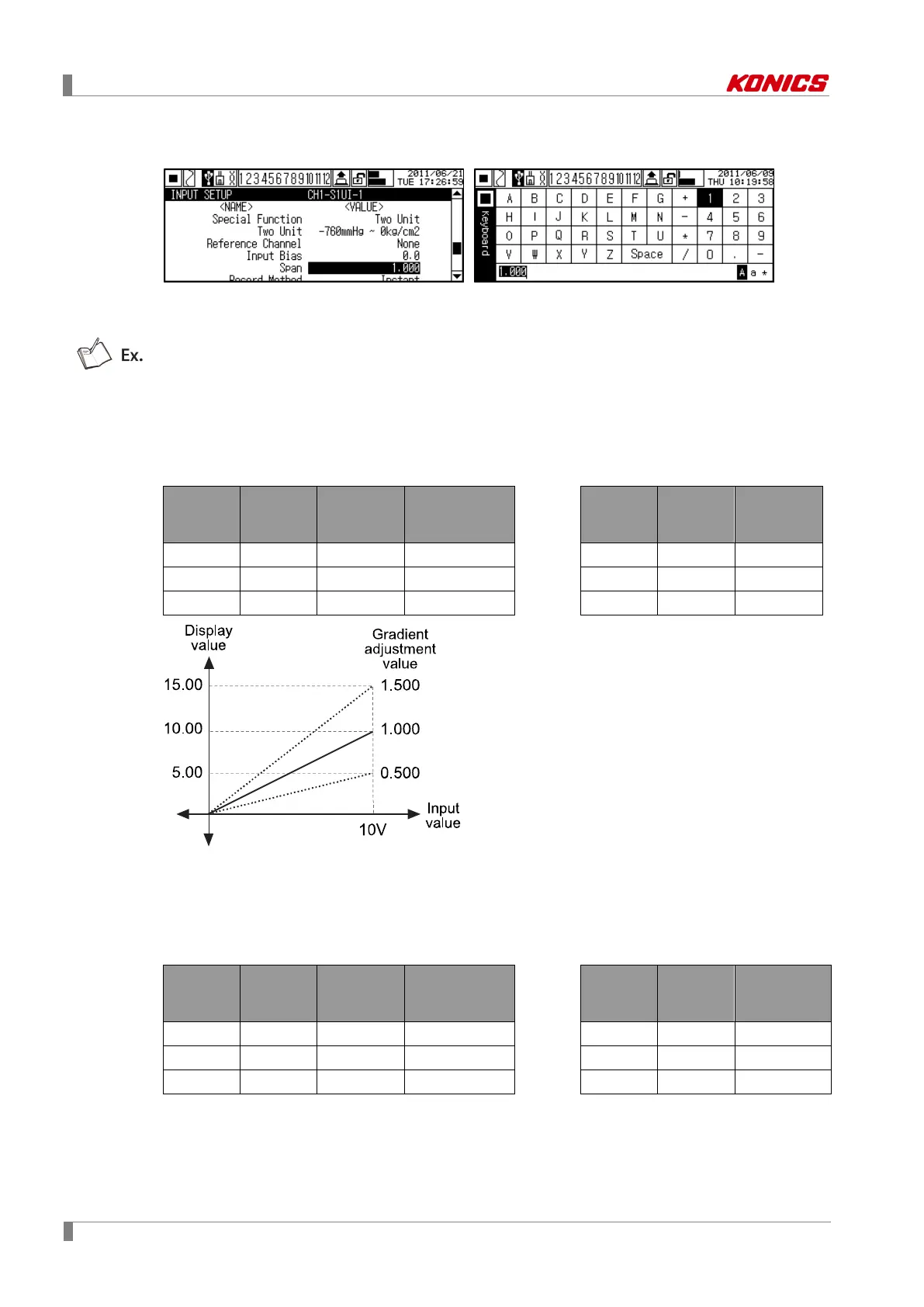

8.1.15 Span (Gradient adjustment)
This menu is for adjusting upper limit error by regulating display value which is about measuring
value or applied scale.
In case Low Scale(Lower limit scale value) and High Scale(Upper limit scale value) are fixed,
and Span (Gradient adjustment) is only set. When Input range is 0 to 10V, Low Scale(Lower limit
scale) value is 0.00, and High Scale(Upper limit scale) value is 10.00.
If changing gradient adjustment value as 0.500, 1.000 or 1.500, display value by each changed
gradient adjustment value is below.
Lower
limit scale
value
Upper
limit scale
value
Gradient
adjustment
value
Range of
display value
Same
result
=
Lower
limit scale
value
Upper
limit scale
value
Gradient
adjustment
value
0.00 10.00 0.500 0.00 to 5.00 0.00 5.00 1.000
0.00 10.00 1.000 0.00 to 10.00 0.00 10.00 1.000
0.00 10.00 1.500 0.00 to 15.00 0.00 15.00 1.000
In case Low Scale(Lower limit scale value) and High(Upper limit scalevalue) are fixed, and Span
(Gradient adjustment) is only set (reverse gradient). When Input range is 0 to 10V, Low
Scale(Lower limit scale) value is 10.00, High Scale(Upper limit scale) value is 0.00.
If changing gradient adjustment value as 0.500, 1.000, or 1.500, display value by each changed
gradient adjustment value is below.
Lower
limit scale
value
Upper
limit scale
value
Gradient
adjustment
value
Range of
display value
Same
result
=
Lower
limit scale
value
Upper
limit scale
value
Gradient
adjustment
value
10.00 0.00 0.500 10.00 to 5.00 10.00 5.00 1.000
10.00 0.00 1.000 10.00 to 0.00 10.00 0.00 1.000
10.00 0.00 1.500 10.00 to -5.00 10.00 -5.00 1.000
