8.1.12 Special Function (Special function)
It dispalys the applied measuring value of the set special function.
Depending on Input Type(Input specification), appliable special function is different.
 Set range
When input type(input specification) is
temperature sensor (thermocouple, RTD): None ↔ Difference
analog (voltage, current): Linear ↔ Root ↔ Squre ↔ Two Unit (Two Unit is displayed
when Input Type (input specification) is set as 0 to 20 ㎃, 4 to 20 ㎃.)
 Factory default: None

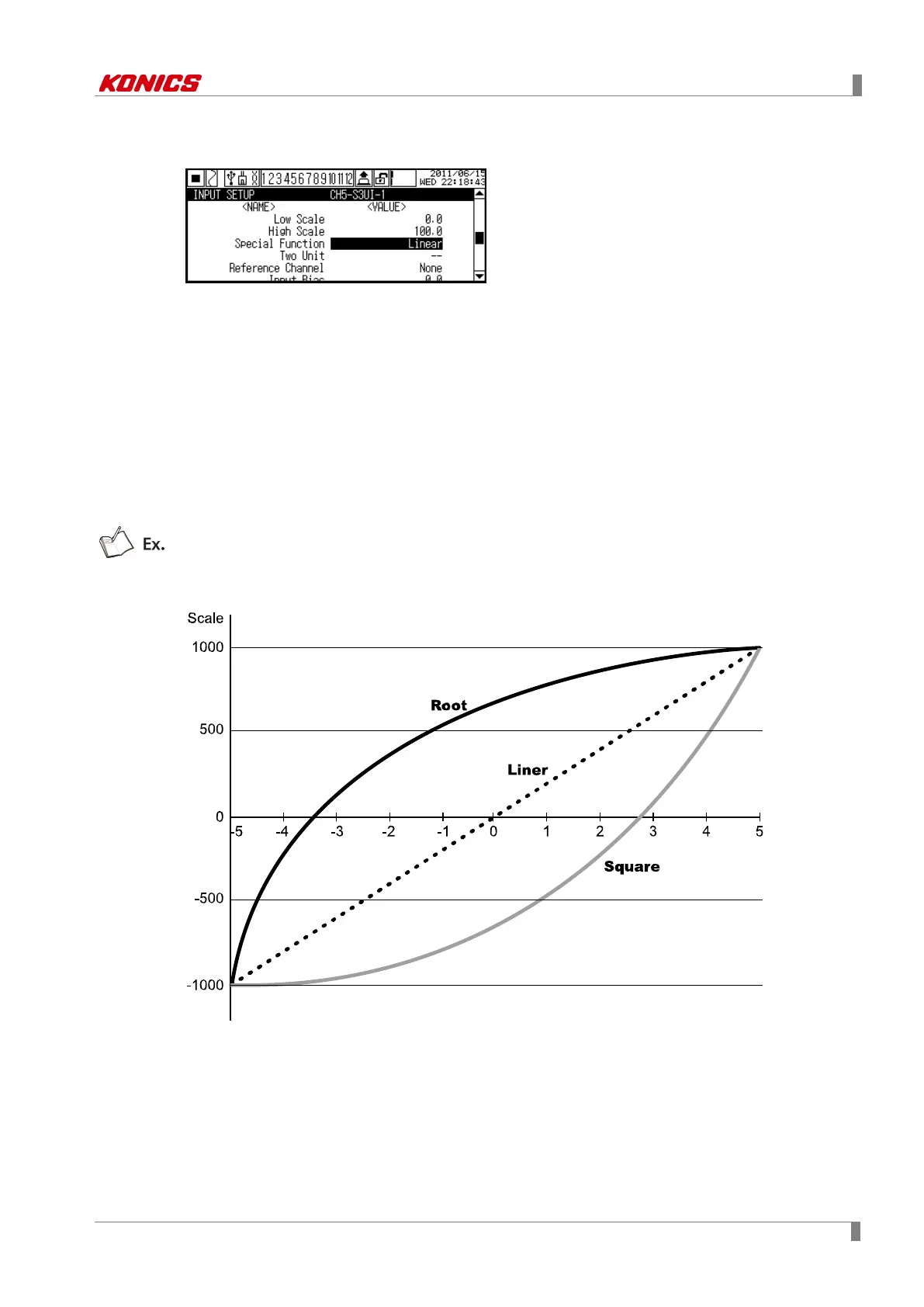

Below graph’s patterns are liner, root, square for analog input.
Lower limit input value: -5V, Upper limit input value: +5V, Lower limit scale: -1000, Upper limit
scale: 1000
