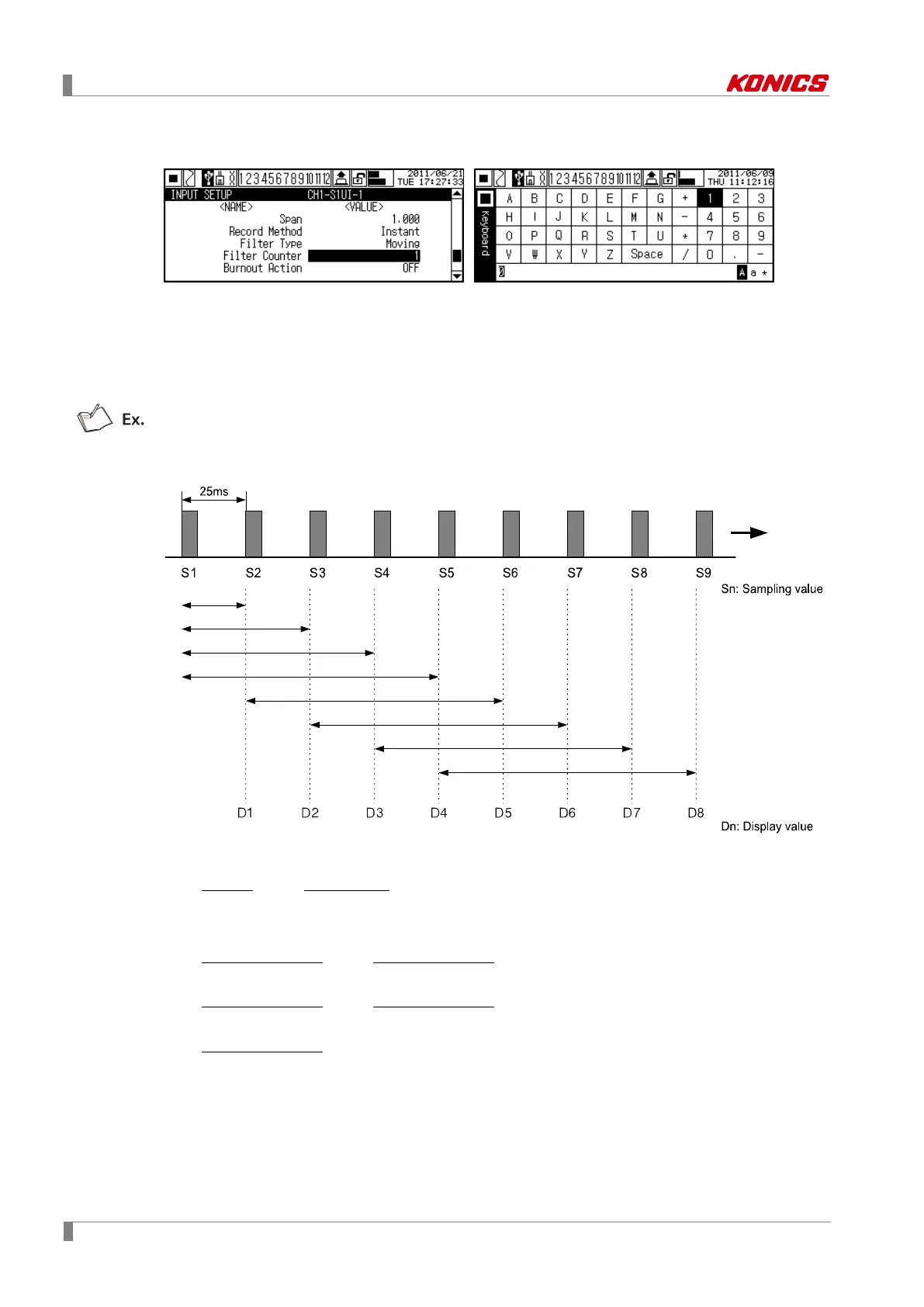

8.1.18 Filter Counter (The number of digital filter)
Designate the number of sampling which apply to digital filter.
When you set Filter Type(Input digital filter), this parameter is activated.
 Set range: 1 to 128
 Factory default: -
When the set value of input digital filter is ‘4’, it does moving average input sampling values for
0.1 sec (100ms) and displays this value.
D1=S1
D2 =
S1 + S2
2
, D3 =
S1 + S2 + S3
3
Display values of D1, D2, D3 is the initial operation before averaging 4 sampling values.
D4 =
S1 + S2 + S3 + S4
4
, D5 =
S2 + S3 + S4 + S5
4
D6 =
S3 + S4 + S5 + S6
4
, D7 =
S4 + S5 + S6 + S7
4
D8 =
S5 + S6 + S7 + S8
4
