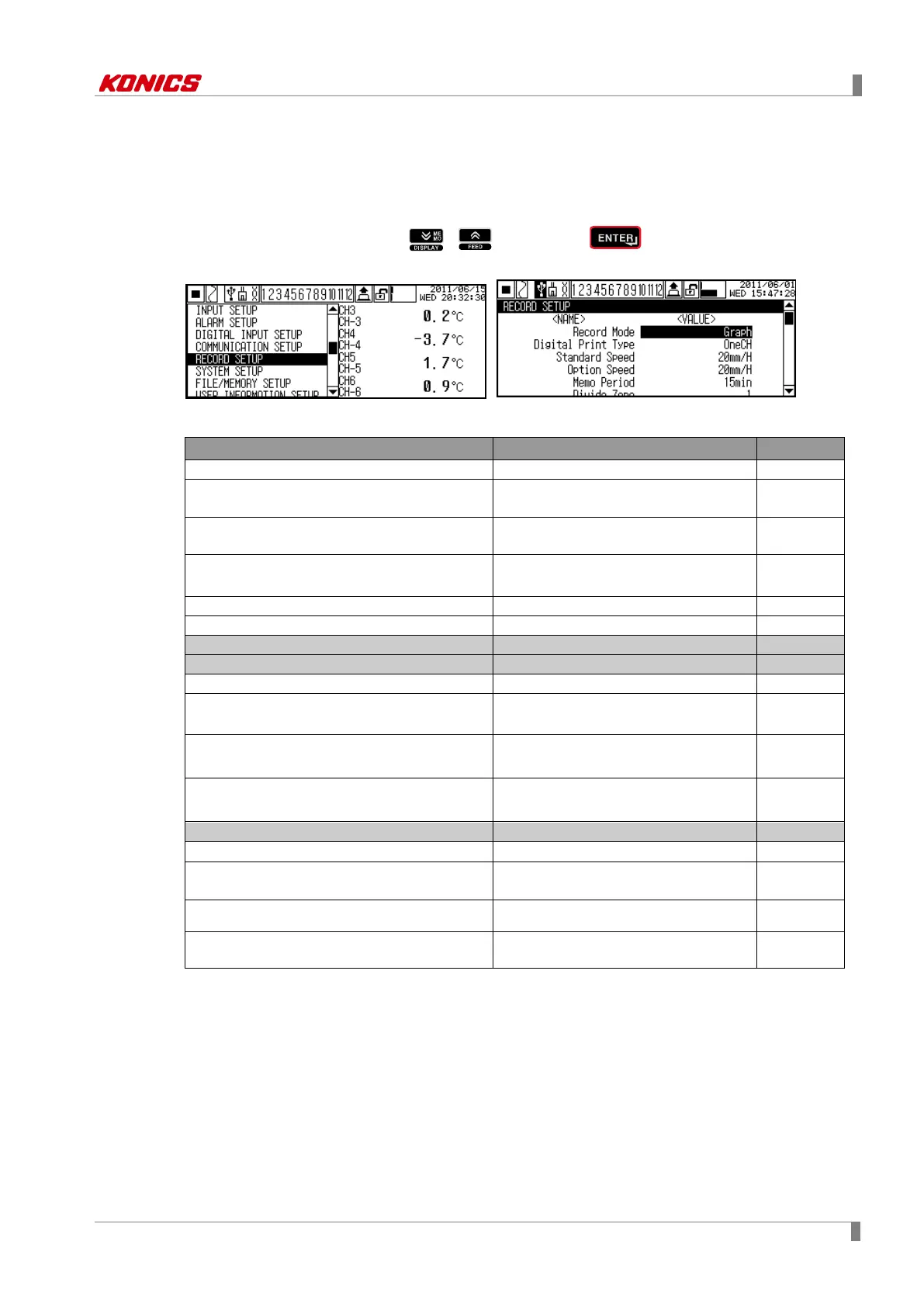

8 Parameter detail setup

8.5 RECORD SETUP (Record setting)

You can set record mode, record speed, record language, and digital memo, etc.

Depending on record mode (Digital, Graph), below parameters are changed.

Move to RECORD SETUP with , keys, press key to enter RECORD

SETUP.

 Parameter list

Parameter

Set range

Factory default

Record Mode (Recode mode) Graph ↔ Digital Graph

Digital Print type (1 line record channel during numeric

recording)

OneCH ↔ TwoCH TwoCH

Standard Speed (Standard record speed)

10 ↔ 20 ↔ 40 ↔ 60 ↔ 120 ↔ 240mm/h 20mm/h

Option Speed (Option record speed) 10 ↔ 20 ↔ 40 ↔ 60 ↔ 120 ↔ 240mm/h 20mm/h

Memo Period (Digital memo period) Refer to detail descriptions. 2hour

Divide Zone (Record zone division) None, 2 to 12 None

Standard Period (Standard record period) 00m01s to 99m99s -

Option Period (Option record period) 00m01s to 99m99s -

Listing Language (Language for list output) Korea ↔ English English

Alarm Speed (Alarm record speed) 10 ↔ 20 ↔ 40 ↔ 60 ↔ 120 ↔ 240mm/h 20mm/h

Power On Status (Record status when power ON) Hold ↔ Run ↔ Stop Hold

Run Status (List printing at start recording) OFF ↔ ON OFF

List Out Option (List record option) Standard ↔ Option Standard

Zone Dot Line Distance (Dot line for zone division) None to 8.0mm 4.0mm

CH Print Distance (Record interval for each channel

graph)

None to 100.0mm 20.0mm

Start Line Print (Start line when starting record) ON ↔ OFF ON

Range Print Time (Input range record period) Disable,1to 24 hour Disable

※ Shaded parameters are affected by set value of other parameters. Please refer to specific

descriptions of each parameter.
