8 Parameter detail setup
68 © Copyright Reserved KONICS Co., Ltd.

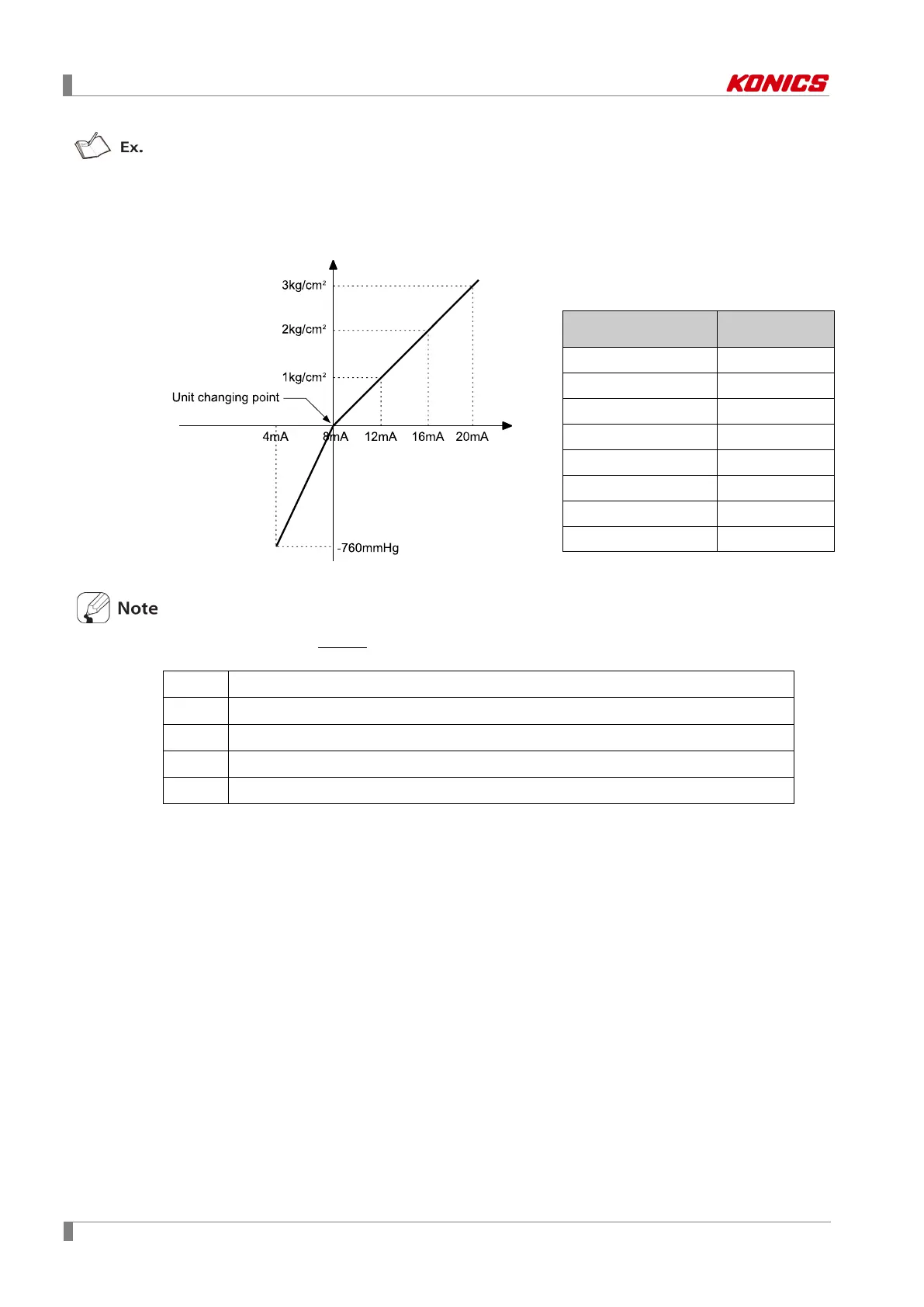

If pressure range is -760mmHg to 3kg/cm
2
, and pressure transmitter outputs 4 to 20 ㎃, for 4 ㎃
input it displays -760 mmHg, 8mA input is unit changing point. For 20 ㎃ input, it displays
3kg/cm
2
.
Unit changing point = (
16
X+1.033
× Y) + 4
16
4 to 20 ㎃ output interval
X Max. pressure range value (Ex. For 760 to
3
kg/cm
2
, it is " 3 ". )
1.033 Converted value from 760 mmHg to kg/cm
2
unit value (same unit)
Y Use pressure + 1.033 (Ex. Use pressure is ‘0’, Y is 1.033.)
4
Output value for zero, 4.00 ㎃
 Set range
In case Input Type(Input specification) is temperature sensor(thermocouple, RTD): None ↔
Difference
In case Input Type(Input specification) is analog(voltage, current): Linear ↔ Root ↔
Square ↔ Two Unit (Two Unit is activated for current input(0 to 20 ㎃, 4 to 20 ㎃).)
 Factory default: None
Range
Unit changing
point (㎃)
-760mmHg to 1kg/cm2 12.130
-760mmHg to 5kg/cm2 6.740
-760mmHg to 10kg/cm2 5.498
-760mmHg to 15kg/cm2 5.031
-760mmHg to 20kg/cm2 4.786
-760mmHg to 25kg/cm2 4.635
-760mmHg to 30kg/cm2 4.533
-760mmHg to 35kg/cm2 4.459
