Kontron CP308 - PCI Express Mini Card Connector J5 Pinout; PCI Express Mini Card Connector J5

CP308 CP308-MEDIA
ID 1027-4487, Rev. 3.0 Page B - 15
P R E L I M I N A R Y

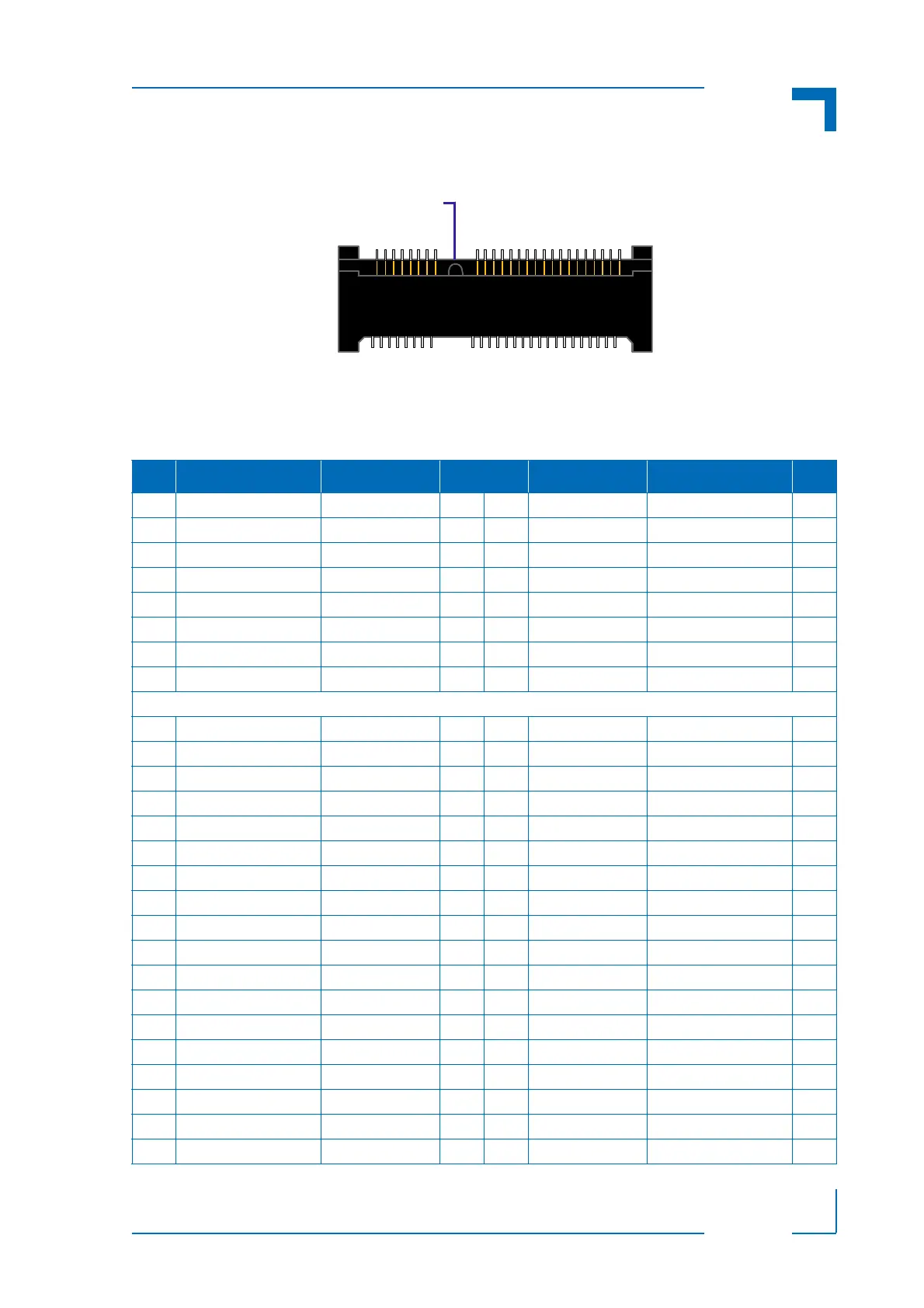

Figure B-11: PCI Express Mini Card Connector J5
The following table indicates the pinout of the PCI Express Mini Card connector J5.
Table B-8: PCI Express Mini Card Connector J5 Pinout
I/O FUNCTION SIGNAL PIN SIGNAL FUNCTION I/O
-- Not connected NC 1 2 V_3V3 Power 3.3 V (primary) --
-- Not connected NC 3 4 GND Signal ground --
-- Not connected NC 5 6 V_1V5. Power 1.5 V (primary) --
-- Not connected NC 7 8 NC Not connected --
-- Signal ground GND 9 10 NC Not connected --
O Reference Clock- CLK_PCIE_MINI- 11 12 NC Not connected --
O Reference Clock+ CLK_PCIE_MINI+ 13 14 NC Not connected --
-- Signal ground GND 15 16 NC Not connected --
Mechanical Key
-- Not connected NC 17 18 GND Signal ground --
-- Not connected NC 19 20 NC Not connected --
Signal ground GND 21 22 PCIE_RST# Reset (functional) O
I PCIe receive data- PE2_RX0- 23 24 V_3V3 Power 3.3 V (aux.) --
I PCIe receive data+ PE2_RX0+ 25 26 GND Signal ground --
-- Signal ground GND 27 28 V_1V5 Power 1.5 V (primary) --
-- Signal ground GND 29 30 SMB_ICH_CLK SMBuss clock O
O PCIe transmit data- PE2_TX0- 31 32 SMB_ICH_DAT SMBus data I/O
O PCIe transmit data+ PE2_TX0+ 33 34 GND Signal ground --
-- Signal ground GND 35 36 USB_P7- USB data- I/O
-- Not connected NC 37 38 USB_P7+ USB data+ I/O
-- Not connected NC 39 40 GND Signal ground --
-- Not connected NC 41 42 NC Not connected --
-- Not connected NC 43 44 NC Not connected --
-- Not connected NC 45 46 NC Not connected --
-- Not connected NC 47 48 V_1V5 Power 1.5 V (primary) --
-- Not connected NC 49 50 GND Signal ground --
-- Not connected NC 51 52 V_3V3 Power 3.3 V (aux.) --
2
17 51
18 52
1
mechanical key
