Page C - 12 ID 1027-4487, Rev. 3.0
CP-RIO3-04 Rear I/O CP308
CUSTOMER SPECIFIC
P R E L I M I N A R Y
C.5.6 Serial ATA Interfaces SATA4 and SATA5
The onboard Serial ATA connectors J5 and J6 allow the connection of standard HDDs and oth-
er Serial ATA devices to the CP-RIO3-04 rear I/O module. For information on the SATA ports
routing, refer to Table 2-19.
The following figure and table provide pinout information for the SATA connectors J5 and J6.
Note ...
When using a Serial ATA cable, it is recommended to use a special right-angled
Serial ATA cable due to possible space limitations within the system. For further
information, please contact Kontron.

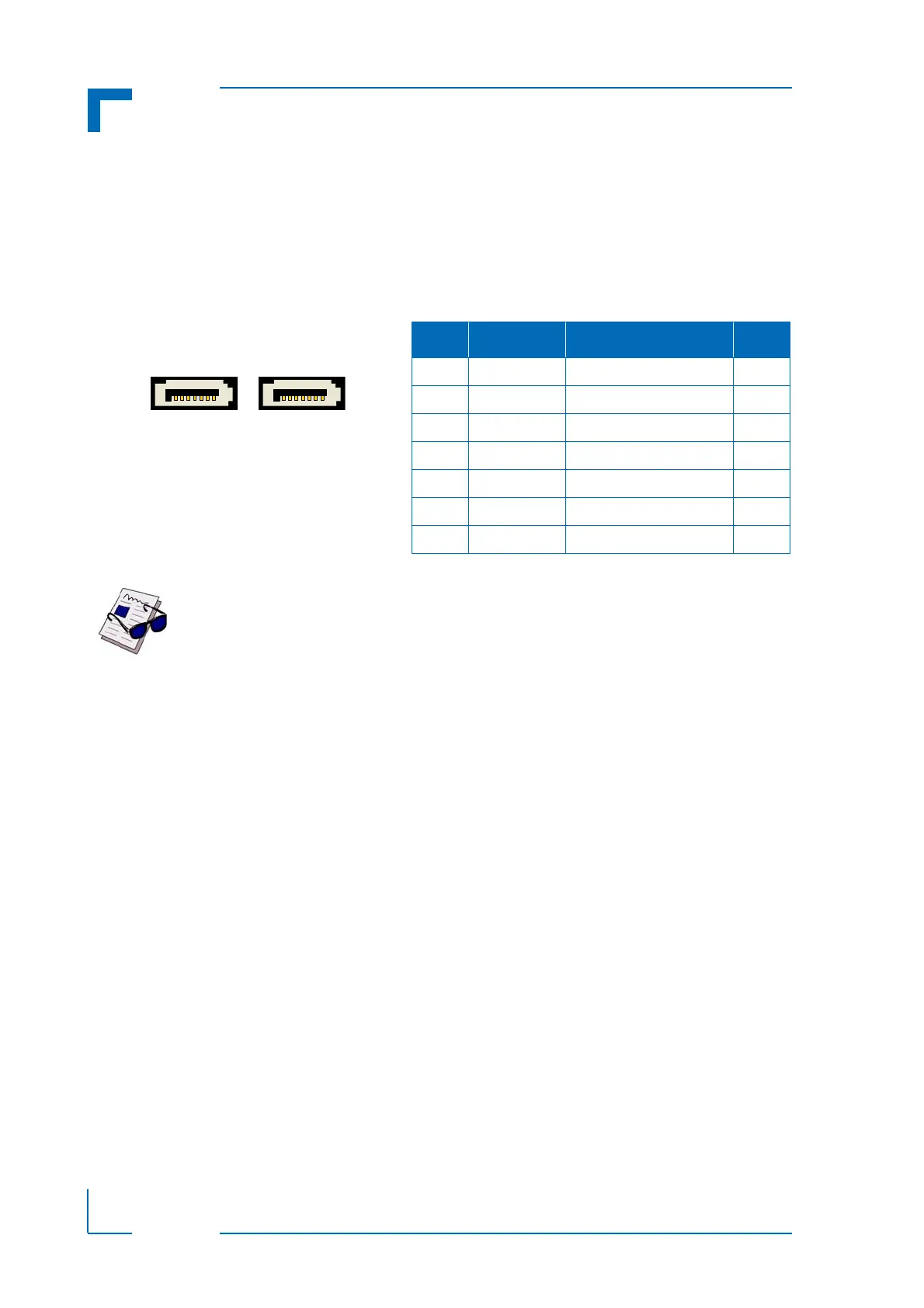

Figure C-10: SATA Con. J5 and J6
Table C-8: SATA Connectors J5 and J6 Pinout
PIN SIGNAL DESCRIPTION I/O
1 GND Ground signal --
2 SATA_TX+ Differential Transmit + O
3 SATA_TX- Differential Transmit - O
4 GND Ground signal --
5 SATA_RX- Differential Receive - I
6 SATA_RX+ Differential Receive + I
7 GND Ground signal --
