B.6.7 CompactFlash Card Socket
To enable flexible Flash expansion, a CompactFlash (CF) card type II socket, J13, is available
on the CP308-MEDIA. The CompactFlash card socket is connected to the ICH9-SFF over a
SATA-to-PATA bridge and is set to master configuration. The CP308-MEDIA supports DMA and
both CF type I and CF type II. For information on the SATA ports routing, refer to Table 2-19.

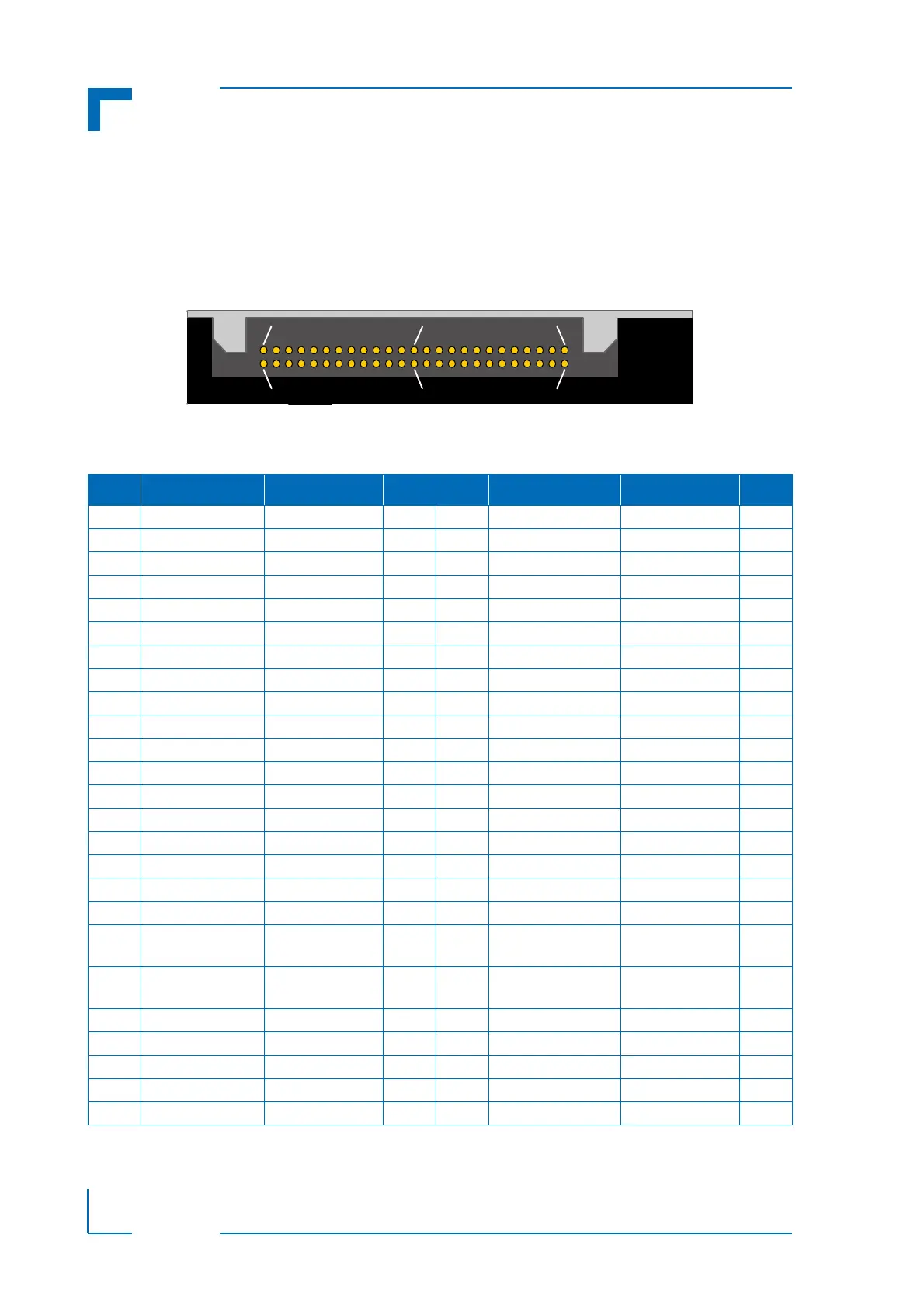

Figure B-14: CompactFlash Connector J13
The following table provides the pinout for the CompactFlash connector J13.
* Signal terminated with 10 kΩ pull-down resistor (pin 46)
Table B-10: CompactFlash Connector J9 Pinout
I/O FUNCTION SIGNAL PIN SIGNAL FUNCTION I/O
-- Ground Signal GND 1 26 NC (CD1) -- --
I/O Data 3 D03 2 27 D11 Data 11 I/O
I/O Data 4 D04 3 28 D12 Data 12 I/O
I/O Data 5 D05 4 29 D13 Data 13 I/O
I/O Data 6 D06 5 30 D14 Data 14 I/O
I/O Data 7 D07 6 31 D15 Data 15 I/O
O Chip Select 0 IDE_CS0 7 32 IDE_CS1 Chip Select 1 O
-- -- GND (A10) 8 33 NC (VS1) -- --
-- -- GND (ATASEL) 9 34 IORD I/O Read O
-- -- GND (A09) 10 35 IOWR I/O Write O
-- -- GND (A08) 11 36 VCC (WE) Power 3.3 V --
-- -- GND (A07) 12 37 INTRQ Interrupt Request I
-- Power 3.3 V VCC 13 38 VCC Power 3.3 V --
-- -- GND (A06) 14 39 CSEL (GND/pull-up) Master/Slave O
-- -- GND (A05) 15 40 NC (VS2) -- --
-- -- GND (A04) 16 41 Reset Reset O
-- -- GND (A03) 17 42 IORDY I/O Ready I
O Address 2 A02 18 43 DMARQ DMA Request I
O Address 1 A01 19 44 DMACK DMA Acknowl-
edge
O
O Address 0 A00 20 45 DASP Drive Active
Slave Present
I/O
I/O Data 0 D00 21 46 PDIAG#/ CBLID#* -- --
I/O Data 1 D01 22 47 D08 Data 08 I/O
I/O Data 2 D02 23 48 D09 Data 09 I/O
I/O Obsolete IOCS16 24 49 D10 Data 10 I/O
-- -- NC (CD2) 25 50 GND Ground Signal --
