C.5.2 VGA Interface
The 15-pin female connector J7 is used to connect a VGA monitor to the CP-RIO3-04 rear I/O
module.

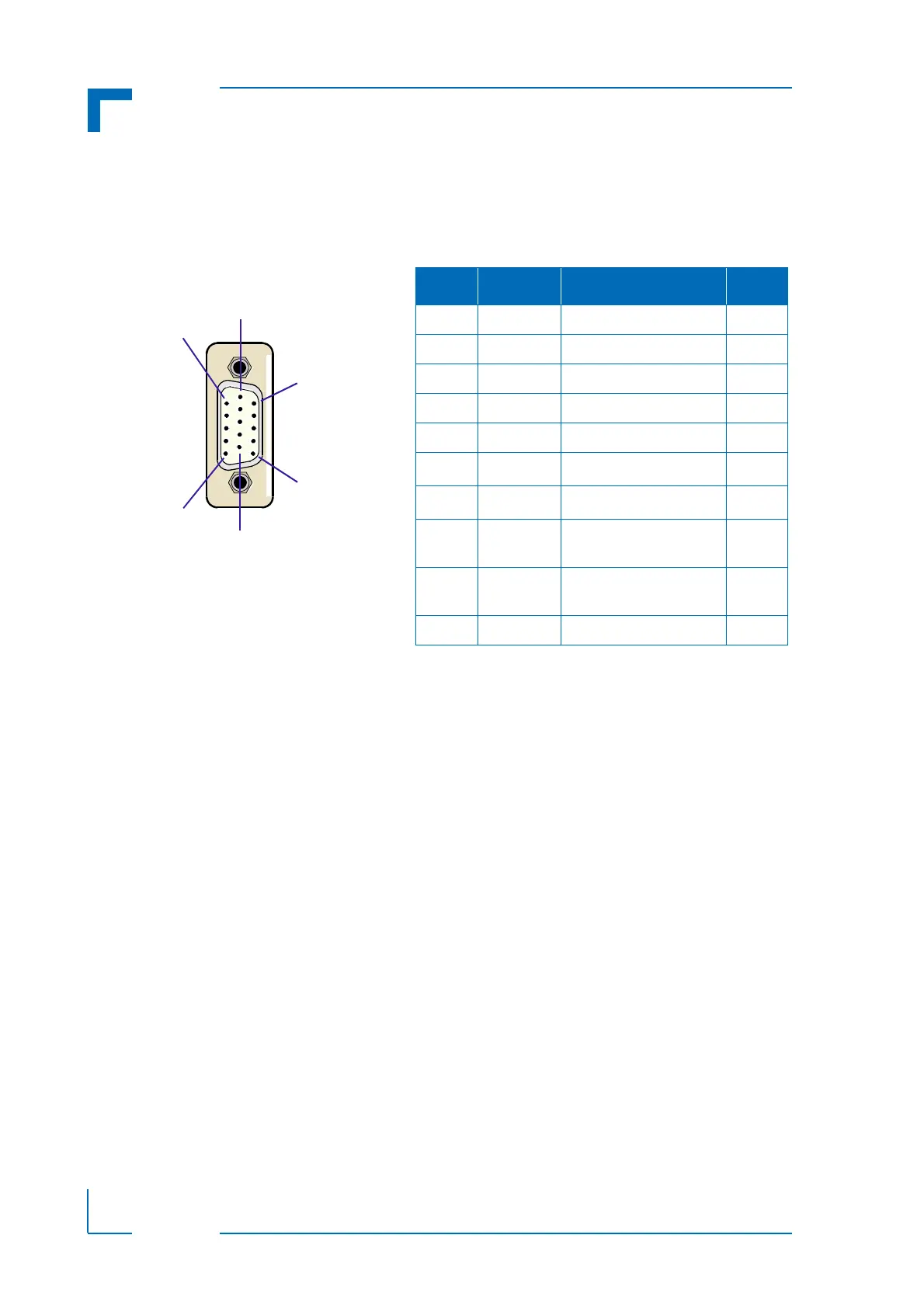

Figure C-5: D-Sub VGA Connector J7
15
6
10
11
1
5
Table C-3: D-Sub VGA Connector J7 Pinout
PIN SIGNAL FUNCTION I/O
1 Red Red video signal output O
2 Green Green video signal output O
3 Blue Blue video signal output O
13 Hsync Horizontal sync. TTL Out
14 Vsync Vertical sync. TTL Out
12 Sdata
I
²
C data
I/O
15 Sclk
I
²
C clock
O
9 VCC Power +5V, 140 mA fuse
protection
O
5,6,7,8,
10
GND Ground signal --
4,11 NC -- --
