Kontron CP308 - USB Device Installation; USB 2.0 NAND Flash Module Installation

Installation CP308
Page 3 - 10 ID 1027-4487, Rev. 3.0
P R E L I M I N A R Y

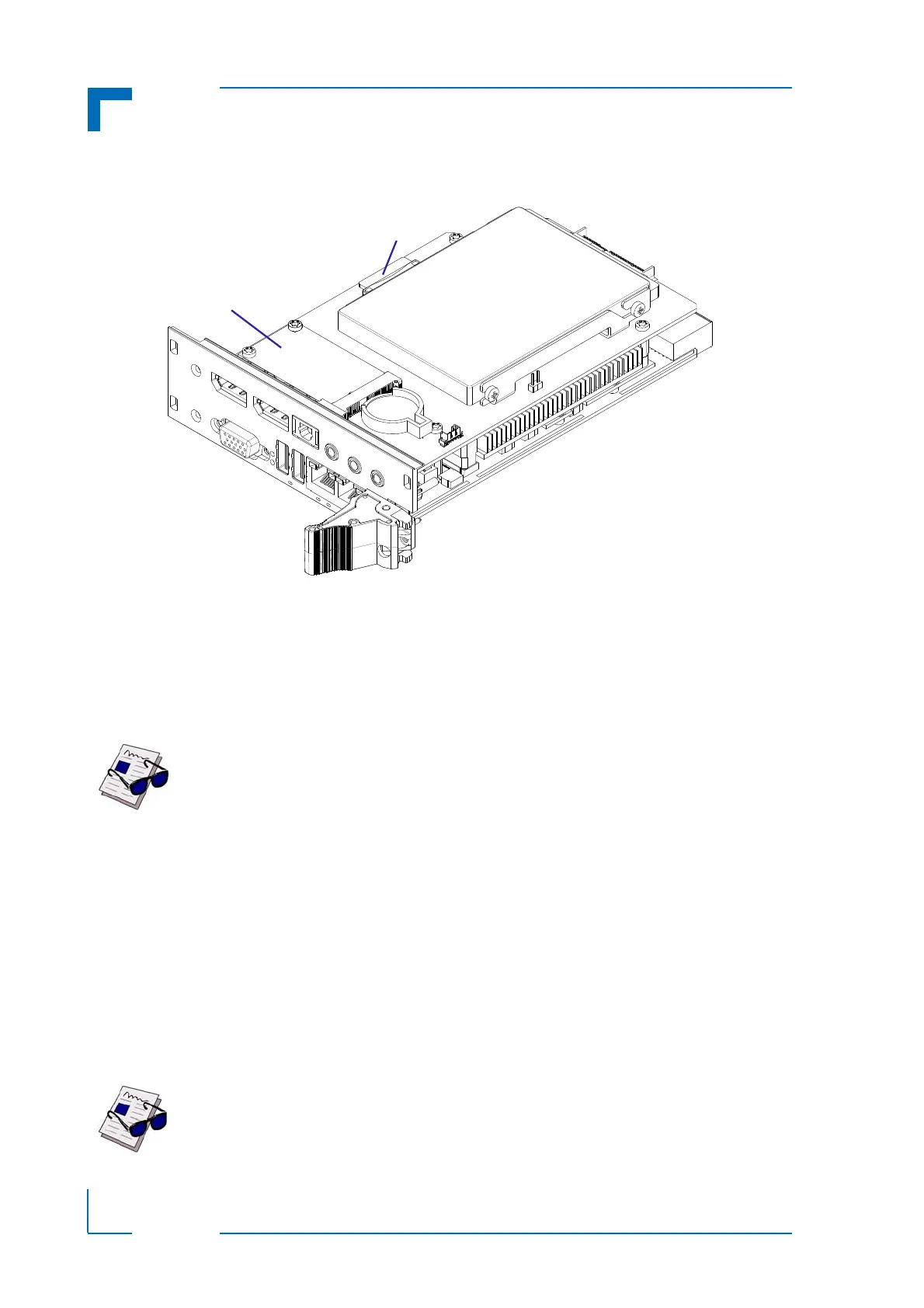

Figure 3-3: Connecting a Peripheral Device to the 8HP CP308 with CP308-MEDIA
The following chapters provide information regarding installation aspects of peripheral devices.
3.5.1 USB Device Installation
The CP308 supports all USB Plug and Play computer peripherals (e.g. keyboard, mouse,
printer, etc.).
3.5.2 USB 2.0 NAND Flash Module Installation
A USB 2.0 NAND Flash module may be connected to the CP308 or the CP308 -HDD module via
the onboard USB 2.0 NAND Flash connector, J14.
This optionally available module must be physically installed on the CP308 prior to installation
of the CP308 in a system.
During installation it is necessary to ensure that the USB 2.0 NAND Flash module is properly
seated in the onboard USB 2.0 NAND Flash connector, i.e. the pins are aligned correctly and
not bent. To ensure a correct installation of the USB 2.0 NAND Flash module on the CP308, a
special low-profile screw with the corresponding stand-off bolt from Kontron must be used. Do
not use any other screws or stand-off bolts as they may cause improper installation.
Note ...
All USB devices may be connected or removed while the host or other
peripherals are powered up.
Note ...
Only qualified USB 2.0 NAND Flash modules from Kontron are authorized for
use with the CP308 or the CP308-HDD. Use of unqualified USB 2.0 NAND
Flash modules or improper installation will void the warranty and may result in
damage to the board or the system.
PCI Express
Mini Card
2.5” Serial ATA HDD/SSD
SD/SDHC
Card
