Kontron CP308 - Front Panel

CP308 Introduction
ID 1027-4487, Rev. 3.0 Page 1 - 7
P R E L I M I N A R Y
1.3.2 Front Panel

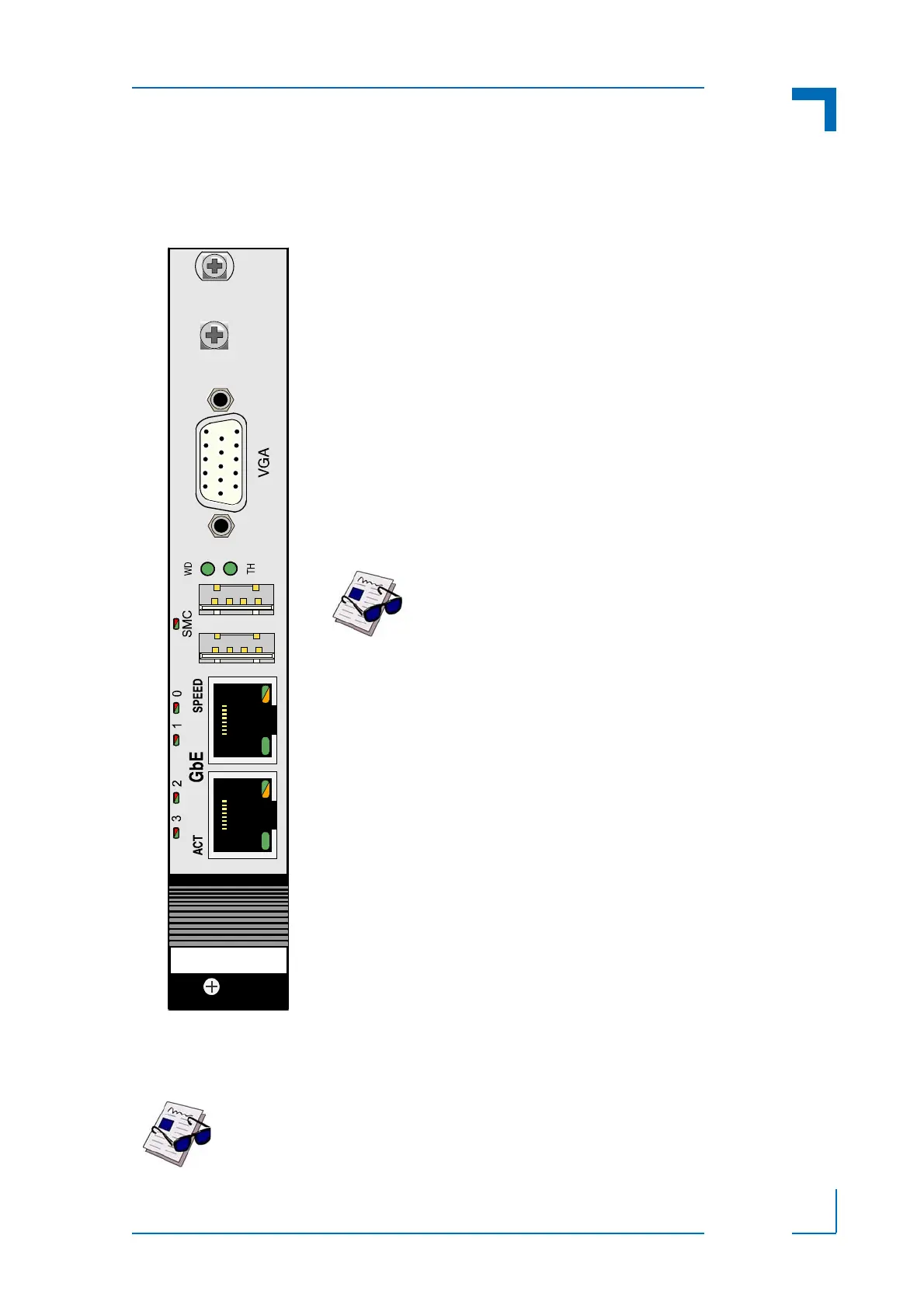

Figure 1-2: 4 HP CP308 Front Panel
Note ...
For information regarding the front panel of an 8HP CP308, refer to Appendix A,
CP308-HDD Module and Appendix B, CP308-MEDIA Module.
CP308
USB 2.0
LEGEND:
Watchdog and Overtemperature Status LEDs:
WD (green): Watchdog Status
TH (green): Overtemperature Status
System Management Controller LED:
SMC LED (red/green/red+green): System Management Controller
Status
General Purpose LEDs:
LED 0..3 (red/green/red+green): General Purpose/POST Code
Integral Ethernet LEDs:
ACT (green): Ethernet Link/Activity
SPEED (green/orange): Ethernet Speed
SPEED ON (orange): 1000 Mbit
SPEED ON (green): 100 Mbit
SPEED OFF: 10 Mbit
Note ...
If the General Purpose LEDs LED 0..3 are lit red
during boot-up, a failure is indicated before the
uEFI BIOS has started.
For further information, please contact Kontron.
