Installation

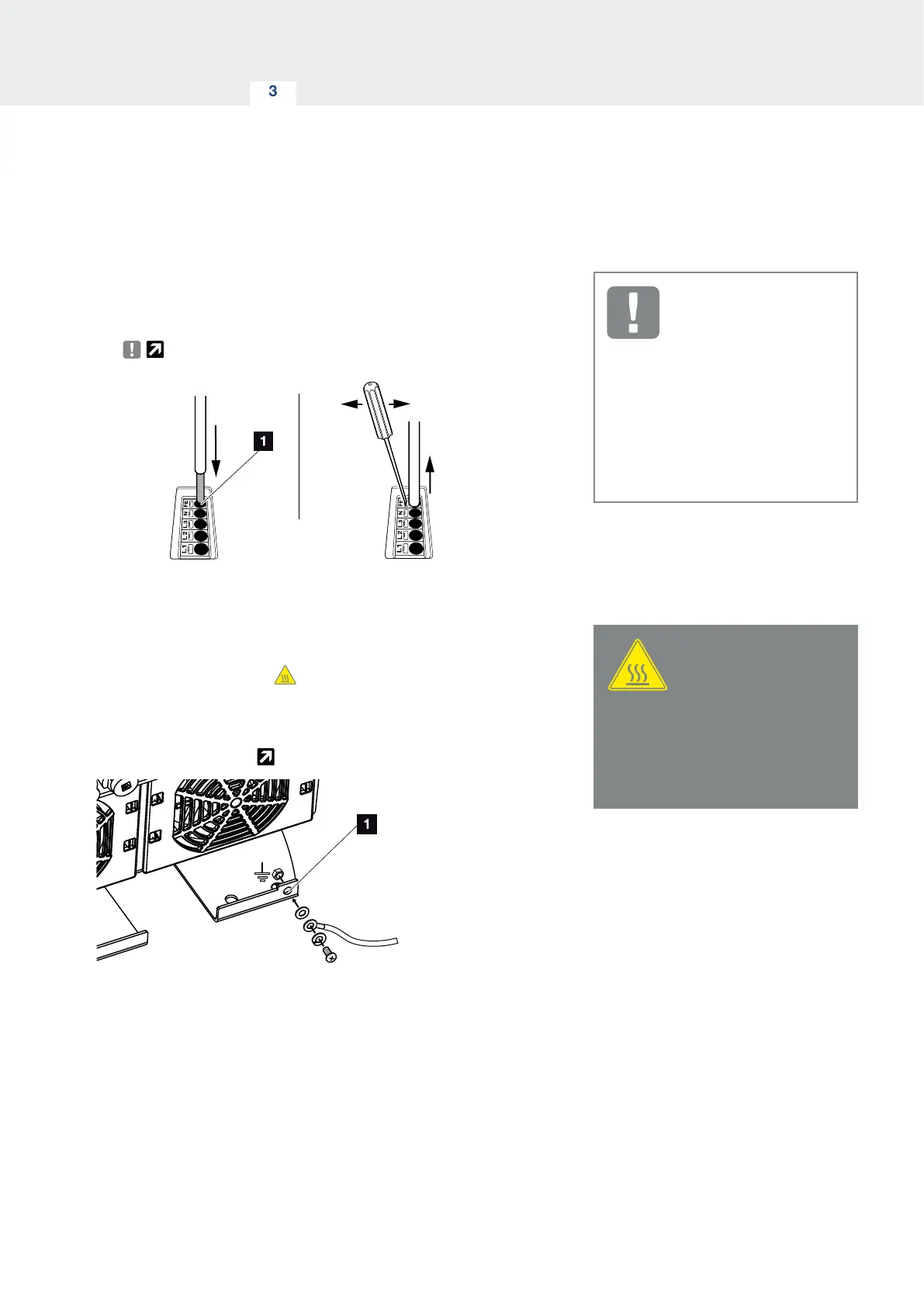

9. Connect the wires of the mains cable to the AC
terminal in accordance with the labelling.
Fig. 22, It. 1
1.
2.
Fig. 23: Spring-loaded terminal strip
10. Install a line circuit breaker into the mains cable
between the inverter and the feed meter to secure it
against overcurrent.
11. In countries in which a second PE connection is
prescribed, connect this at the marked place on the
housing (outside).
Fig. 24, It. 1
Fig. 24: Country-specific PE connection, outside
H
The AC connection is connected.
IMPORTANT
INFORMATION
To connect the AC cables, the in-
verter is equipped with spring-load-
ed terminal strips. The wires should
be inserted into the large round
openings (It. 1) of the terminal.
The wire stripping length is 18 mm.
Core end sleeves should be used
with stranded cables.
WARNING
RISK OF FIRE DUE TO OVER-
CURRENT AND HEATING OF THE
MAINS CABLE!
Install line circuit breaker to secure
against overcurrent.
