3.55 Working with an attachment adapter (option)
Installing and removing an attachment adapter
Before starting work, ensure that the attachment is safely locked onto the
quickhitch by means of the lock ram.
☞You must be able to see the lock pins on either side of the mounting holes
on the attachment!
Install, connect the hydraulic hoses and remove the adapter from the quickhitch in the
same way as a multipurpose bucket.
➥–seeInstalling a multipurpose bucket and hydraulic attachments on page 3-84
Using an attachment adapter with an attachment from another manufacturer
When fitting attachments from other manufacturers onto the attachment
adapter, the dimensions (length/width), material density and loads of these
attachments must be in compliance with the National Type Approval or Data
Confirmation (Germany) and must meet the requirements indicated on page
1-12 “Fields of application and using the wheel loader with an attachment”!
☞Pallet forks = safety factor = S 1.25/S 1.67
(see load diagram affixed on machine frame)
☞Buckets = safety factor = S 2.0
If the attachments are not in compliance with the National Type Approval, a
Separate Certification for Vehicles (Germany) made out by the competent
authorities, is required.
Get informed on and follow the legal regulations of your country

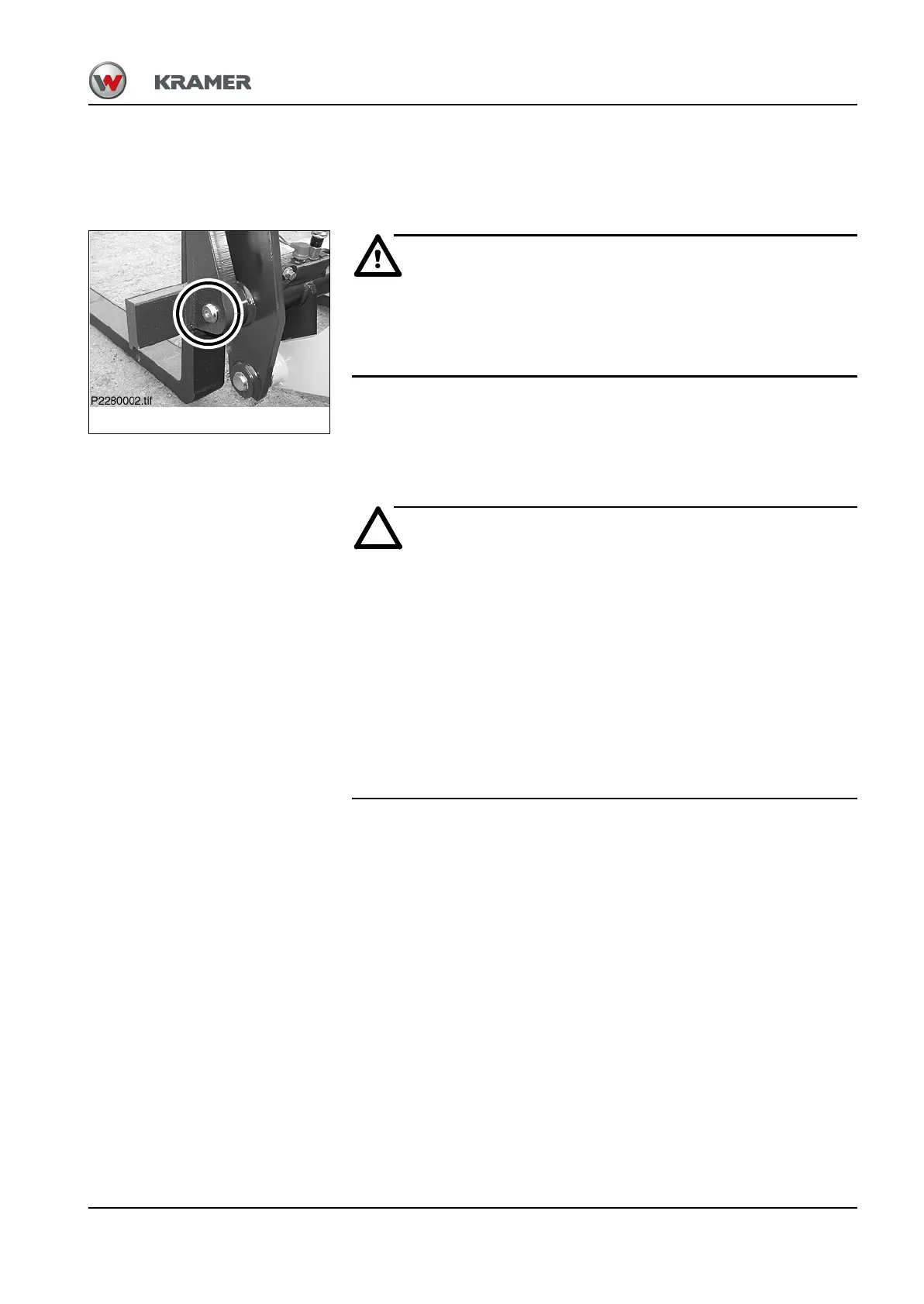

Fig. 147 : Checking the lock pins
