Operation 3
Getting ready for towing
Connecting the high pressure lines to the variable displacement pump of the travelling
drive
☞Lower the loader unit to transport position
☞Stop the engine
☞Secure the machine to prevent it from rolling away (wheel chocks)
☞Switch off ignition and remove the ignition key
☞Connect the high pressure lines (forward/reverse) on the valve block test ports F and R
with hose D
➥The hose is included in the tool kit
Releasing the wheel motor brake discs
☞Remove plastic plug A (front axle on left and right)
☞Place 2 flat bars (160 x 50 x 15 mm) with bores (ø 12.5 mm) on the brake housing B
➥Flat bars are included in the tool kit
☞Screw a hexagon head screw (M 12x40) and a washer into brake plate C about 2 – 3
revolutions
➥The spring brake actuator system is open
➥The drive shaft must turn freely

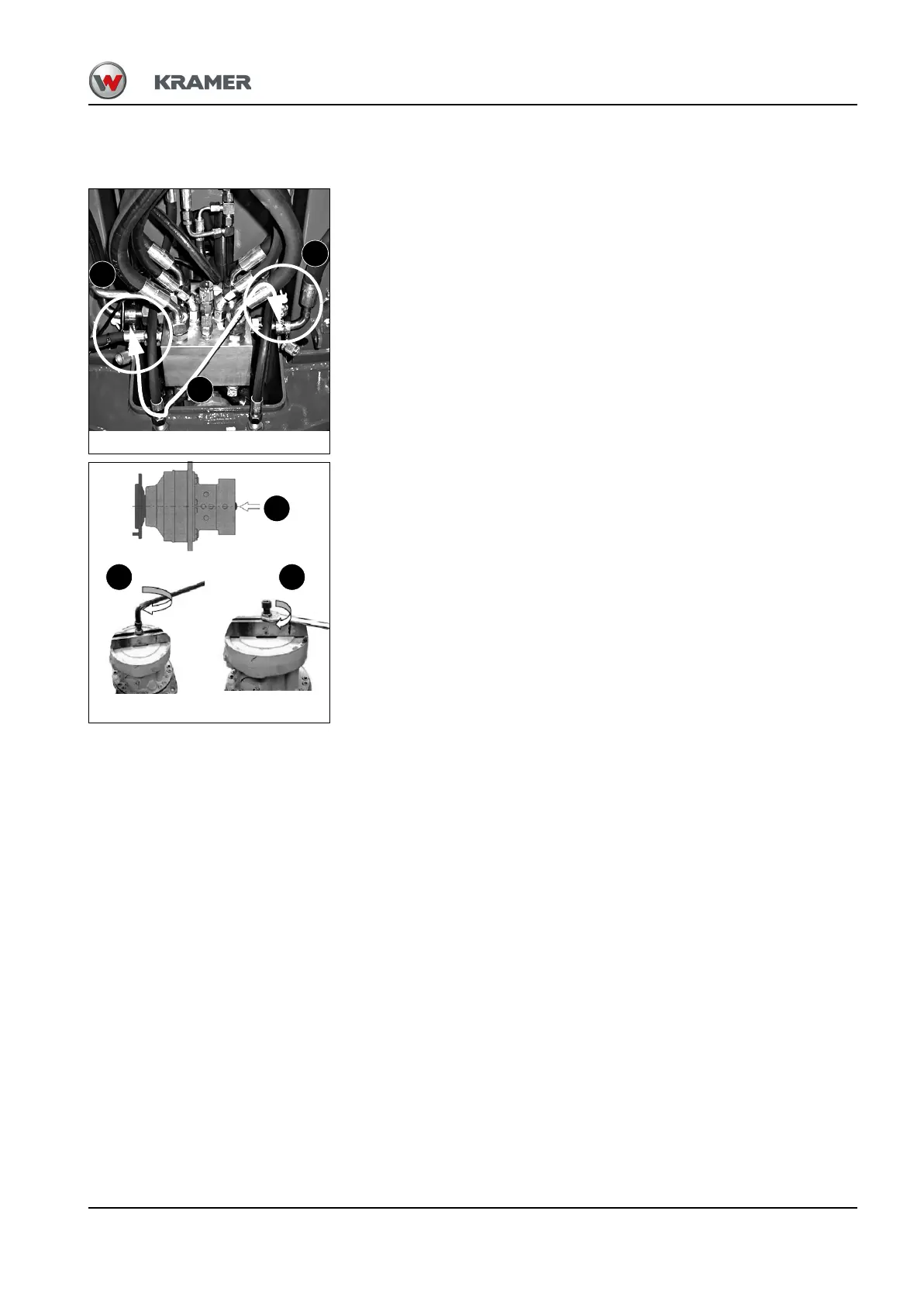

Fig. 154 : Disabling the hydraulic pump
V
R
D
Fig. 155 : Disabling the parking brake
A
B C
