5-24 BA 348-01 * 2.0 * 34801b510.fm
5 Maintenance
5.13 Heating and ventilation system maintenance
Important notice on the heating and ventilation system
The heating system of the machine is equipped with a fine-dust filter.
The fresh air drawn in by the heater fan is cleaned by the fine-dust filter.
The volume of warm air flowing out of the air vents decreases as filter contamination
increases: the fine-dust filter must be cleaned as required, however it must replaced
every 500 operating hours at the latest!
Health hazard! In order to comply with the required safety measures
regarding occupational safety and health, malfunctioning or dirty fine-dust
filters must be replaced by new ones!
Cleaning/replacing the fine-dust filter (up to date of construction 42/2013)
The fine-dust filter is located at the bottom behind the steering column trim.
Clean the filter as follows:
☞Remove the right-hand trim A (steering column)
☞Remove the knurled screws and bracket C of the fine-dust filter
☞Remove fine-dust filter B and check it for damage
☞Knock the fine-dust filter on a plate on either side. If necessary, blow compressed air
from the inside to the outside to clean the filter, or wash it with water and allow to dry
➥Replace the fine-dust filter every 500 o/h (service hours) by a new one
➥Replace the fine-dust filter more frequently if the machine is used in severe dust
conditions
☞Clean the inside of the filter housing (with compressed air, wash it if necessary)
☞Insert fine-dust filter B and install the bracket with knurled screws C
➥Ensure that it is positioned properly
☞Install trim A

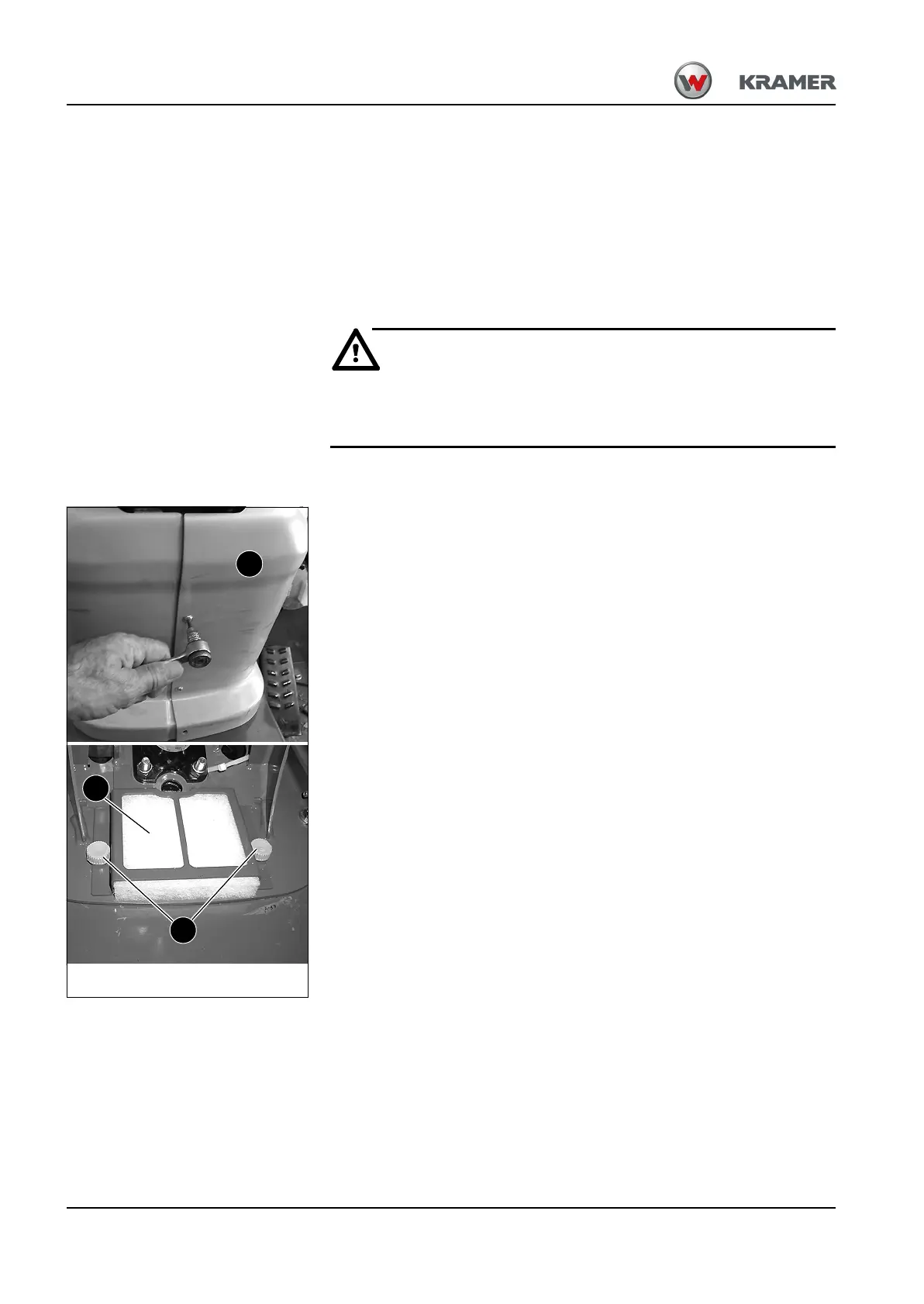

Fig. 186 : Fresh-air fine-dust filter
A
C
B
